1. Product description :
Lantian series box dryer for charcoal is the most popular and suitable dryer for different kinds charcoal and coal briquettes, bbq charcoal, shisha charcoal,coal briquettes, etc.It mainly includes three draught fans, six handcarts(trolleys), temperature controller, heater, electricity board. It adopts hot air standard cycle working principle to eliminate moisture in the wet materials gradually, not instantly. In the middle of box dryer, there is a heating source stove,on the upper of stove, there are two fans, so they can disperse hot air to drying chambers on both sides. This box dryer has two drying chambers, every chamber can be divided into three small parts.

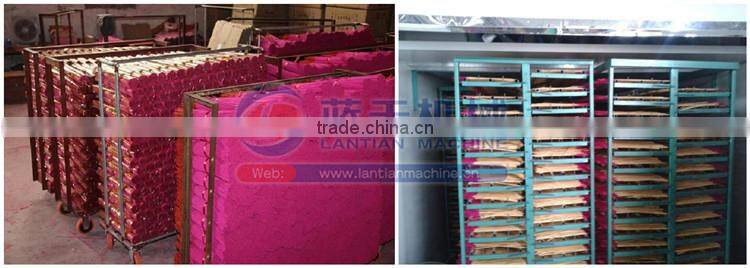

2.Photo display:
ing principle
Using biomass fuel/coal/charcoal or electricity to make hot air for box dryer then using draught fan to provide tremendous pressure for box dryer.Tremendous pressure make hot air into drying cabinet and make hot air recycle in box dryer's cabinet. Hot air is released through small holes in the shelves. Each small room in the box dryer has 14 layers.(box dryer)
4. The inner structure
5. The process of the production:Technical parameter of charcoal briquettes drying oven
Model | KHWD6 | KHWD8 | KHWD10 | KHWD12 | KHJWD16 | KHWD20 | KHWD24 | KHWD30 |
Width of mesh belt(mm) | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 | 3000 |
Length of drying section(m) | 6-12 | 6-12 | 6-16 | 8-16 | 8-22 | 10-26 | 12-30 | 12-40 |
Length of feeding section(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
Length of transmitting section(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
Drying area(m2) | 3.6-36 | 4.8-48 | 6-80 | 7.2-96 | 12.8-105.6 | 20-260 | 28.8-360 | 36-600 |
Layers NO. | 1-5 | |||||||
Interlamellar spacing (mm) | 400-600 | |||||||
Carrying capacity | 90-200 Kg/m2 | |||||||
Operation temperature (°C) | carbon steel≤400 C°,stainless steel≤600 C° | |||||||
our service:
1. Pre-sales service:
1). sales person, project manager, technology engineer, accountant staff.
2). pofessional responding team: would be very fastly and exactly to send you offer.
3). choose suitable machines and make producing plan according to the raw materials, final shapes and output capacity.
2. After-sales service:
1). assistance to build factory.
2). repairing and maintain if any problems occur in the warranty.
3). supply spare and wearing parts of our machines.
