a) Definition of organic fertilizer pellet mill
Organic fertilizer pellet mill is also named as pellet making mill, biomass pellet mill, wood
sawdust pellet mill, straw pellet mill, stalk pellet mill, leaves pellet mill, etc. Organic fertilizer pellet mill is used to squeeze fine organic powder into pellets. Final pellet's length can be 3-8cm, organic fertilizer pellet can be 1-3cm in diameter, pellet's density is 1.3-1.8g/cm³; final pellet's calorific value is about 3000-5500 Kcal.(organic fertilizer pellet mill)b) Features of organic fertilizer pellet mill
♥ Organic fertilizer pellet mill has very large production capacity.
♥ Organic fertilizer pellet mill has no easy wearing spare parts.
♥ Organic fertilizer pellet mill is quite durable, its mold can work at least 3 years.
♥ Organic fertilizer pellet mill is the most environmental
c) Application of organic fertilizer pellet mill
♥ Biomass fuel.♥ Fertilizer.♥ Fish bait.♥ Animal fodder.
d) Application raw material of organic fertilizer pellet mill
♥ All kinds of wood wastes, such as wood sawdust, wood chippers, wood shavings.
♥ All kinds of tree branches, roots, barks.
♥ All kinds of fruit shells, such as coconut shell, peanut shell, palm shell, etc.
♥ All kinds of plant straw, such as rice straw, wheat straw, etc.
♥ All kinds of plant stalk, such as cotton stalk, sorghum stalk, etc.
♥ All kinds of leaves, dry grass, etc.
♥ All kinds of fruit husk.
e) parameter of organic fertilizer pellet mill
item number(model) | output(kg/h) | power(kw) | specifications (mm) | weight(kg) | size (mm) |
SKJ350 | 400-500 | 30 | Φ 6-15 mm | 800 | 1650*800*1350 |
SKJ450 | 650-750 | 37 | Φ 6-20 mm | 1300 | 1700*800*1450 |
SKJ550 | 850-1000 | 55 | Φ 6-30 mm | 2200 | 1400*750*1650 |
SKJ800 | 1500-2000 | 90 | Φ 6-30 mm | 3800 | 2250*1250*2200 |
SKJ1000 | 2000-2500 | 110 | Φ 6-30 mm | 5000 | 2350*1150*2200 |

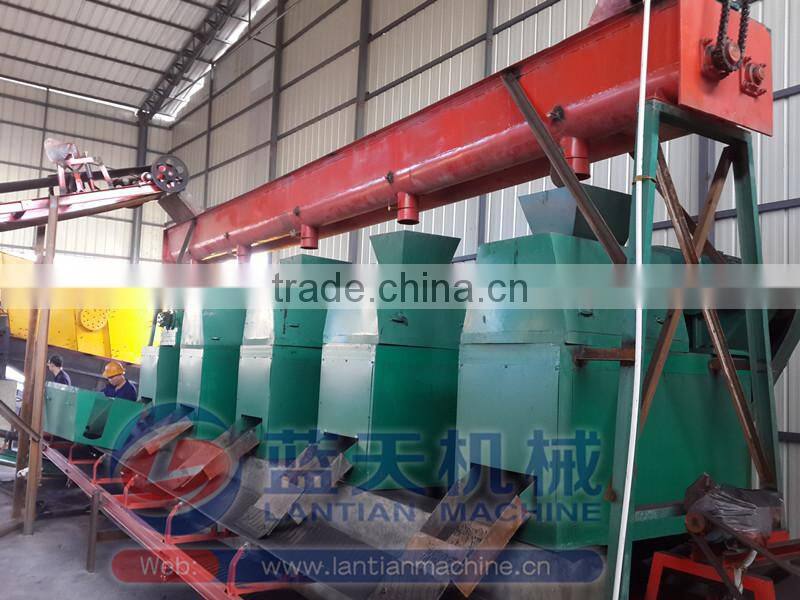

f) The whole production line of organic fertilizer pellet mill
Step 1---Crushing process – Hammer mill
The best material diameter for supporting to produce pellet is 1-5mm. Thus if your material's diameter exceed 5mm, then you need crushing machine to crush and grind them into small powder 1-5mm for supporting to produce pellets. Our SFSP series chipping and crushing machine is your best choice. It mills raw material like tree branch, wood shavings, wood chips, wood logs, cotton stalk, wheat straw etc, with size less than 30mm (diameter). After milled, the output size can reach diameter 3-5 mm, then it is pushed to next process to get dried and pelletized.
Step 2----Drying process – Rotary Dryer
The best moisture content to pelletizing is about 11-17%. Our rotary dryer is made up of
burning stove and main rotary dryer which is high efficiency in drying the wood and biomass material. It can realize to reduce the moisture from 50% to 10%. The rotary dryer uses steam to heat air and contact material to remove certain degree of moisture. It is very important for wood pellet plant to using moisture detector which will determine the most suitable moisture before pelletizing.
Step 3----Pelletizing pocess -Organic fertilizer pellet mill
Organic fertilizer pellet mill is the most important part of whole production line, it has reliable running performance. It is special designed for compacting of wood, straw, and other biomass source into pellets. Capacity ranges from 1T to 10T per hour
Step 4----Cooling process - Pellet cooling machine
Usually after pelletizing, the temperature of wood pellets is between 60-80 degrees and the moisture content is close to 15%. For storage purposes, a cooler must be used to reduce their surface temperature and the moisture content, also help screen good and pure pellets.
Step 5----Packing process - Pellet packaging machine
After cooling process, the wood pellets will not directly enter into the fuel process, avoiding the wood pellet affected with damp, the packing process is very necessary. The packing process is effectively handled by our Semi-Auto Packing Machine
