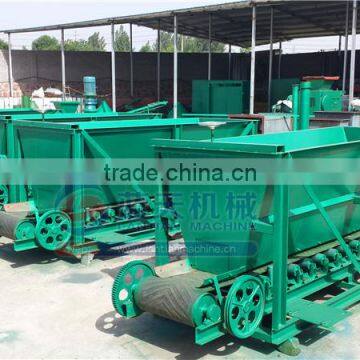

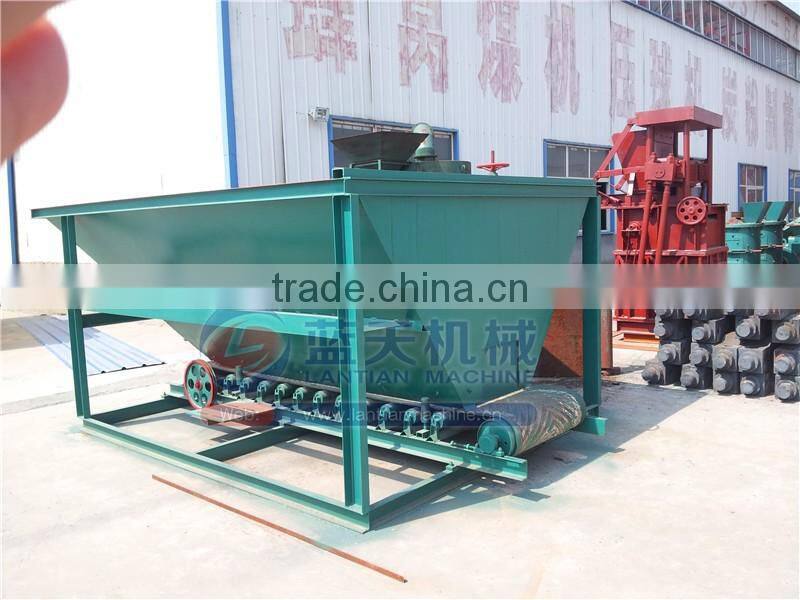

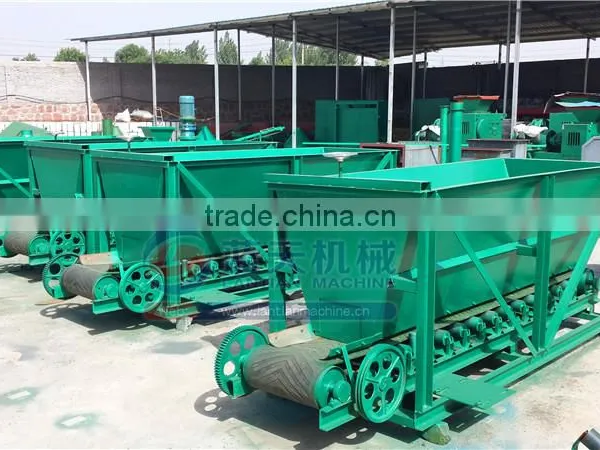

Automatic Feeder charcoal tablets making machine

 ♦ Product description of charcoal briquette  machine

1) Lantian brand bamboo charcoal briquette machine is mainly used for pressing powder material.

2) Such as, coal powder, charcoal powder, coke powder, carbon black powder, brown coal, many mineral powder, etc. It also can be biomass materials and agricultural materials like all kinds of straw, sawdust, wood, branches, shells, husks, biogases etc as raw materials to produce charcoal briquettes.The final production can be press into round, square and flower shapes, etc.

About the  Installation and maintenance

1. Firstly, you need to put the mahcines evenly and firmly fixed on the concrete ground.

2. Cleaning all the machines about the oil dirties and sundry, then turn on every machine, filling grease in the movement sections.

3. Checking whether the screws of every parts have been loosen.

4. Adjusting the location and gap of rotation, and punching, etc, every part, after they are well adjusted, fixed the pulley by hands, to ensure each part function properly.

5. The host pulley turned to turn as the clockwise like. Forbidden to reverse, you'd better to try the rotation directly of motor by removing the pulley before start running.

If you need, our technicians can guide the installation to your factory. Of course, if you want to install them by yourself, we will offer picture, documents, video to tell you how to do it.

♦ Working principle of bamboo charcoal briquette press machine

 Structure and principle of the machine structure is simple, into the body, rotating, feeding, punching, conveying five parts. Each part of mutual cooperation, coordination, smooth operation.

1. The body parts: by the bedplate, base composition, open into machine skeleton entity.

2. transmission part :pulley, gear, shaft and other parts. Motor through the pulley to rotate the gear shaft and through the two gear to the shaft, and by a pair of bevel gear and the axis of rotation drive the dial, dial BoZhuan to four panel movement.

3. Feed: consists of shaft, hopper, mixer, it consists of axial gear toggle mixer, coal will stir and load cylinder.

4. Stamping part mainly has four pole, sliding beam, punch, punch, punch, springs, pressure plate, activities mould bottom. When the machine is regulated by two gears by rod drives the slide beam, punch down, forcing the punch down, activity set up spring austerity, and washing coal into coal pressure forming, forming loose coal, by the spring compression pressure plate of the event, the coal is determined by pressure.

5.Transmission part is composed of conveyor frame, pulley, stents and conveyor belt. Random rotation to send the body shaped coal conveyor belt, conveyor frame elastic adjustable screw conveyor belt can be adjusted.

  ♦ Raw materials

It can be coal powder, charcoal powder, coke powder, carbon black powder, brown coal, many mineral powder, etc. It also can be biomass materials and agricultural materials like all kinds of straw, sawdust, wood, palm branches, shells, husks, biogases etc as raw materials to produce charcoal briquettes.

♦ Technical Parameters for bamboo charcoal briquette machine

We also have new model number for big capacity and easy to operated.

♦Shape of final products

 ♦Whole bamboo charcoal briquette production line

About coal briquettes making machine, we have few diffierent types, include honeycomb briquette machine, ball press machine,shisha charcoal machine and extruder briquette machine. No matter what kind of machine is your interest, we can design the right production line for you.

 Our service

1. Before Sale: help you to set a purchase plan according to your requirement

2. During Sale: accompany you to check the performance of the machine; train technical  stuff for you

3. After Sale: Sent artisan to your place and help you with the installation

♦ Installation and Technical Service

To ensure the machine good working in customer site, it is suggested that customer send workers to accept the training about how to work with machine, how to solve frequently asked problems, how to replace spares etc. In this way can we ensure the good working and give warranty of 1 year for the machine. Or we can send you our technician to customer side to help customer set up the machine and train your workers.
