Waste Motor Rotor Crusher
Working principle of waste motor rotor crusher :
Material fall into the high speed rotating impeller vertically, under the action of centrifugal force , and will produce high speed impact and smash with another part of material which distribute in umbrella form around that impeller , after such a kind of hitting each-other, they will smash due to multiple impact and friction between impeller and machine casing (eddy generation), and then discharge directly from lower location .
Forming a closed multiple circulation , via a vibrating screen to control the fineness of finished product you need. (size of finished iron block and copper wire are adjustable )
Application :

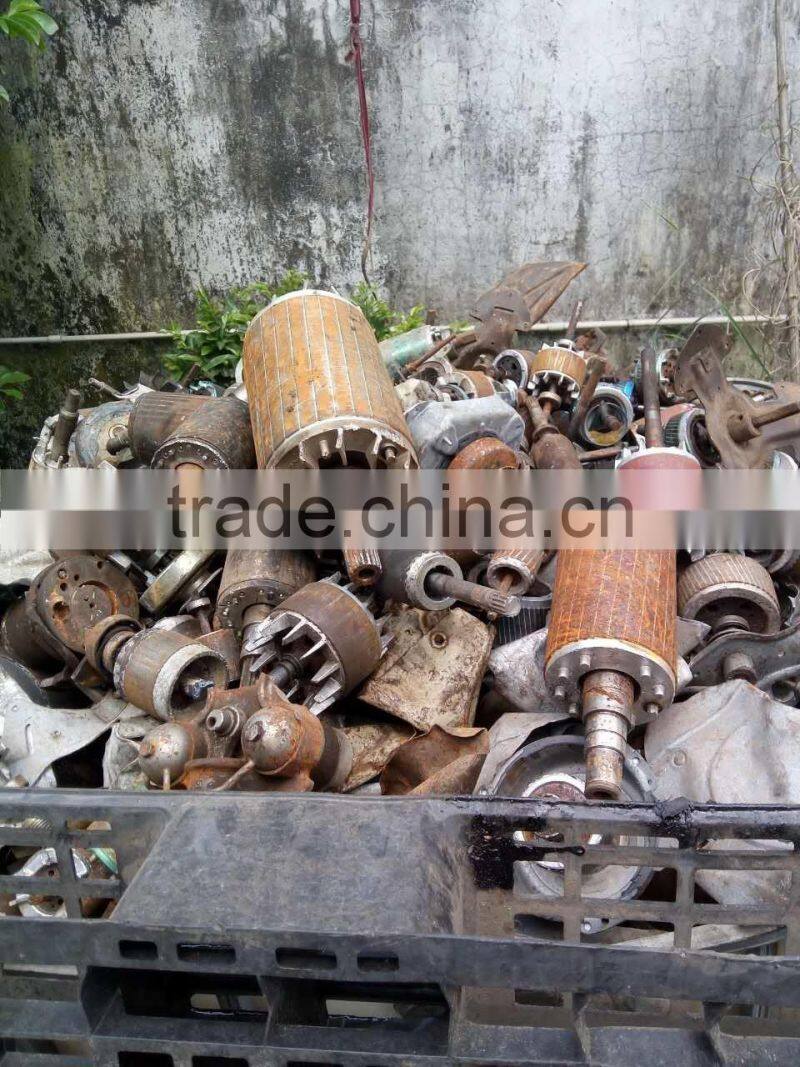

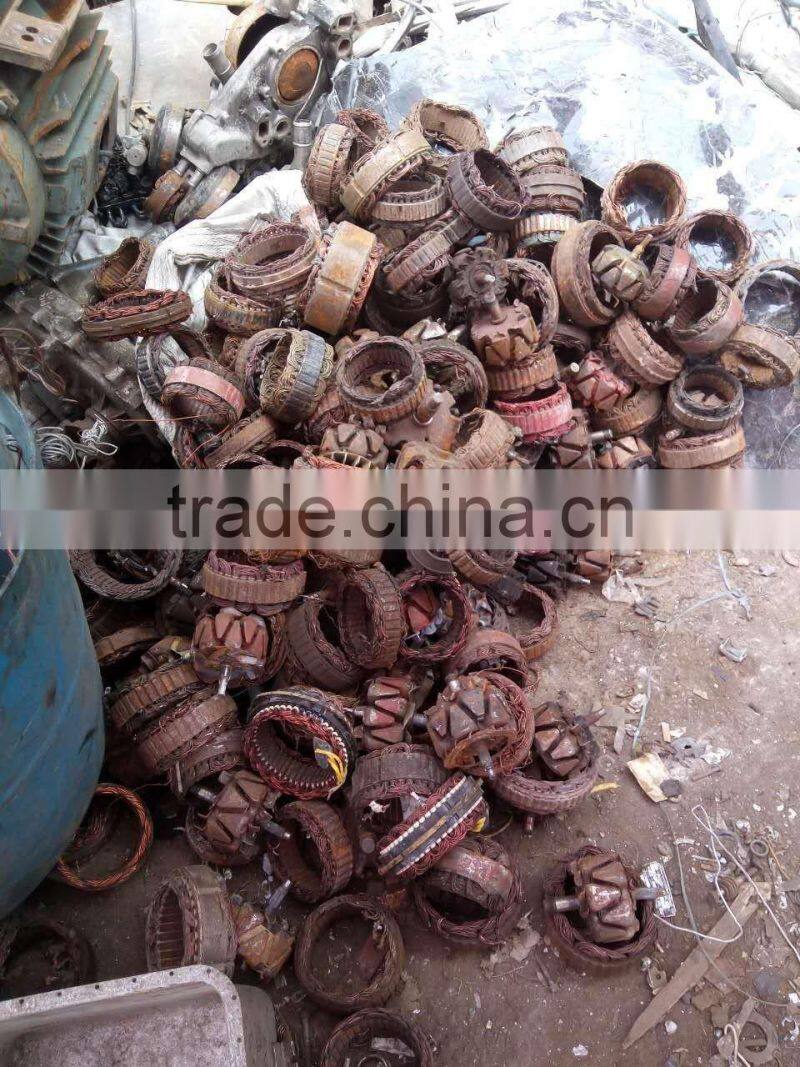

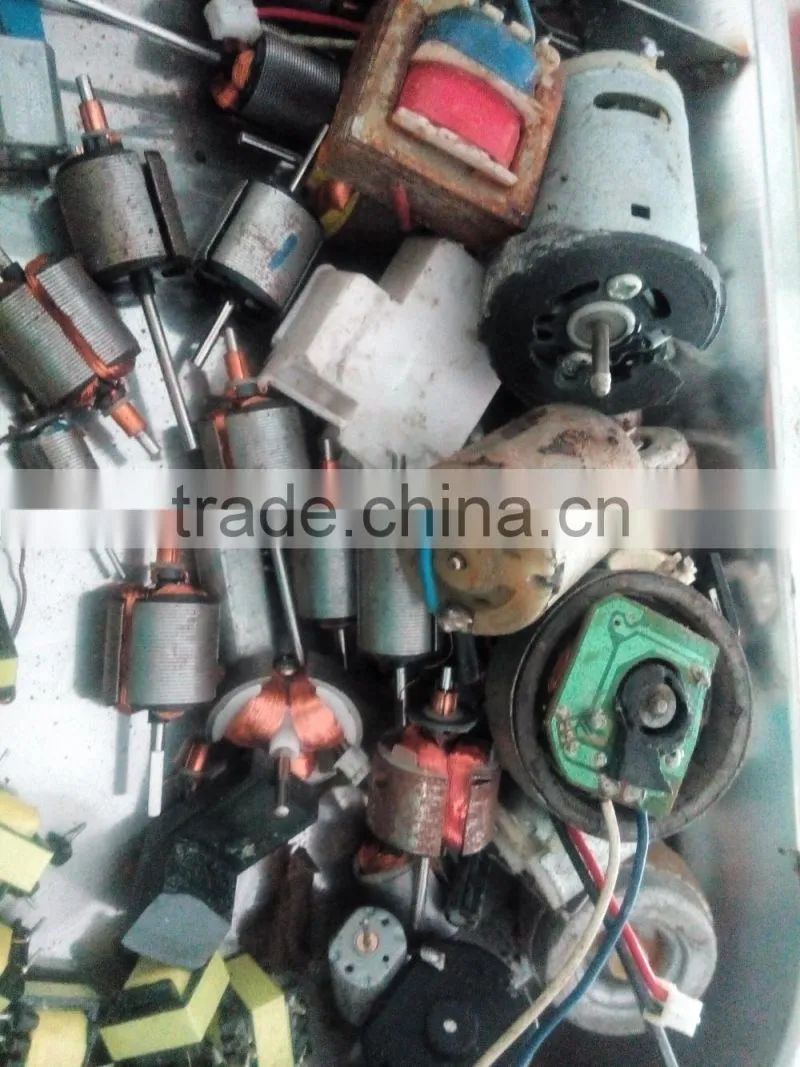

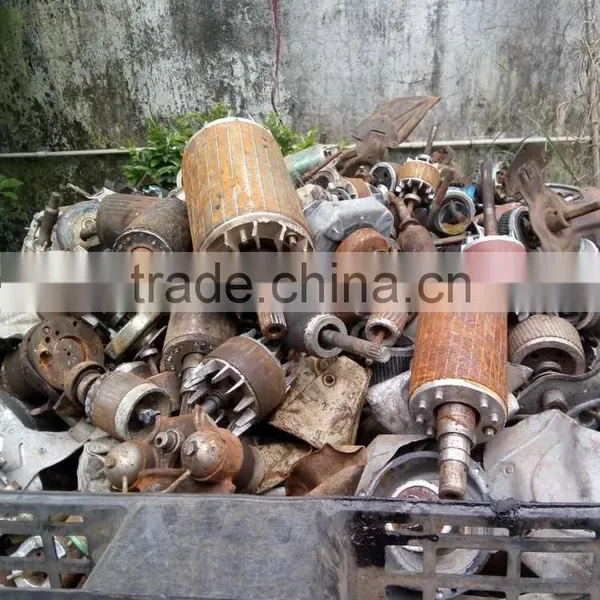

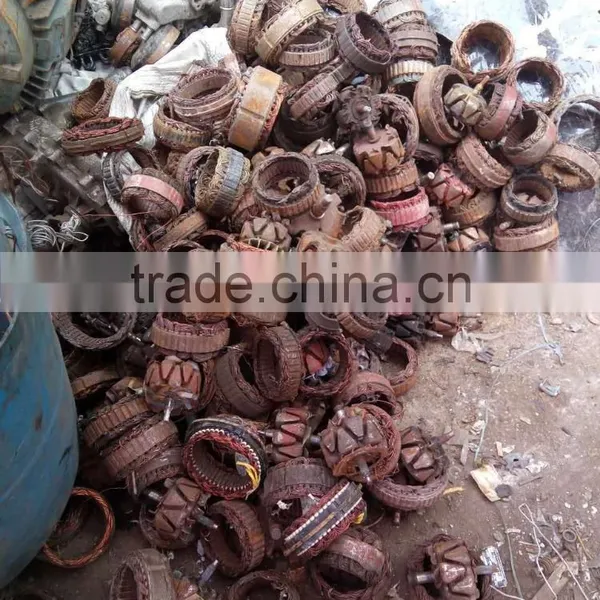

waste motor rotor scrap beverage can waste pain bucket
waste bicycle scrap color steel tile waste electric toy motor or socket or small transformer waste iron
Features of waste motor rotor crusher :
- powerful twisting (Hard Torsional Flex),high capacity , low noise and abrasion resistance
- can reduce the volume which waste will occupied , convenient to transport and also can save storage space , okay to accept continuous and intermittent feeding
- high smash ratio , high production efficiency , and discharging granularitycan be adjustable per your request ,and will not be affected by abrasion from Plate hammer and lining board,
- the driving unit in machine being equipped with electric security protector , it can prevent equipment damaged due to accident happened .
- without screen-strip design
- scrap motor rotor crusher adopts elastic adjusting mechanism ,and those unbroken material will discharge automatically and we promise no equipment damaged comes.
- horizontally disposed of bearings, long working life
- In our design , there are screw rod and hydraulic open mechanism in the afterbody of the cavity , and can easily and safely to change quick-wear parts and no need to start the main engine.
- Rotor body are designed with a unique structure ,so…..basically a few abrasion happened when crushing .
Specifications of Waste Motor Rotor Crusher :
model | Rotor Diameter
| power | Handling capacity | Motor | weight |
HDFH-700 | 550mm | 45KW | 2T/H | y-4 | 3ton |
HDFH-1000 | 800mm | 90KW | 5T/H | y-6 | 8ton |
HDFH-1200 | 800mm | 132KW | 7T/H | Y-6 | 10ton |
HDFH-1400 | 860mm | 200 | 10 | Y-8 | 15ton |
Step 1: crushing( motor rotor)
Step 2: install a magnetic separator, and then the iron will be picked out , for the rest mixture of copper wire and plastic pieces , it is okay to solve by a copper wire machine (crushing and separating machine for getting copper and plastic granule

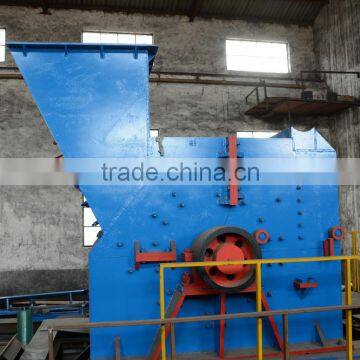

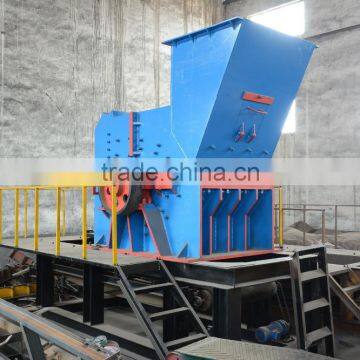

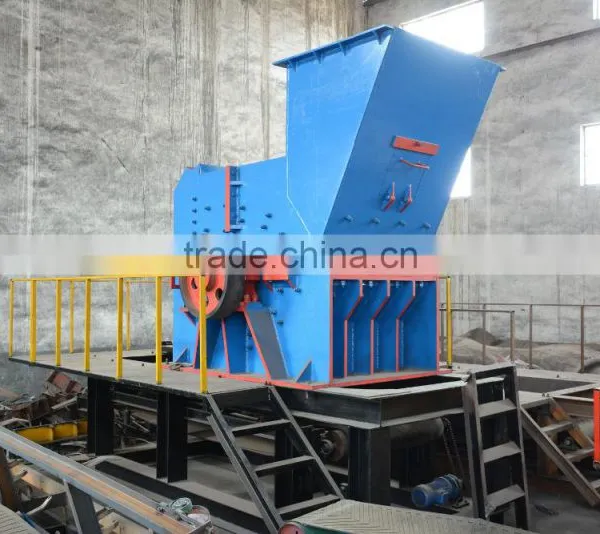

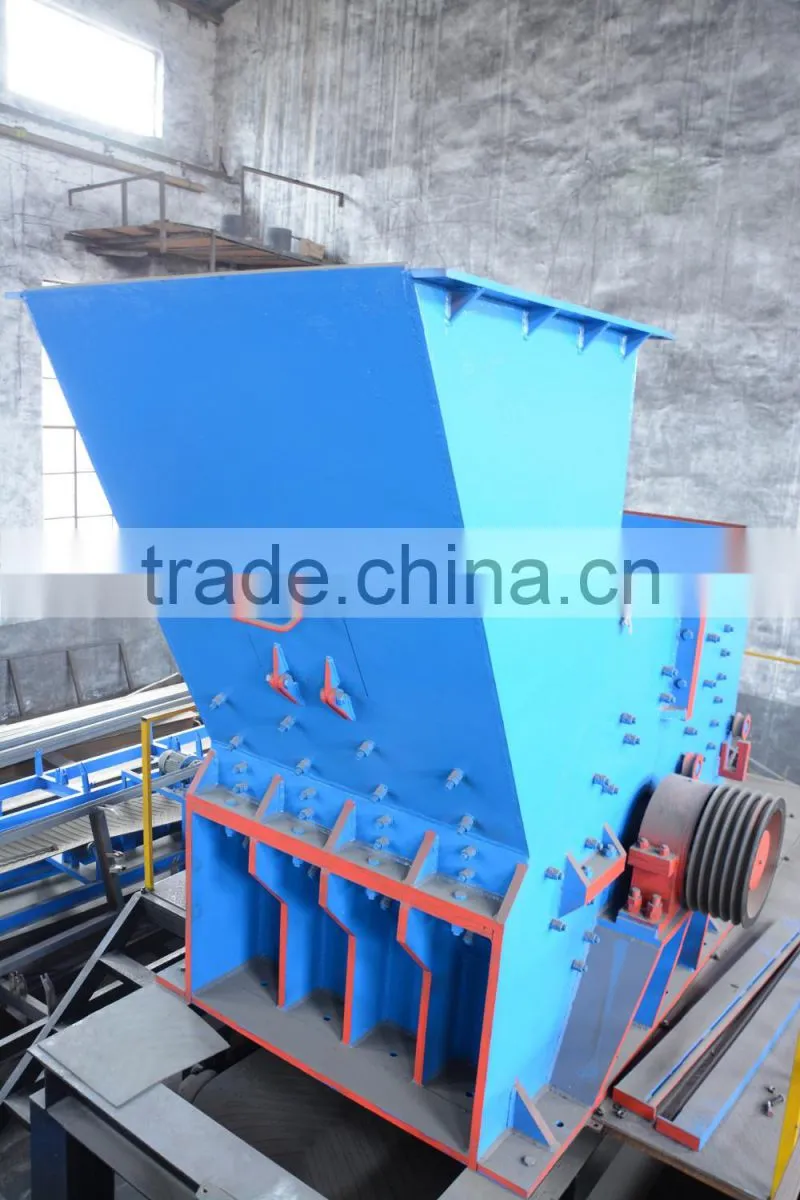

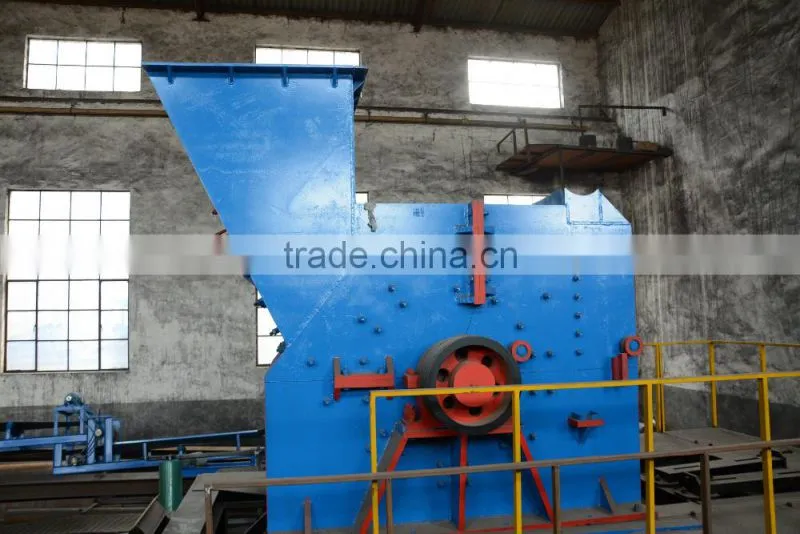

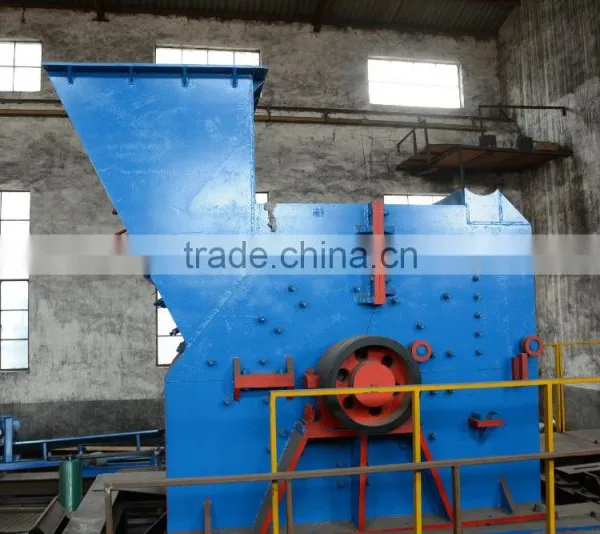

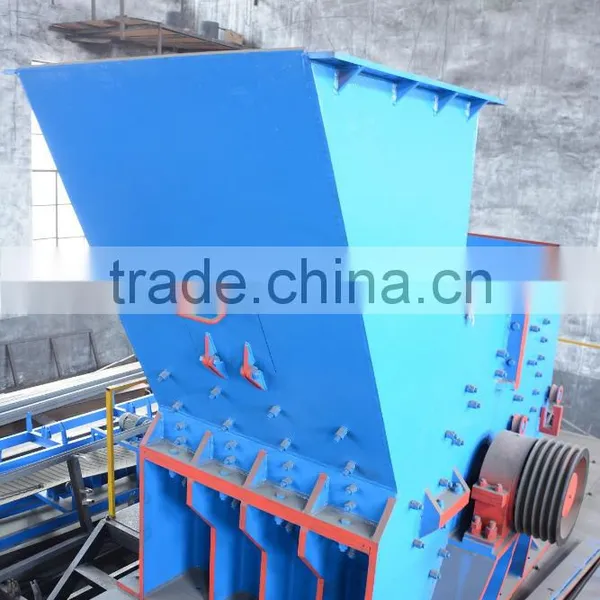

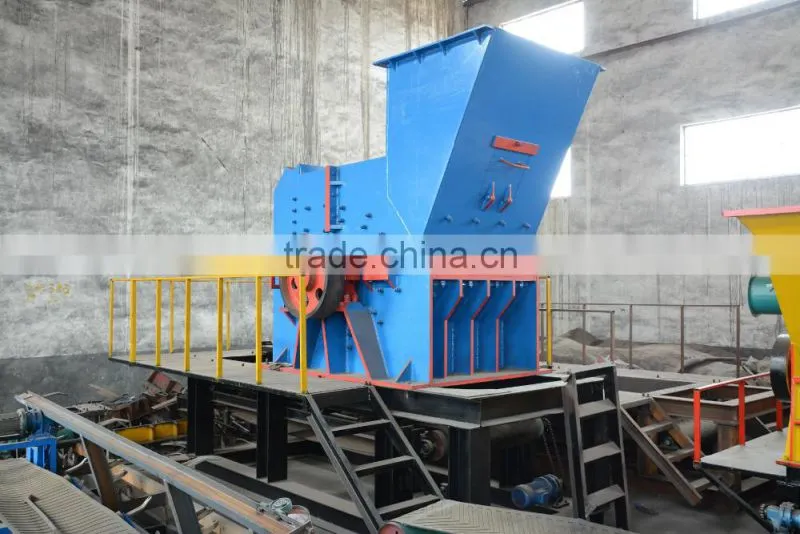

Detailed Photo of Waste Motor Rotor Crusher :
For any interest on our copper motor rotor processing recycling equipment , pls feel free to contact as b elow Info :
- Before sending the machine , we will test , for any problems , we will find timely and moreover make approprite adjustment , speak from this aspect , we can guarantee each machine comes in 100% good quality , and you can use directly after connect with electric power
- Operating video will be sent to clients together with instruction book , to help them for a better use.
- Any Problems occurred while running , professional advice(technic support) will be given by us within 24 hours via email .
- Ware parts of hammer , blade and screen mesh are supplied from us all the year round .
- One year guarantee for whole machine except spare parts .
