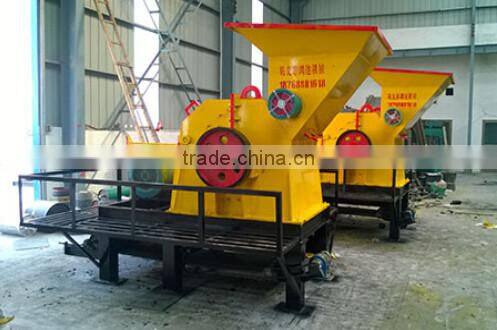

Waste Motor Rotor Crushing Machine
Working principle of waste motor rotor crushing machine :
Material fall into the high speed rotating impeller vertically, under the action of centrifugal force , and will produce high speed impact and smash with another part of material which distribute in umbrella form around that impeller , after such a kind of hitting each-other, they will smash due to multiple impact and friction between impeller and machine casing (eddy generation), and then discharge directly from lower location .
Forming a closed multiple circulation , via a vibrating screen to control the fineness of finished product you need. (size of finished iron block and copper wire are adjustable )
Features:
- powerful twisting (Hard Torsional Flex),high capacity , low noise and abrasion resistance
- can reduce the volume which waste will occupied , convenient to transport and also can save storage space , okay to accept continuous and intermittent feeding
- high smash ratio , high production efficiency , and discharging granularitycan be adjustable per your request ,and will not be affected by abrasion from Plate hammer and lining board,
- the driving unit in machine being equipped with electric security protector , it can prevent equipment damaged due to accident happened .
- without screen-strip design
- scrap motor rotor crusher adopts elastic adjusting mechanism ,and those unbroken material will discharge automatically and we promise no equipment damaged comes.
- horizontally disposed of bearings, long working life
- In our design , there are screw rod and hydraulic open mechanism in the afterbody of the cavity , and can easily and safely to change quick-wear parts and no need to start the main engine.
-
Rotor body are designed with a unique structure ,so…..basically a few abrasion happened when crushing .
Specifications :
model |
Rotor Diameter
|
power |
Handling capacity |
Motor |
weight |
HDFH-700 |
550mm |
45KW |
2T/H |
y-4 |
3.5ton |
HDFH-1000 |
800mm |
90KW |
5T/H |
y-6 |
12ton |
HDFH-1200 |
800mm |
132KW |
7T/H |
Y-6 |
16ton |
HDFH-1400 |
860mm |
200 |
10 |
Y-8 |
25ton |
Step 1: crushing

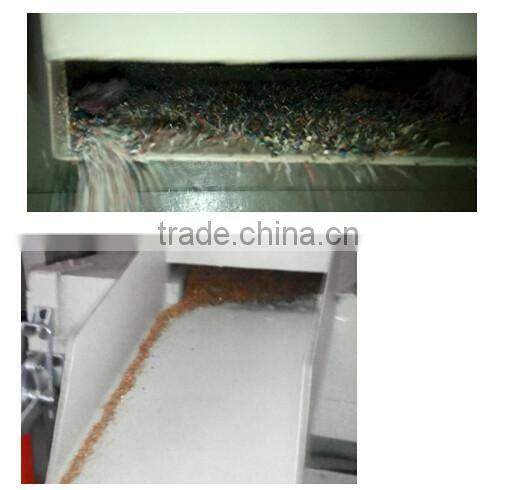

Step 2: install a magnetic separator at discharging port , and then the iron will be picked out , for the rest mixture of copper wire and plastic pieces , it is okay to solve by a copper wire machine (crushing and separating machine for getting copper and plastic granule , as below photo are the ones from scrap electric wire , pls refer )

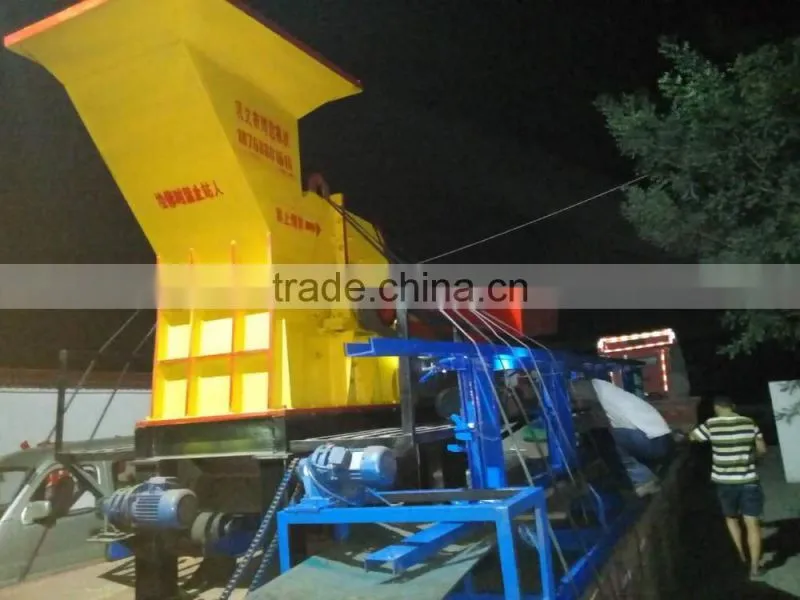

Detailed Machine Photo :
For any interest on our copper motor rotor processing recycling equipment , pls feel free to contact as b elow Info :
- Before sending the machine , we will test , for any problems , we will find timely and moreover make approprite adjustment , speak from this aspect , we can guarantee each machine comes in 100% good quality , and you can use directly after connect with electric power
- Operating video will be sent to clients together with instruction book , to help them for a better use.
- Any Problems occurred while running , professional advice(technic support) will be given by us within 24 hours via email .
- Ware parts of hammer , blade and screen mesh are supplied from us all the year round .
-
One year guarantee for whole machine except spare parts .
