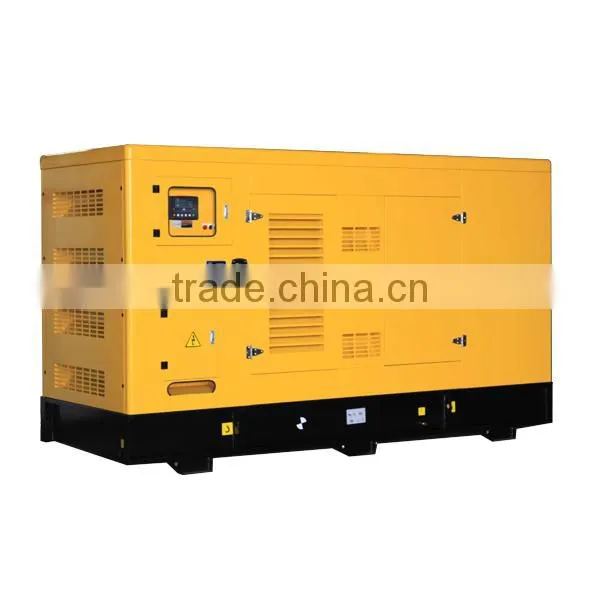

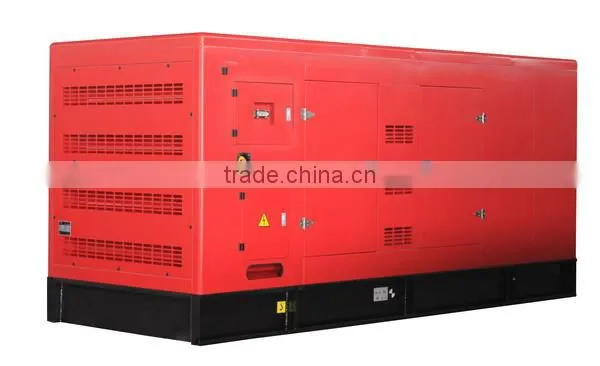

50Hz Generator Super Silent Diesel Genset 350kva
Specifications
genset 350kva1.Cummins diesel engine
2.Marathon/Stamford alternator

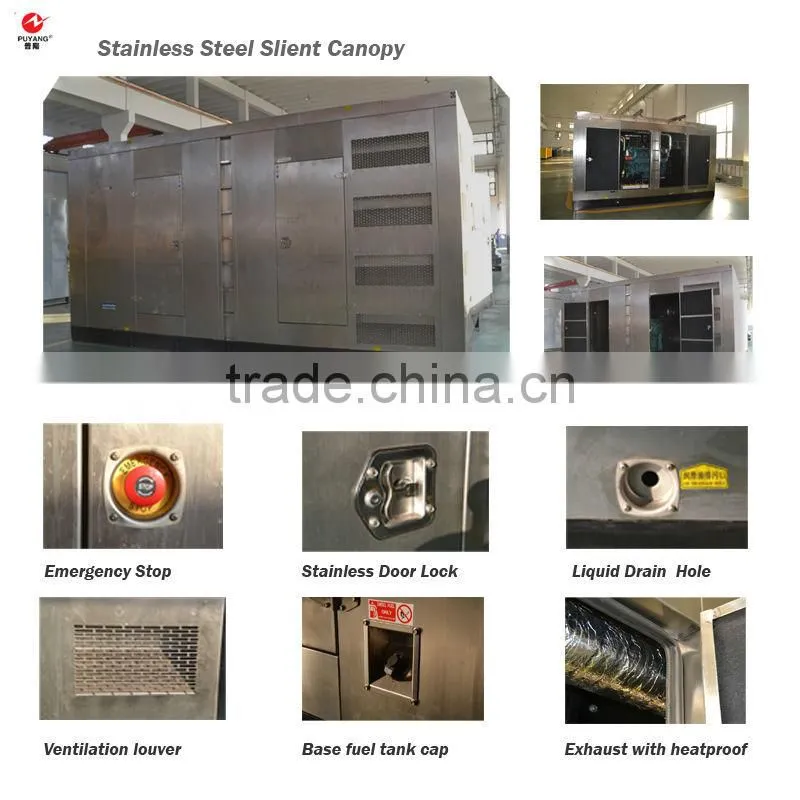

3.Silent canopy
4.280kw/350kva AC
50Hz generator super silent diesel genset 350kva
Gen-Set |
Gen-set Model |
PFC350 |
Manufacturer |
Dalian Puyang International Trade Co.,Ltd. |
|
Prime OutputKW/KVA |
280KW/350KVA |
|
Standby OutputKW/KVA |
310KW/388KVA |
|
Voltage, Phase and Wire |
110/220V, 220/380V or 230/400V, Single or Three Phase |
|
Frequency (Hz) |
50Hz |
|
Power Factor |
0.8 for Three Phase, 1.0 for Three Phase |
|
Rated CurrentA |
505A |
|
Engine |
Brand |
Cummins |
Engine Character |
Water cooled,in line,4 stroke,direct injection, 1500rpm or 1500rpm |
|
Cylinder |
6 |
|
Rated OutputKW |
1.2 times genset output |
|
Aspiration |
Turbo Charged |
|
Fuel Consumption g/kw.h |
<75 |
|
Lub-oil Consumption g/kw.h |
<0.083 |
|
Start Model |
Keystart or Autostart |
|
Speed Governor |
Electrical |
|
Alternator |
Alternator Manufacturer |
Stamford or Leroysomer or Marathon |
Rated Output(KW/KVA) |
Same as Generator Set |
|
Excitation |
Brushless self-exciting |
|
Insulation Class |
H |
|
Protection Class |
IP22 |
|
Efficiency |
92.80% |
|
Voltage Regulation |
±1.0%with 4% engine governing |
|
Waveform Distoration |
No load<1.5% and non-disttorting balanced linear load<5% |
