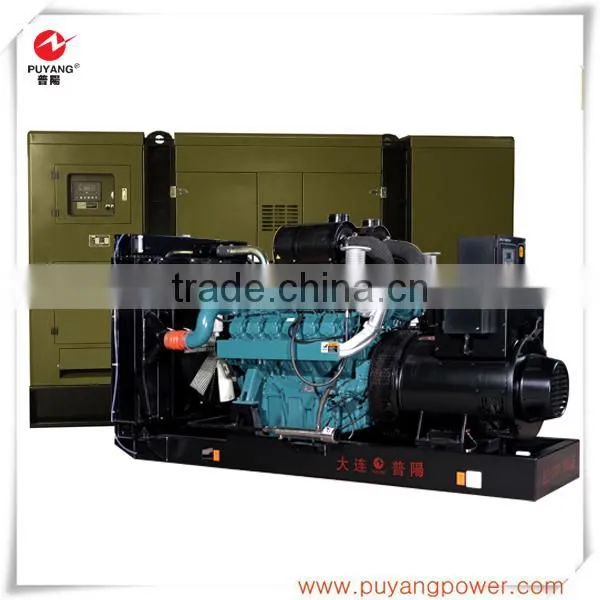

Doosan Daewoo Diesel 80kva Sound Proof Diesel Generator Used

Name: Doosan Daewoo Diesel 80kva Sound Proof Diesel Generator Used
Brand: PUYANG
SKU: 141416330
Availability: InStock

US$ 1 - 39,999 MOQ: 1 Set

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

PUYANG

Model Number:

PFD80

Dalian Puyang International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name PUYANG

Model Number PFD80

Output Type AC Three Phase

Speed 1500RPM

Frequency 50HZ

Rated Power 64KW/80KVA

Rated Voltage 230/400V

Rated Current 115A

Specifications

diesel generator used
1.Equipped with Doosan engine
2.Leroy somer alternator
3.Deep sea control
4.64kw/80kva

Doosan Daewoo diesel 80kva sound proof diesel generator used

Genset model	PFD80 diesel generator set
Type	Open(silent/trailer as optional)
Genset output power range	64kw/80kva
Rated voltage	220/380V,230/400V,240/415V,120/240V
Frequency	50HZ
Power factor	0.8
Rated speed	1500rpm
output type	AC three phase
Motor	Brushless,self-excitation
Frequency	<3%
Frequency at stable state:	<0.5%
Frequency deviation at instantaneous state	≤+10%
Frequency return time	≤3s
Voltage deviation at stable state	≤±1%
Voltage deviation at instantaneous state	≤+20%
Voltage return time	≤4s
Voltage modulation	≤0.3%

The specification of engine:

Model	Doosan
Cooling Method	water cooled
Rotating speed	1500rpm
Governor system	electrical or mechanical governor
Aspiration mode	natural aspirated or turbocharged
Starting method	12/24V DC electric starting
Stroke	4 stroke

The specification of alternator:

Regulator	AVR automatic voltage regulating
Excite type	Self-excitation, brushless
Connecting type	3PH star, 3PH-DELTA
Steady frequency change	0-5%
No load voltage	≥95%-105
Steady voltage	≤±1
Insulation degree	H degree
Exclosure degree	IP23
