Specifications
generator water cooled diesel1.China laidong engine
2.stamford or Marathon alternator
3.24kw30kva
4.CE/ISO approved

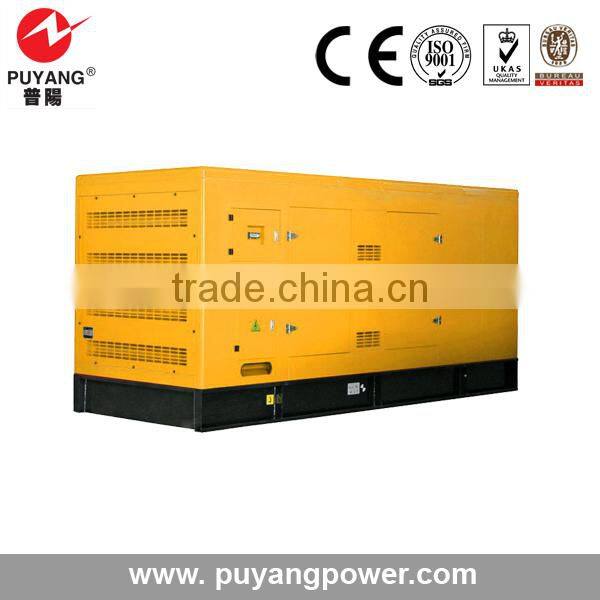

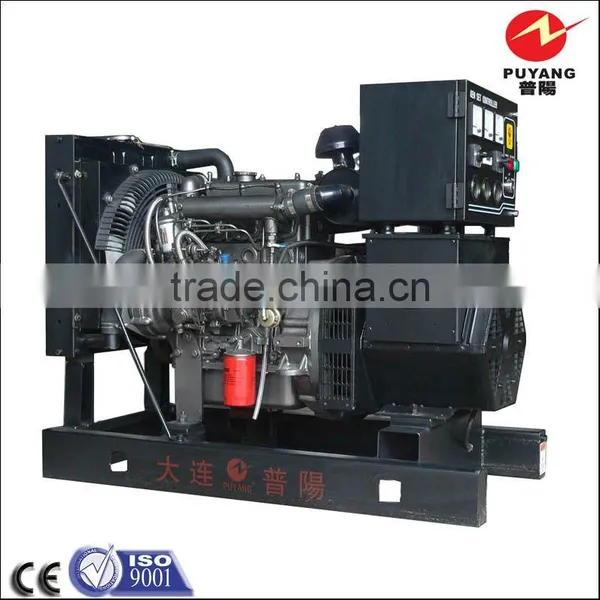

Laidong engine three phase silent generator water cooled diesel
| Diesel Generator specification | ||
| 1 | Model Number | PF24GF |
| 2 | Output Type | AC Three Phase |
| 3 | Speed | 1500rpm |
| 4 | Frequency | 50hz |
| 5 | Rated Power | 24kw/30kva |
| 6 | Rated Voltage | 400/230v |
| 7 | Rated Current | 180A |
| 8 | Certification | CE,ISO |
| 9 | Basic infornation | 230 / 400V AC, 0.8pF three-phase and four wires alternating current output |
| 10 | Color | Red,black,yellow,gray,blue |
| 11 | Protection Grade | IP21/23 |
| 12 | Insulation Grade | H/H |
| 13 | Regulator | AVR |
| 14 | Frequency at stable state: | <0.5% |
| 15 | Frequency deviation at instantaneous state: | ≤+10% |
| 16 | Frequency return time: | ≤3s |
| 17 | Voltage deviation at stable state: | ≤±1% |
| 18 | Voltage deviation at instantaneous state: | ≤+20% |
| 19 | Voltage return time: | ≤4s |
| 20 | Voltage modulation: | ≤0.3% |
| 21 | Short circuit protection: | MCCB air switch |
| 22 | Filter system: | oil, fuel and air filter |
Engine and Alternator specification | ||
1 | Engine | laidong |
2 | Engine type: | in line four-stoke, wet cylinde liner, direct injection |
3 | Cooling system | water cooling |
4 | Start | Electric start |
5 | Alternator | Marathon,stamford,engga, |
6 | Alternator type | brushless, self-excitation,50Hz, 1500rpm |
7 | Excitation | self-excitation |
Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) CHNT air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
