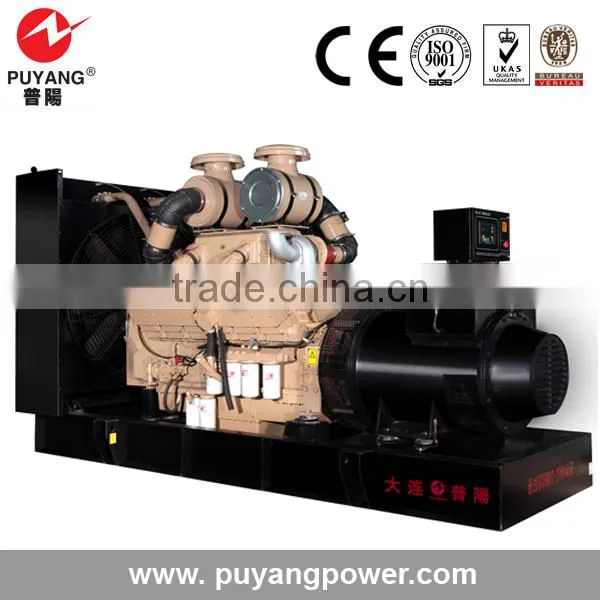

Water cooled low noise diesel 1000kva generator China OEM
Technical data | |
Genset Model | PFC1000 |
Prime Power | 1000kva/800kw |
Rated Voltage | 400/230V |
Frequency | 50Hz |
Power Factor(COS) | 0.8(lagging) |
Dimension (L×W×H) (mm) | 4150×1810×2460mm |
Genset weight (kg) | 8700 |
Diesel Engine | |
Brand | Cummins |
Model | KTA38-G5 |
Number of Cylinders | 12 |
Rotating Speed | 1500RPM |
Cylinder Arrangement | V |
Cycle | Four stoke |
Aspiration | Turbocgarged air-air cooled |
Bore×Stroke(mm) | 159×159 |
Displacement(L) | 38 |
Compression Ratio | N/A |
Speed Governor | Electrical |
Cooling System | Water-cooling |
Speed Stability (%) | ≤5% |
Total Lubrication System Capacity (L) | 135 |
Coolant Capacity (Inc. Radiator) (L) | 306 |
Fuel Consumption at 100% Load | 209.0L/hr(at 1500RPM) |
Starting Method | DC24V Electrical starting |
Alternator | |
Brand | Leroy somer |
Number of Phase | 3 |
Connecting Type | 3 Phase and 4 Wires,"Y" type connecting |
Number of Bearing | single |
Protection Grade | IP22 |
Altitude | ≤1000m |
Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating |
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us
Certificate: ISO, CE, GOST
Package: plastic wrapping or plywood case
Delivery time: 20~30 days
Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
