China Low Price Underslung Refrigerated Generator 20KVA in Panama

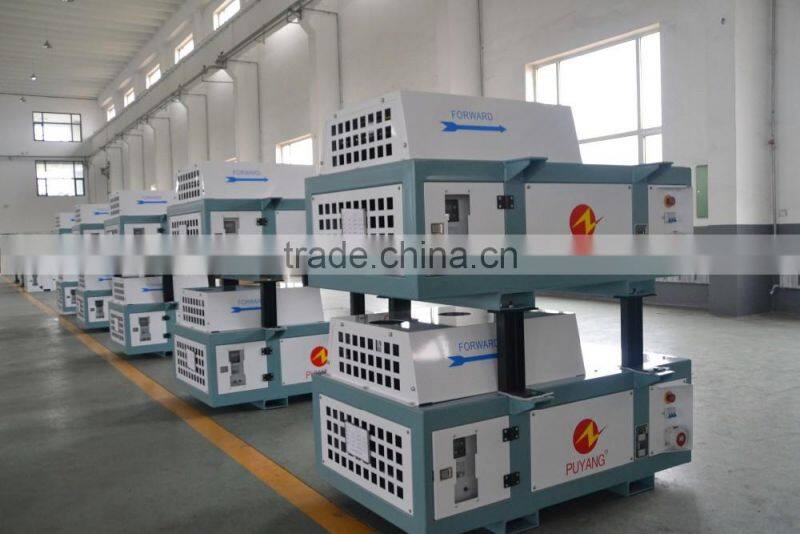

China Low Price Underslung Refrigerated Generator 20KVA in Panama photo-1

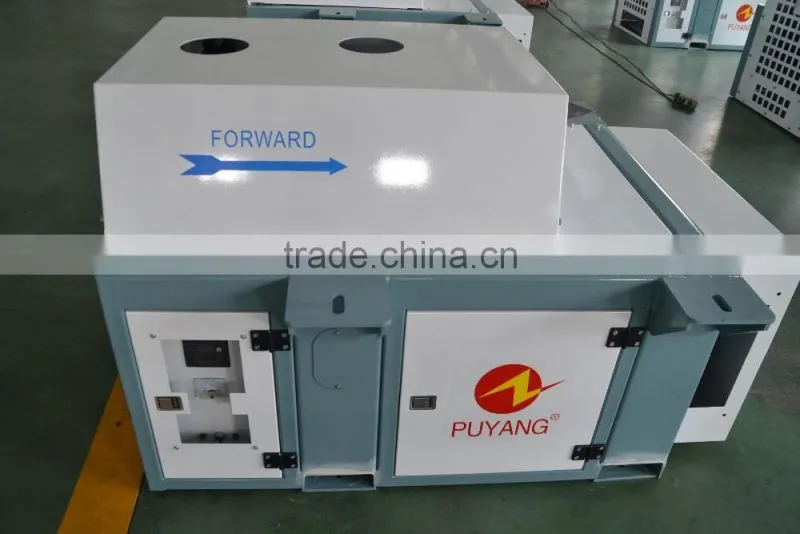

China Low Price Underslung Refrigerated Generator 20KVA in Panama photo-2

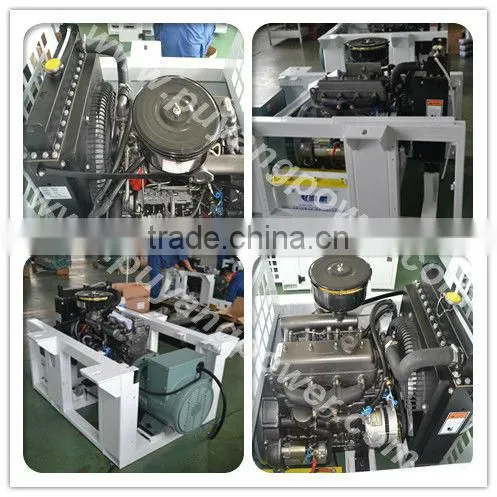

China Low Price Underslung Refrigerated Generator 20KVA in Panama photo-3
US$ 1 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
PUYANG
Model Number:
PF16GFL
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN TIANJIN QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Liaoning, China
Brand Name PUYANG
Model Number PF16GFL
Output Type AC Three Phase
Speed 1800rpm
Frequency 60Hz
Rated Power 16kw/20kva
Rated Voltage 440/460VA
Rated Current N/A

China Low price Underslung Refrigerated Generator 20KVA in Panama





Tech specification



1. Brief information:



This generator is mounted under the trucks, and supplys the electric power to refrigerated containers. It's powered by Laidong brand diesel engines and coupled with Marathonalternators. The control  system can offer the automatic protection with LCD display. We have 100L fuel tank and socket as option. The pictuers in attachment for your reference.







2. Main specification:



Genset Tech specification



Prime power: 16kw



Frequency(Hz): 60



Pahse: 3 phase



Voltage (V): 460 or 440



Fuel capacity(L): 200L



Consumption(L/Hour): 5.8



Dimension (mm): 1520*1200*960



Weight(kg): 590







Diesel engine specification



Engine brand: Laidong



 Engine model: 4L22BD-4



 Engine type: Vertical,4-cycle water-cooled diesel engine



 Starting method: Starting motor 12V,1.4kw



Max. output (kw): 21







Alternator specification



Alternator brand: Marathon



Alternator model: GM-16-4



Excitation method: Brushless self-excitation

Insulation class: H


Package:
plywood case or plastic wrapping



Warranty:

We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn’t' cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
