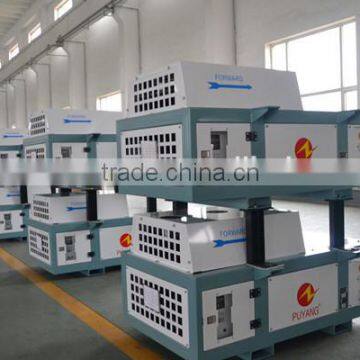

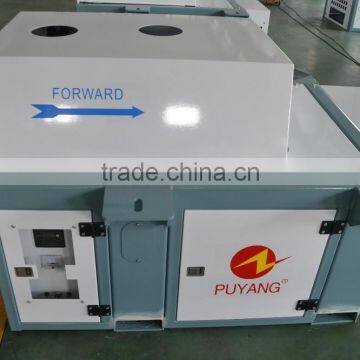

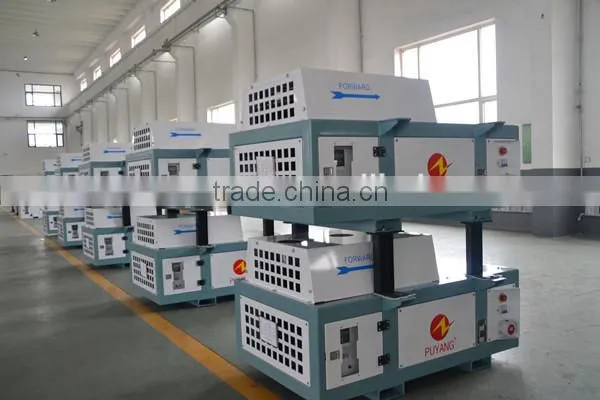

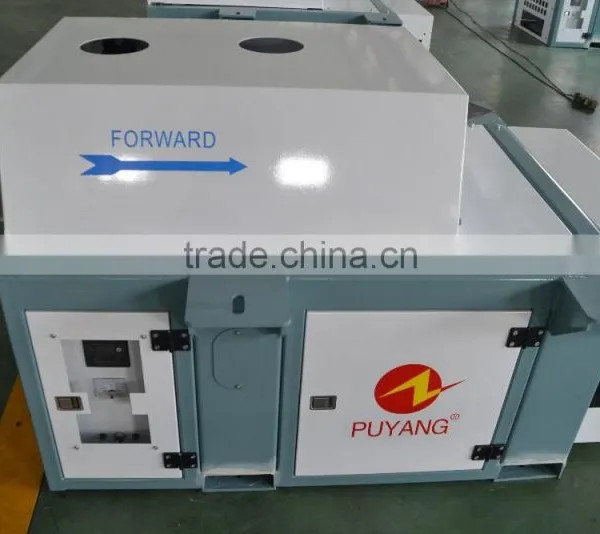

16KW 20KVA 60Hz electric genset for reefer container Chile
1. Brief information:

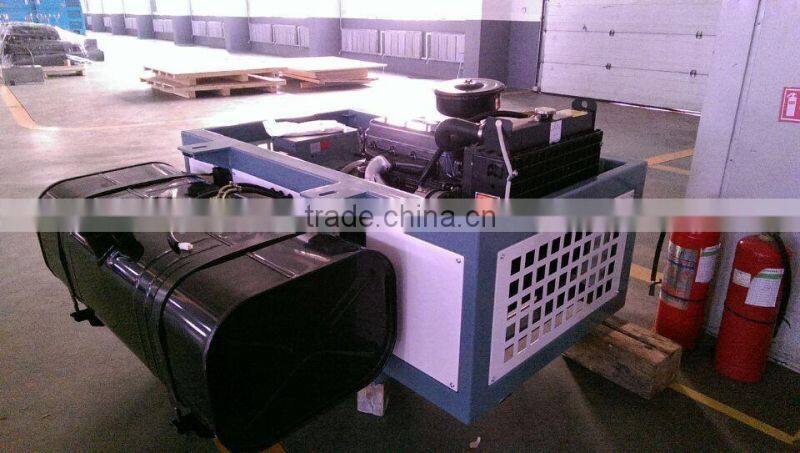

This generator is mounted under the trucks, and supplys the electric power to refrigerated containers. It's powered by Laidong brand diesel engines and coupled with Marathonalternators. The control system can offer the automatic protection with LCD display.
2. Main specification:
Genset Tech specification
Prime power: 16kw
Frequency(Hz): 60
Pahse: 3 phase
Voltage (V): 460 or 440
Fuel capacity(L): 200L
Consumption(L/Hour): 5.8
Dimension (mm): 1520*1200*960
Weight(kg): 590
Diesel engine specification
Engine brand: Laidong
Engine model: 4L22BD-4
Engine type: Vertical,4-cycle water-cooled diesel engine
Starting method: Starting motor 12V,1.4kw
Max. output (kw): 21
Alternator specification
Alternator brand: Marathon
Alternator model: GM-16-4
Excitation method: Brushless self-excitation
Insulation class: H
3. Price:
FOB DALIAN price: Please aske me!
MOQ: 6 SETS;
PS: The price will be better when the quantity is bigger.
4. Warranty:
We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first).
Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.

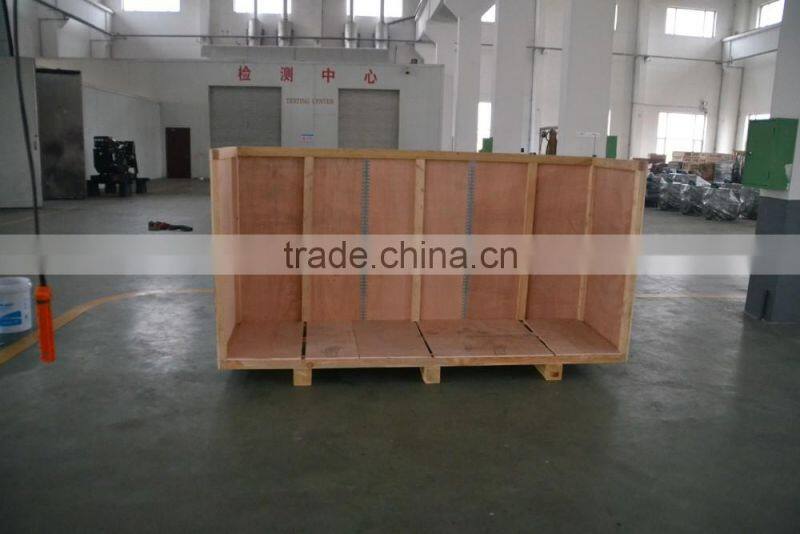

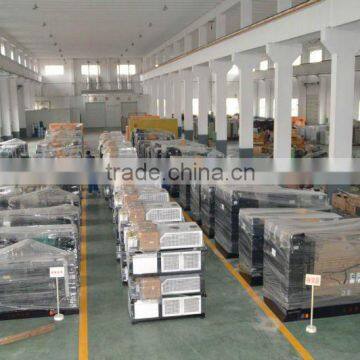

5. Package:
Plastic wrapping; 2 sets in one package;
6.Delivery time:
Generally, 30 working days; If you need them urgently, please tell me the delivery time you need.
7.Payment:
By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
