Specifications
Air Cooled Generators1.Deutz Engine
2.Leroy Somer Alternator
3.120kW/150kVA Output Power
4.Slient Canopy

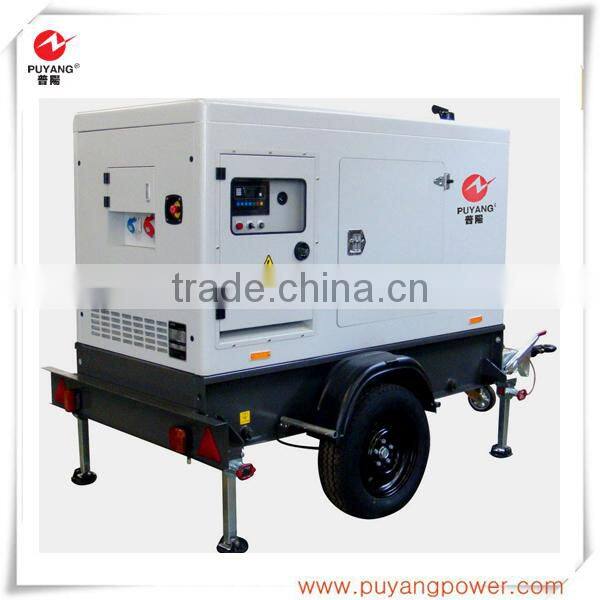

CE Approved Stand Alone Deutz Air Cooled Generators Of All Sizes
Product Overview
1.Coupled with Detuz diesel engine and Stamford Or Marathon alternator
2.24V DC start motor and storage battery
3.Brushless, Self-excited, IP23, insulation class H alternator
4.40°C radiator as standard, 50°C is optional
5.Key start panel control system as standard, digital auto-start panel is optional
6.Optional open type or silent type
7.All generator sets are gone through rigorous testing before being released to the market place,including
50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop,high water
temperature, low oil pressure, battery charging fail)
| Genset Model | PFWD150 | |
| Genset | Type | Open/Slient Customized |
| Rated Power | 120kW/150kVA | |
| Standby Power | 132kW/165kVA | |
| Consumption | 30.36L/H | |
| Dimension(mm) | 2550*850*1690 | |
| Weight(kg) | 1420 | |
| Engine | Brand | Deutz |
| Model | TBD226B-6D5 | |
| Nos. of Cylinder | 6 | |
| Cylinder Arrangement | Vertical In-line | |
| Bore*Stroke(mm) | 105*120 | |
| Displacement | 6.23L | |
| Vent.Vol. | 120L | |
| Air Inlade Vol. | 9.0L | |
| Ex.Vol. | 19.75L | |
| Ex.Temp. | 490 ℃ | |
| Lub. Oil Capacity | 13L | |
| Coollant Capacity | 27L | |
| Cooling Method | Water Cooling | |
| Cycle | 4-Stroke Direct Injection | |
| Starting Method | Electrical | |
| Rotating Speed | 1500rmp | |
| Discharge | Low Fuel Consumption | |
| Alternator | Brand | Leroy Somer |
| Model | LSA42.3L9 | |
| Connecting Type | 3 Phase 4 Wires | |
| Output Type | AC Single Phase | |
| Rated Voltage | 400/230V | |
| Frequency | 50Hz | |
| Excitation | Brushless Self-excitation | |
| Insulation Class | H/H | |
| Protection Grade | IP23 |
Warranty:
For underslung diesel generator set( genset). We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
Our service quality assurance:
1)Before-sale Service:we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance:our sale staffs are all experience and professional,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:We create files for end user and provide them follow-up service,regular return visit and permanent maintenance.
4)Spare parts supply:We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:We provide perennial major overhaul and maintenance service.
Dalian Puyang International Trade Co.,Ltd was established in 2005,which is the subsidiary of Puyang Group.Puyang company is a comprehensive and international trade company that mainly deals with industrial and construction machine.Depending on all staff's talent,diligent and convenient transportation,we have already obtained the substantial development during the past yaers.Now our catalogue is expanding larger and larger ,such as :generator sets,construction machine,agricultural field.Thus we can make sure that we will give the cutomer the high-quality product and good service.
