Specifications
Mobile Phone Station Generator1.Trailer Generator
2.Cummins Engine
3.100kW Power
4.Highway/Railway widely used

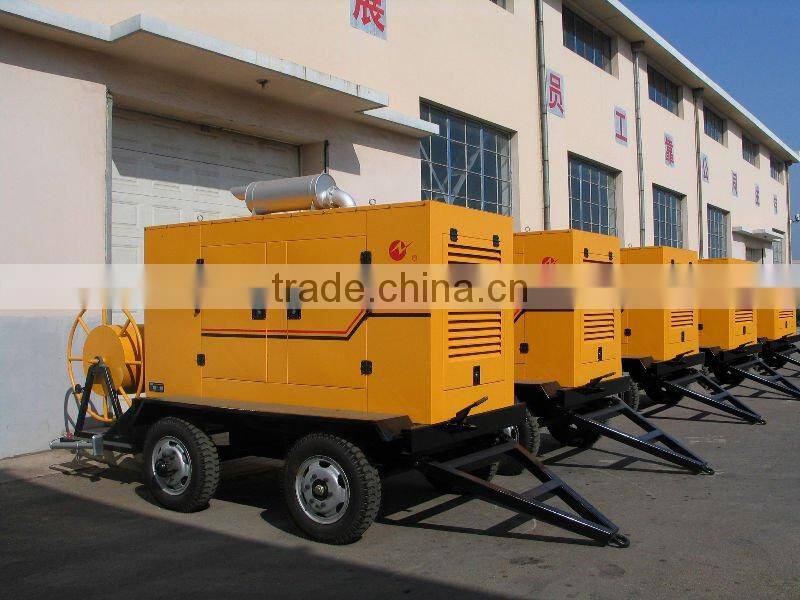

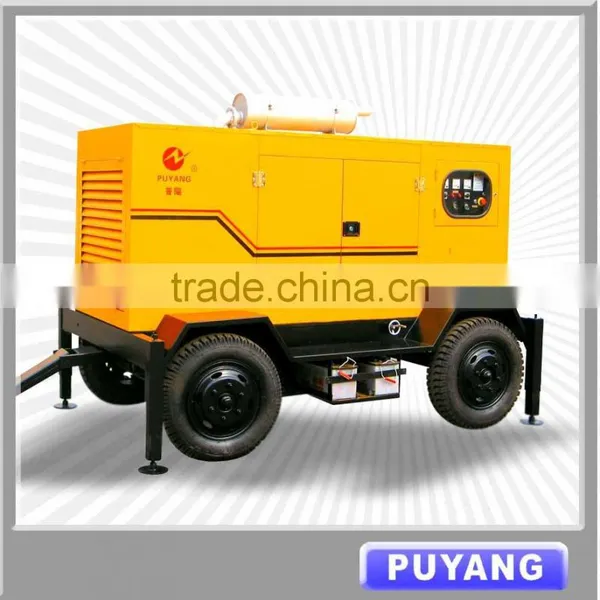

Water Cooled Trailer Portable Mobile Phone Station Generator 100kW
| Main features of the Mobile Phone Station Generator |
| Brand Name | Puyang |
| Genset Model | PFC125 |
| Prime Power(kW/kVA) | 100/125 |
| Standby Power(kW/kVA) | 110/138 |
| Output Type | AC Three Phase |
| Genset Type | Silent |
| Noise Level | ≤95dB at 7m |
| Color | Customized |
| Certification | CE /ISO |
| Warranty | 12 Months |
| Engine Specifications | |
| Engine Brand | Cummins |
| Diesel Engine Model | 6BTAA5.9-G2 |
| Cycle | 4-Stroke |
| Air Intake Method | Turbocharged |
| Nos. of Cylinder | 6 |
| Bore*Stroke(mm) | 102*120 |
| Displacement | 5.9L |
| Piston Speed | 6m/s |
| Compression Ratio | 16.5:1 |
Exhaust Temperature | 495 ℃ |
| Lub. Oil Capacity | 16L |
| Coollant Capacity | 29L |
| Cooling System | Water Cooling |
| Rotating Speed | 1500rpm |
| Starting Method | Electric |
| Alternator Specifications | |
| Alternator | Marathon/Engga/Stamford |
| Connecting Type | 3 Phase 4 Wires |
| Rated Voltage | 400/230V Adjustable |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Excitation Type | Brushless Self-excitation |
| Voltage Control | AVR |
| Insulation Grade | H |
| Protection Grade | IP21/23 |
Package:plastic wrapping or plywood case
Delivery Time: 20~30 days
Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
As an OEM generating set manufacturer, we have nearly 20 yaers development and the leading factory in northern China,which owns the largest scale of production and full production specifications and models.What is more,we have the only noe full-function testing center in our region.At the same time,our company focuses on the TB and cooperation in the whole staff so that we often organize many activities.
