Specifications
Marine Insulation Generator1.Doosan Engine
2.Much Higher Output Power
3.60Hz AC Three Phase
4.China Supplier

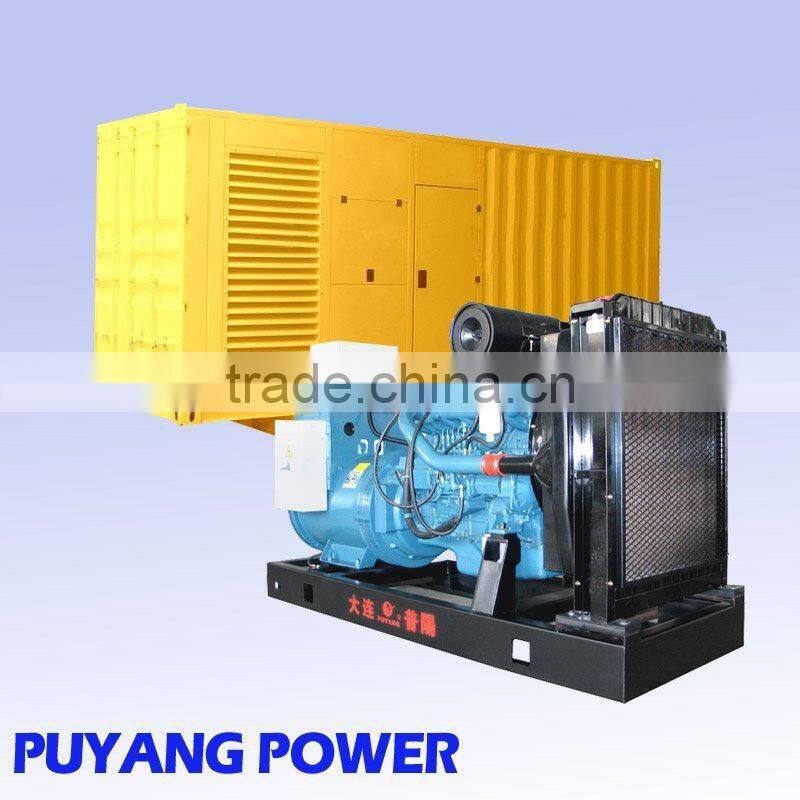

Insulation Indicator And Alarm Electrical Marine Insulation Generator 300kW
Standard scope of supply:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner and oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and battery line
k) Set shock absorber
l) High-efficiency silencer
| Genset Data | |
| Genset Model | PFD375 |
| Prime Power | 375kVA/300kW |
| Rated Voltage | 440V |
| Rated Current | N/A |
| Frequency | 60Hz |
| Dimension(mm) | 2970*1410*1800 |
| Weight(kg) | 2410 |
| Diesel Engine Data | |
| Brand | Doosan |
| Governor Type | Electrical |
| Rotating Speed | 1800rmp |
| Engine Cooling Method | Water Cooling |
| Displacement | 14.618L |
| Air Intake Method | Turbocharged |
| Combustion Type | Direct Injection |
| Cylinder Nos. | 6 |
| Alternator Data | |
| Brand | Marathon |
| Power Factor | 0.8(lagging) |
| Connecting Type | 3 Phase 4 Wires |
| Excitation | Brushless Self-Excitation |
| Voltage Control | AVR |
| Insulation Grade | H |
| Protection Class | IP21-23 |
1)Before-sale Service:we provide detailed product technical parameters for equipment choosing and system
designing.
2)Service quality assurance:our sale staffs are all experience and professional,who can provide the most
proper system design and optimized equipment for the customers.
3)After sale maintenance service:We create files for end user and provide them follow-up service,regular
return visit and permanent maintenance.
4)Spare parts supply:We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:We provide perennial major overhaul and maintenance service.
After the development of more than ten years,Dalian Puyang Generating Set Co.,Ltd. has become the leading generatign set manufacturer in northern China. We have the largest scale of production and full product specifications and models.With self-contained producing conditions,advanced testing equipments and abundant technology ,we can provide diesel generating set ranging from 8kW to 1800kW.It deserves to be mentioned that we have the only one full-fuction testing cneter in northern China.
Not only is “Let the light and power eternal” the wish of all clients,but also it is our key of subsistence. We would like to obtain your support and trust with the method of our best quality and service.
