Home > Products > Diesel generator set > Silent/Open Frame 250kW AVR For Generator Universial China Made
Silent/Open Frame 250kW AVR For Generator Universial China Made
- 100 Set / Sets per Month
- Dalian
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Liaoning, China | Brand Name: | PUYANG | Model Number: | PFC313 |
Output Type: | AC Three Phase | Speed: | 1500rpm | Frequency: | 50Hz |
Rated Power: | 250kW/313kVA | Rated Voltage: | 230/400V Adjustable | Rated Current: | N/A |
Product Description
Specifications
AVR For Generator1.Cummins Engine
2.250kW Output Power
3.Low Fuel Consumption
4.CE/ISO Approved
Silent/Open Frame 250kW AVR For Generator Universial China Made

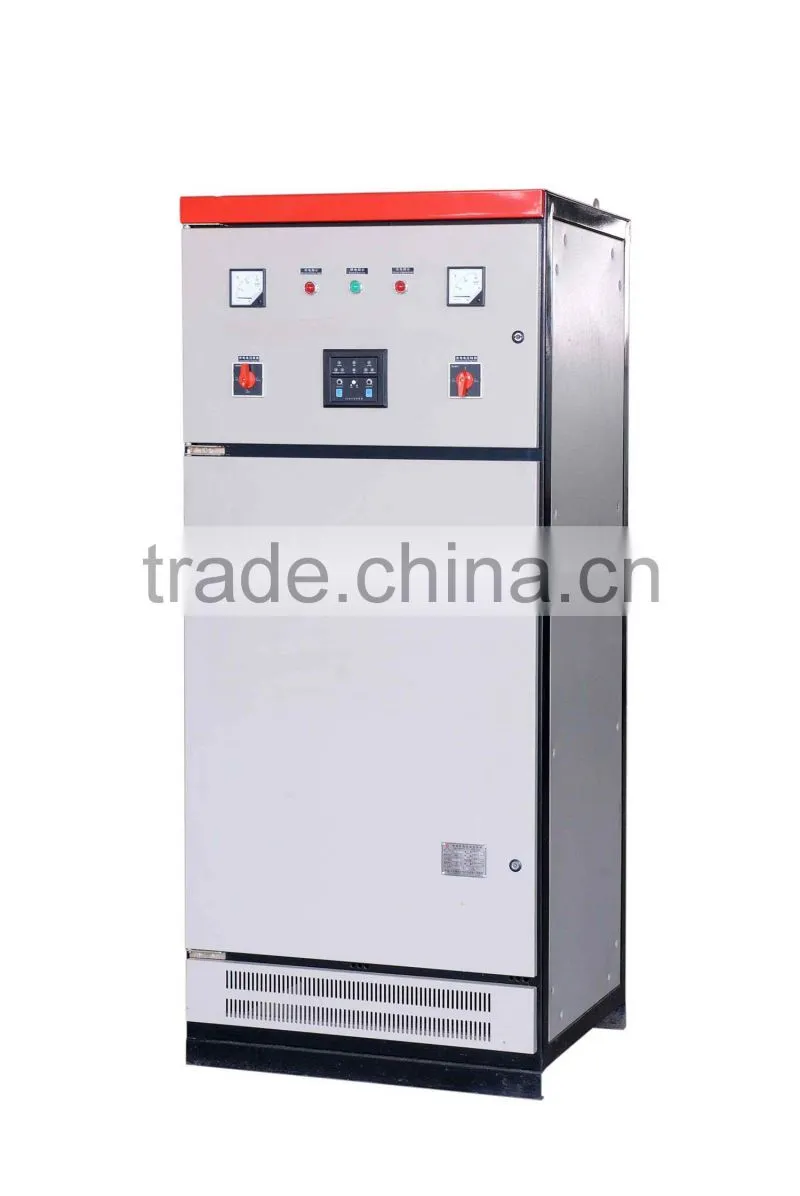

ATS is mainly used for automatic switching between main power supply and emergency power supply power. Its self-start diesel generating set with an automatic emergency power supply system, can automatically start the load which is switched to power generating units in the main power supply.
Features of AVR
Rated output: 250KW/313KVA
Rated voltage: 400/230V Adjustable
Rated frequency: 50Hz
Power factor: 0.8

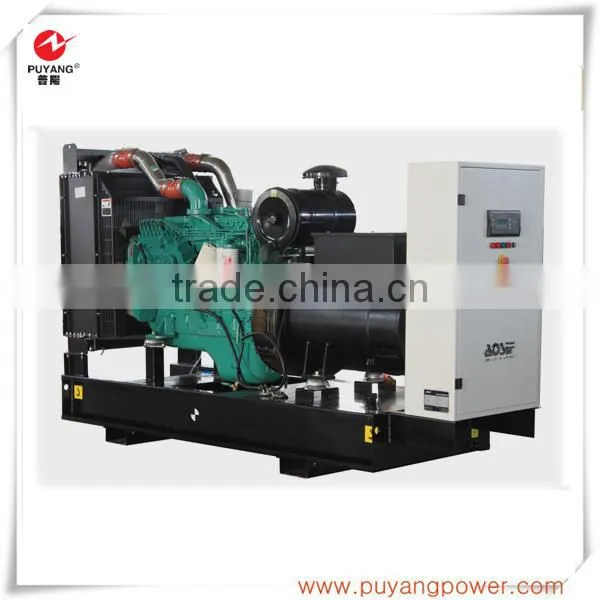

Engine
Brand:Cummins
Cooling method: closed water cooling
Starting method: electric start
Rated speed: 1,500rpm
Noise level:75dB, 7 meter away
Alternator
Brand: Stamford,Marathon,Engga, brushless alternator
Rated voltage: 400/230V
Rated frequency: 50Hz
Power factor: 0.8
Phase: 3-phase, 4-wire
Connection: Y or other type connection
Rated speed: 1,500rpm
Excitation: self-excitation
Voltage regulation: automatic
1.0% voltage regulation (maximum) in static conditions
Protection class: IP21/23
Control Panel
The generator control panel is manufactured locally
The panel is provided with:
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
Instrument fuses duly wired and ferruled
With AMF control panel or with ATS (automatic transfer system)
With CE certification
Model | Prime Power | Standby Power | Engine | Alternator | Control | ||
kW | kVA | kW | kVA | ||||
PFC25 | 20 | 25 | 22 | 28 | 4B3.9-G1 | LSA42.3VS2 | DSE6020 |
PFC30 | 24 | 30 | 26 | 33 | 4BT3.9-G2 | LSA42.3VS3 | DSE6020 |
PFC38 | 30 | 38 | 33 | 41 | 4BT3.9-G2 | LSA42.3VS5 | DSE6020 |
PFC50 | 40 | 50 | 44 | 55 | 4BTA3.9-G2 | LSA42.3M8 | DSE6020 |
PFC56 | 45 | 56 | 50 | 63 | 4BTA3.9-G2 | LSA42.3L9 | DSE6020 |
PFC100 | 80 | 100 | 88 | 110 | 6BT5.9-G2 | LSA44.2 VS45 | DSE6020 |
PFC125 | 100 | 125 | 110 | 138 | 6BTAA5.9-G2 | LSA44.2 S7 | DSE6020 |
PFC150 | 120 | 150 | 132 | 165 | 6CTA8.3-G2 | LSA 44.2 M95 | DSE6020 |
PFC188 | 150 | 188 | 165 | 206 | 6CTA8.3-G2 | LSA 46.2 M5 | DSE6020 |
PFC200 | 160 | 200 | 176 | 220 | 6CTAA8.3-G2 | LSA 46.2 M5 | DSE6020 |
PFC250 | 200 | 250 | - | - | 6LTAA8.9-G2 | LSA 46.2 L6 | DSE6020 |
1.We have the professional group and engineers to provide We can supply detailed technical parameters of the genset , optimized factory design and installation guidance for our customers.
2.We can provide the omni-directional after sale service which includes follow-up service ,periodical returning
visit ,quality tracking,permanent maintenance.
3.We have various optional parts to make the genset more efficient and reliable.
4.We offer good after-sales service If the problem is caused by our technology,we will be responsible for
that,even we can send the replacement to your or send our enginer to your country if it is serious.If your
quantity is enough large,we can send engineer to your country to help you such as installment or teach you
some maintenance knowledge and how to solve some problems that you frequently meet. For the parts, we
will give you a reply as soon as possible after receiving your request.
5.OEM is also welcomed.
Dalian Puyang Diesel Generating Set has been founded more than two decades.Our company has the largest scale of production and full prodcut specifications and models.And we have the only one full-function testing center in northern China.We still insist on the concept that let the light and power eternal and we have obtained more customers ´ support and trust through our best production and service.
