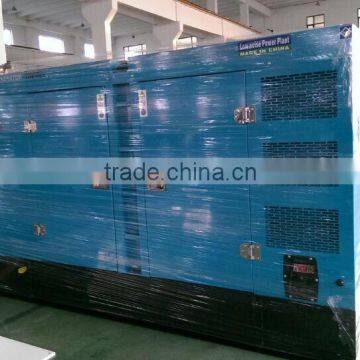

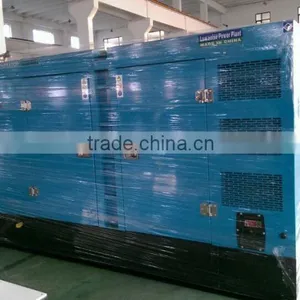

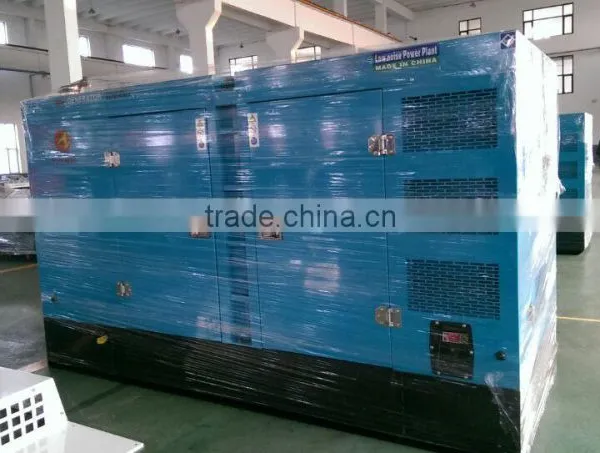

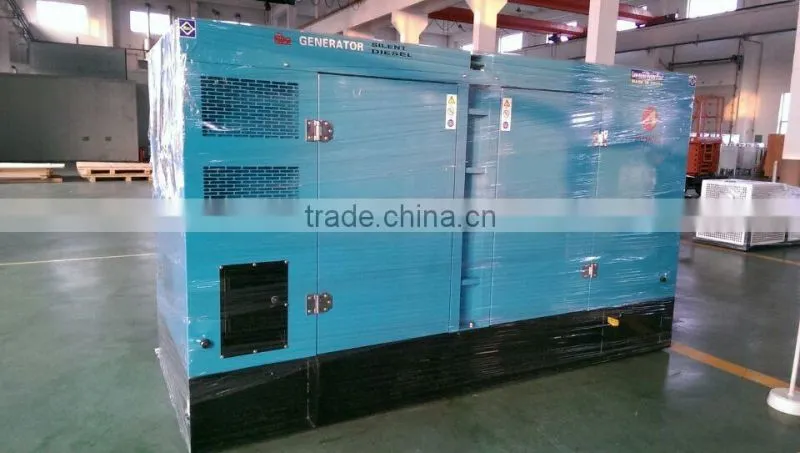

Soundproof type low price China super silent generator diesel 120kw
Super silent generator diesel 120kw specification :
1) Output power: 120kw
2) Engine model: 6CT8.3-G2
3) Alternator: Stamford, Marathon ,leroy somer
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) silent generator is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation: ≤0.3%
Engine feature
Diesel Engine | Brand | Cummins |
Model | 6CTA8.3-G2 | |
Type | water-cooled,4-stroke,direct injection,1500rpm | |
Rated Power(kVA) | 150 | |
Intake Type | Turbocharged | |
No.of Cylinder | 6 | |
Bore x Stroke(mm) | 114*135 | |
Compression ratio | 15:1 | |
Mechanical Governor Rate | ≤ 5% | |
Electronic Governor Rate | ≤ 1% | |
Exhaust Temperature(°C) | 541 | |
Lub oil Capacity(L) | 20 | |
Rated Fuel Consumption | 30.7L/h | |
Displacement(L) | 8.3 | |
Starting method | DC24V Electric starter | |
Governing Type | Electric governor |
Alternator feature
Brand | MARATHON or Leroy somer |
Configuration | Brushless , self-exciting |
Prime voltage | 230V/400V |
Frequency | 50 HZ |
Power factor | 0.8(lagging) |
Phase/wire | 3 phase 4 wires |
Isolation | H |
