Specifications
1.ISO9001:2008 and CE2.Make log into chips
3.With feeding conveyor
4.Long service and durable part

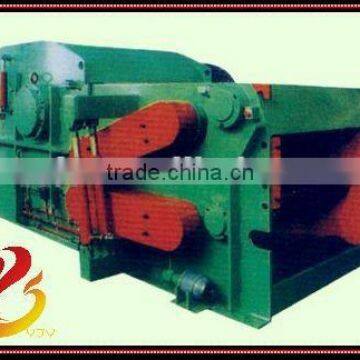

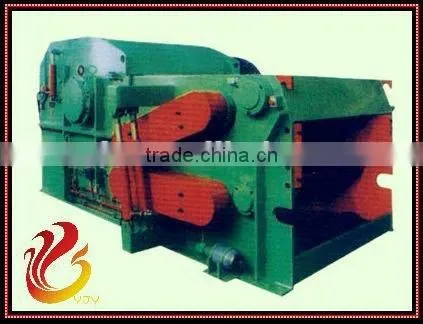

Brief Introduction of Wood crusher
This series wood crushers are extremely robust machines with modern design, suitable for the chipping of round logs, waste wood, bamboo, slabs, planks, log end pieces, pallets etc.
Wood crusher works
Wood crusher's feed material is continuously fed into the chipper by means of a batch feeder or vibratory feed trough. Toothed draw-in rollers with a good grip characteristic draw the feed material into the chipping chamber at a continuous speed. There it is size reduced by a very robust rotor into quality chips and discharged through a stable screen.
Application of Wood crusher
This series wood crushers are extremely robust machines with modern design, suitable for the chipping of round logs, waste wood, bamboo, slabs, planks, log end pieces, pallets etc. The feed material is continuously fed into the chipper by means of a batch feeder or vibratory feed trough.
Toothed draw in rollers with a good grip characteristic draw the feed material into the chipping chamber at a continuous speed. There it is size reduced by a very robust rotor into quality chips and discharged through a stable screen.
By the processing, these feed-in materials are turned into high quality, uniform, and multi-application wood chips, which are ideal materials for the manufacture of particle board, MDF and paper pulp. The chips are also well suited as fuel for high intensity burning in modern heating plants.
With continuous and economical working procedure, low maintenance costs, high efficiency and high capacity, our wood chipper machine had been trusted and praised since they were put on the market.
Wood crusher parameters
Model |
BX215 |
BX216 |
BX218 |
BX2113 |
Feeding Size (mm) |
160*400 |
230*500 |
300*680 |
450*700 |
Quantity of Fly Cutter (piece) |
2 |
2 |
2 |
2 |
Rotary Speed of Cutter Roller (r/min) |
592 |
590 |
650 |
500 |
Maximum Diameter of Cutting Wood (mm) |
160 |
230 |
300 |
450 |
Size of Cutter Size (mm) |
30 |
30 |
30 |
38 |
Capacity (t) |
5-9 |
7-12 |
9-18 |
12-20 |
Power of Main Machine (kw) |
45 |
55 |
110 |
200-250 |
Power of Feeding Roller (kw) |
2.2-3 |
3-4 |
4-5 |
7.5*2 |
Power of Oil Pump (kw) |
1.5*1 |
1.5*1 |
1.5*1 |
3*1 |
Weight (kg) |
3590 |
5030 |
7000 |
11840 |
Dimension (mm) |
1470*1550*970 |
1800*1900*1210 |
2200*2150*1500 |
3670*2517*2050 |
Conveying Power (kw) |
3 |
3 |
3 |
3 |
