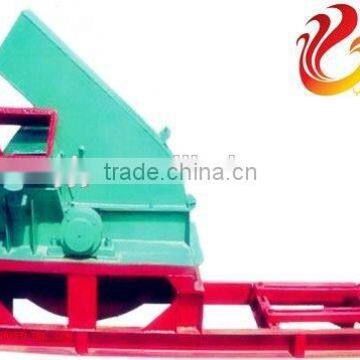

Mobile Wood Chipper With Belt ConveyorUS$ 100 - 60,000MOQ: 1 Unit
-
European Style Wood Chipper With CEUS$ 100 - 60,000MOQ: 1 Unit
-
Portable Wood CrusherUS$ 5,000 - 46,000MOQ: 1 Unit

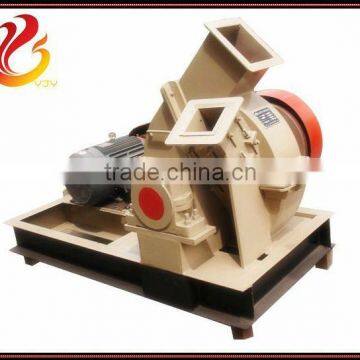

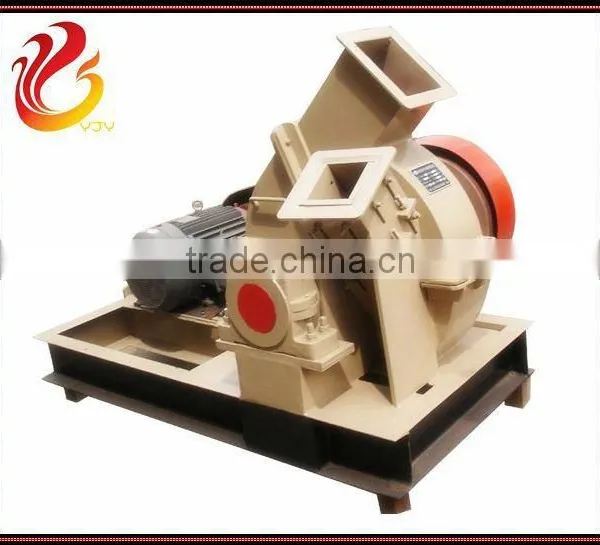

Disc Wood Chipper
The design of this series disc wood chippers allows disc to be easily moved towards or away from the anvil, this provides a very tight set-up clearance between the knife and the anvil for producing excellent wood chips. The disc wood chippers are supplied with face-mounted knives and wedges for a damage-resistant, simple knife package.
By the processing, these feed-in materials are turned into high quality, uniform, and multi-application wood chips, which are ideal materials for the manufacture of particle board, MDF and paper pulp. The chips are also well suited as fuel for high intensity burning in modern heating plants.
Parameter of Disc wood Chipper
Model | 600 | 800 | 1000 | 1400 |
Diameter of Cutter (mm) | 600 | 800 | 1000 | 1400 |
Rotary Speed of Cutter (r/min) | 970 | 740 | 740 | 650 |
Length of Wood Chip (mm) | 2-50 | 2-50 | 2-50 | 2-50 |
Thickness (mm) | 2-15 | 2-15 | 2-15 | 2-15 |
Way of Feeding | Declination | Declination | Declination | Declination |
Feeding Size (mm) | 220×240 | 250×250 | 350×380 | 380×400 |
Capacity (t/h) | 1-3 | 3-5 | 4-7 | 5-9 |
Power (kw) | 15 | 30-37 | 37-45 | 45-55 |
Maximum Diameter of Cutting Wood (mm) | 240 | 250 | 380 | 400 |
Weight (kg) | 1192 | 1680 | 2720 | 3300 |
Dimension (L*W*H)mm | 2002×1175×1360 | 2008×1400×1492 | 2208×1600×1692 | 2208×1838×1850 |
