J3 High Efficiency Wood Log Crusher Machine

J3 High Efficiency Wood Log Crusher Machine photo-1
US$ 1,000 - 6,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
ALLANCE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai etc China port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name ALLANCE
Model Number ALC
Voltage 380V
Power(W) 45KW
Certification CE, ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

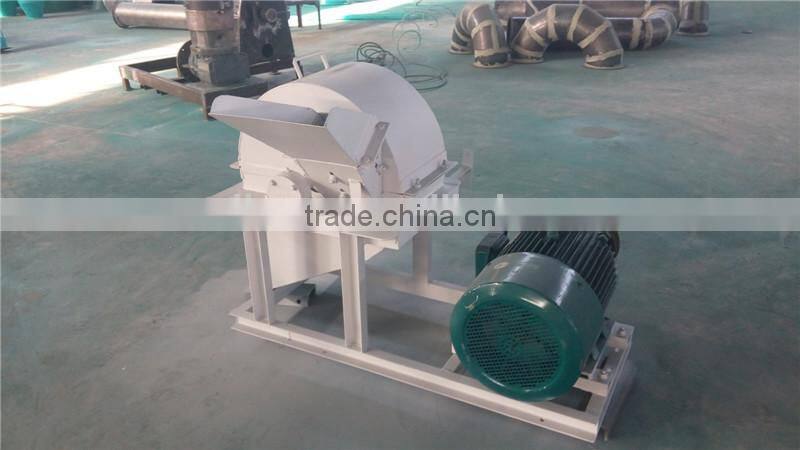

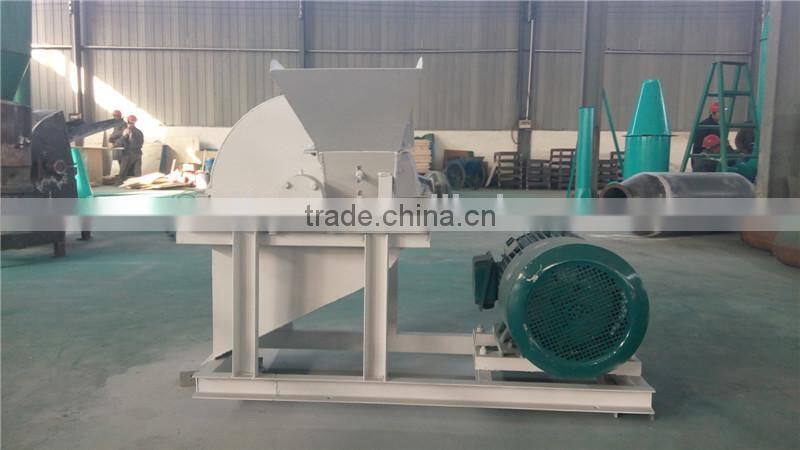

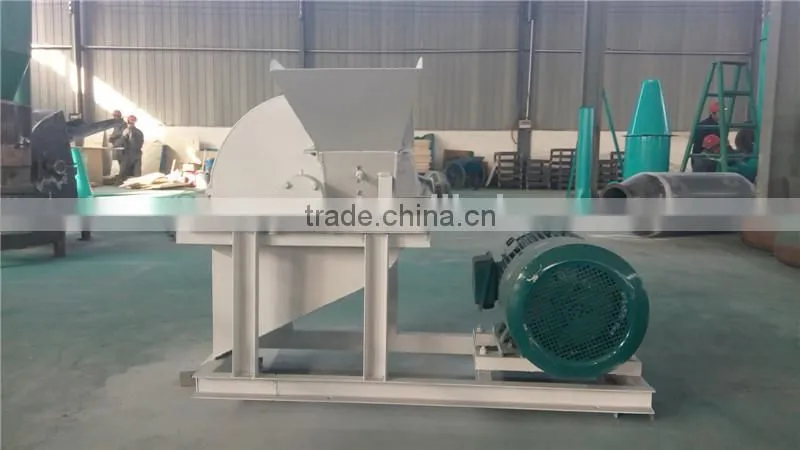

J3 High efficiency wood log crusher machine



Product Description

 Brief Introduce: wood log crusher

1. Crushing is the first and also the important step to concern.



2. There are two types of wood crushing machine available for make suitable size sawdust .

The choice of proper model depends on the types and size of your raw material.



3. Wood crusher is designed to crush wood branches, twigs, limbs as well as cellulosic stalk

materials like bamboo, couch grass, corn stalk, sorghum stalk, etc.

It is suitable to crush wood material with diameter of 50-200mm and width of 200mm.

For wood material with diameter of less than 50mm,you can choose wood hammer mill.



Advantages: wood log crusher

1.Our wood grinder combines both chipping and crushing, so there is no need to use wood

chipper for pre-processing of wood logs. The output by this machine is sawdust which can

 be further made as wood pellets.



2.Adopts best bearing which can guarantee a long working life a reliable operation.



3.Wide application in crushing wood materials with diameter of 50-200mm and width

of 200mm.



4.Highly eco-friendly and energy-saving.



How to Crush Wood Material?  wood log crusher

Wood crusher works in this way: because of knives cutting and high speed airflow impact, wood

materials are smashed and crushed and can be screened at the same time.

During knives cutting, rotors rotates along with knives cutting direction and creates high speed

airflow. Wood materials speed up to be smashed and at last crushed to the required size.



Choose the Most Suitable Wood Grinder/ wood log crusher

Its necessary to use a wood crusher if your raw material is raw wood of larger size. Wood

crusher can process raw wood with size less than 200mm(diameter) and moisture below

 30%. After crushed, the output size can reach diameter 3-5mm , which is suitable for

further drying and pelletizing.



Parameters: wood log crusher

Model

Power

Capacity

Raw wood moisture

Raw wood size

Dimension

ALC11

11 kw

0.4~0.7 t/h

30~50%

50~150 mm

1300*900*1000 mm

ALC15

15 kw

0.6~1 t/h

30~50%

50~200 mm

1300*900*1000 mm

ALC12

22 kw

1~1.5 t/h

30~50%

50~250 mm

1400*1540*1500 mm

ALC10

30 kw

1.5~2 t/h

30~50%

50~250 mm

1400*1540*1500 mm
