Complete set whole wheat flour milling machines with price for whole meal whole wheat flour milling with bran

Specifications

Milling machine for whole wheat flour

Whole wheat flour is when milling wheat , only need crush and don't  remove bran program, the whole grain include wheat bran and the germ  In the wheat bran, it consists of high-grade cellulose fibres of invariably high nutritional value. The bread that made with whole wheat flour has more wheat original stay on the taste than ordinary white bread , and the bran part contains extremely rich vitamin B1, B2, B6, pantothenic acid.

Features of the line

1.Roller mills are manufactured precisely and controlled by pneumatic/electric mode. It can make better grinding effect comparing with other ordinary mills

2.Complete sets of  flour grinder mill adopt various configuration modes for different choices. There are streamlined design, reasonable layout, beautiful performance . It can be installed on a steel frame structure or in a building structure.

3.The  flour grinder mill machine is with advanced technical process and flexible adjustment. It can produce whole wheat flour and also grade flour by changing the milling machine.

4.Perfect after-sales service supplied for complete set of whole wheat flour mill.

Production line Technological Process:

Whole wheat bread flour:  the production of wheat cleaning processes similar with the grade wheat flour production cleaning process, but the milling process is different. Whole wheat flour milling process is very simple and  short.  the  process with powder machine alone can be crushed into whole wheat flour, wheat  grade flour milling process is longer, need multichannel grinder peace screen respectively grinding and sieving,and  produce a very refined flour bran content.


Cleaning part: Raw grain of wheat → Efficient vibrating screen+aspirator → magnetic separation → wheat scourer+aspirator → plansifter+aspirator → destoner+ aspirator → magnetic separation → destoner wheat washer → wheat wetting  →  wheat scourer+aspirator  → magnetic separation  → clean wheat

Milling part: Clean wheat → micron mill → checking sifter → whole wheat flour → magnetic separation → packing

The main machine display

The line machine includes:elevator, magnetic selector, combination screen, wheat washer, wheat scourer, the plan rotary screen, network, micron mill etc.

Cleaning part: the cleaning part of the whole wheat flour is the same as the configuration of the grade flour line.

Milling part:Micron mill, the finess could reach 120-500 class

This machine mainly used for a variety of whole grain powder production, nutrition powder production. it has the advantage of high yield, fine degree and it reaches more than 500 mesh. The fineness of the products are adjustable, low milling temperature make sure that trace element is not lost, so it is especially suitable for wheat corn, coarse grains, wheat whole grain powder of heat-sensitive materials powder milling. The machine is Turbine turbulence fine crusher

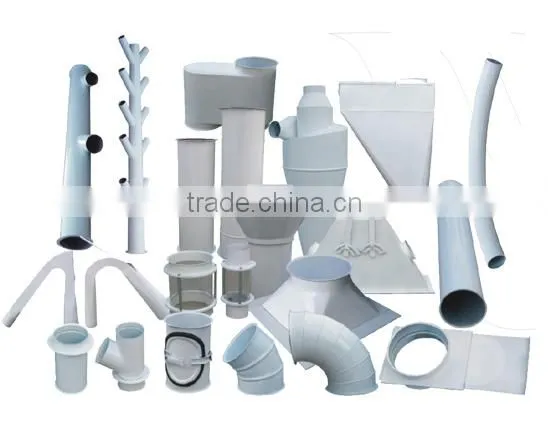

Conveying part: Precast Pipe

This series of products are widely used in grain processing plants and for air conveying and dedusting in feed plants. Easy installation, change and use, according to clients' requirements, they are made of stainless steel, carbon steel and glass with different colors of baking finish or spray paint,which turn out more exquisite, beautiful and tightly sealed.

Final product:  whole meal

Our company is one of  china most professional and honest grain processing

equipment company. Our senior engineer has 17 years work experience and 70% domestic grain processing line is designed by our technicians and we are sur

e of offering you fittest technology with the most competitive prices.We also offer the following grain production line.

20t/d - 2000t/d Series of corn product line (flour)

20t/d - 2000t/d  Series of Dual corn product line (Grits, flour)

20t/d - 2000t/d Wheat flour milling production line

20t/d - 2000t/d  Series of Multi corn product line (flour,grits,germ)

20t/d - 2000t/d Whole wheat flour (with wheat bran) production line

Our Commitment

We provide precise design proposal. Including detailed quotation List, CAD flow chat,technological index, installation diagram,and provide installed production line video and photos for customers reference.

We provide standard shipping wooden package, full set of equipments photos before and after packing goods.also, full set of shipping documets sent by post. Engineers is available to install machine oversea.

Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes,man-made problems, etc will be responsible for clients-self.
