Ensure capacity 50TPD wheat flour milling for fine wheat flour

Specifications

50TPD  wheat flour milling

Brief introduction of 50tpd wheat flour milling plant line

The flour milling plant fits for the production of tailored flour and all-purpose flour. The finished flour is  usually used to produce bread, biscuit, spaghetti, instant noodle, etc

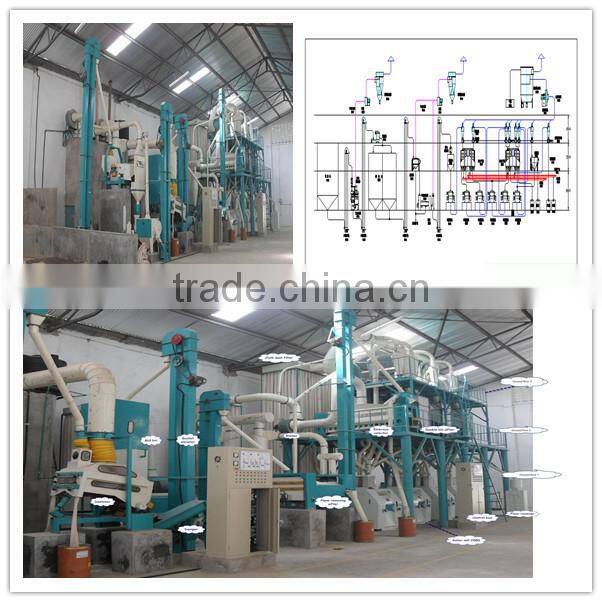

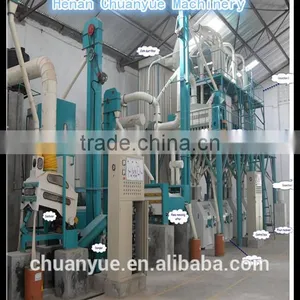

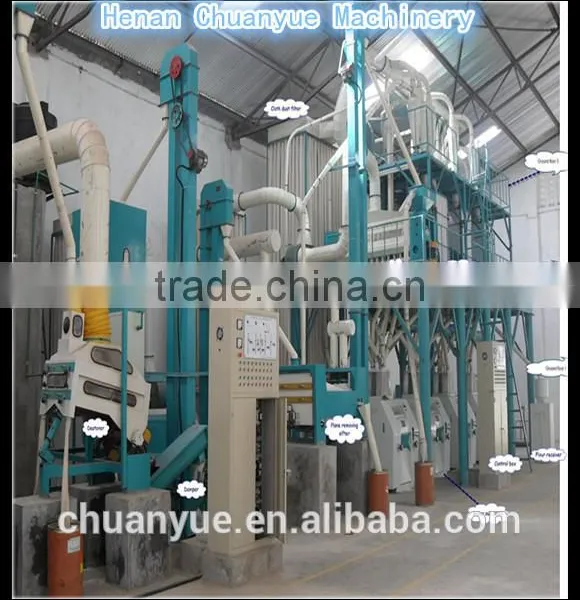

The machines of this series of compact wheat flour mill are designed and installed together with the steel structure support. The main support structure is made of three levels: the roller mills are located on the ground floor; the sifters are installed on the first floor and the cyclones and pneumatic pipes are on the second floor.





50TPD wheat flour milling plant line include four parts



1.Raw wheat cleaning part

This part includes Bucket lifting, Combined cleaning sieve,  magnetic separator and dampening,  Low-pressure fan etc. It is mainly to remove the ensure impurities in the screen material, also can remove the gravel the gravei in the material and clean p the surface impurities. And adjust wheat moisture.



2.Pure wheat cleaning part

This parts in clude bucket lifting, wheat scourer, rotary sieve classifier,  magnetic separator, low-pressure fan etc. It manily clean the surface of the wheat,  ensure that the play  ash  content  of wheat finished points  can reach to the standard. And through  drive  shaft makes the  sifter  planar rotating  to  separating  the impurities from the grains.



3. Milling Part

It includes 6 pieces milling machine and two pieces double-bin sifter to mill the wheat and separate the flour and bran.



4. Packing part

We provide quantitative packing machine or middle scale machine.  This part can be manual one

also can be auto one, it can be designed according to requirement and machine capacity.

Parameters of output and machines

Products:      fine wheat flour;

Yields:           fine wheat flour 75%-80% ; huskers 20%-25%, the finess and grade could be adjusted according customers' requirements

Sand content: <0.02%; Metal content:<0.003g/kg; Water content: 13.5-14.5%

Totaled power:  135.2kw

Machines totaled weight: About 35t

Installation steel structure dimensions:  26*8*5m

Characteristics of our production line:

1. Simple structure and low investment, offer different configuration according requirements

2.Professional craft,low noise and dust.

3. Our advanced enginner has 17 years design experience in domestic

4.The core machines are developed by ourself, have a patent

5. well reserved after service.

Visiting our factory before making the order

We offer technology craft and installed the line

Some main machines of this line

1.Triple cleaning sieve: Through the beat function of the wheat scourer, brusher to remove dust sand small seed, bacterial count and insect seed.

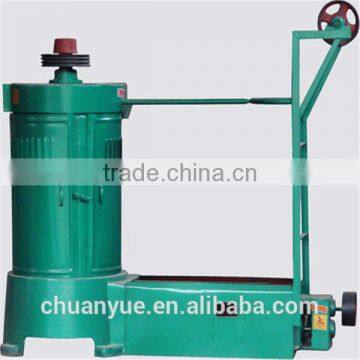

2.Damper: Dampening the wheat bran before mill to ensure the bran's integrity during the milling processing, avoid the bran going into the flour to keep flour quality.

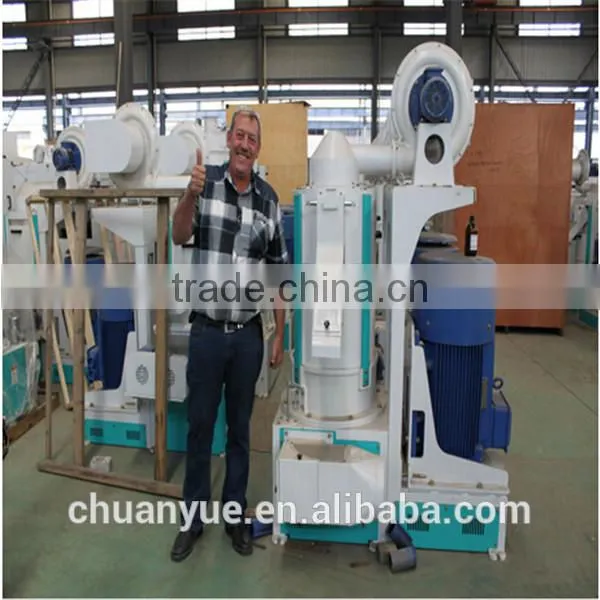

3.Wheat scourer: clean the surface of the wheat, ensure that the play ash content of wheat finished points can reach to the standard.

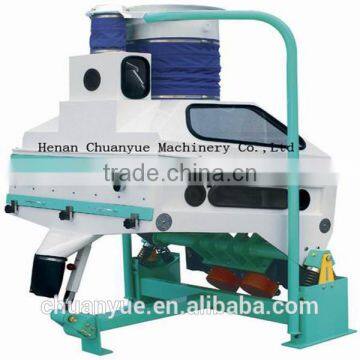

4.Destoner: Mainly remove stone in the wheat to protect them milled into the flour and also protect the roller on the milling process.

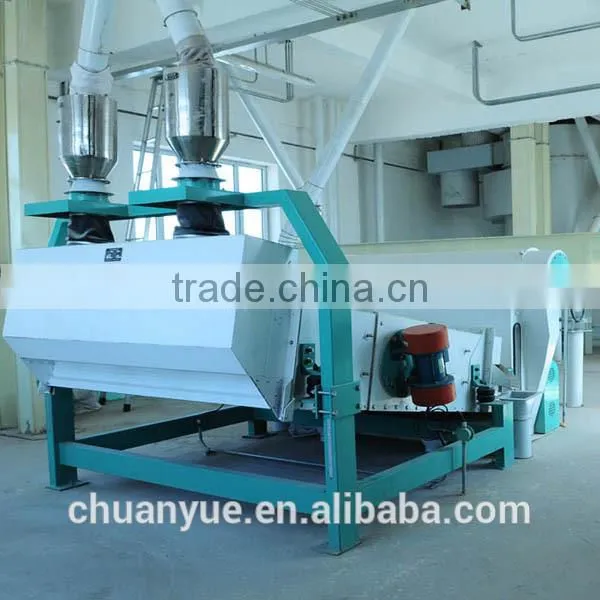

5.Rotary sieve classifier: through value drive shaft makes the sifter planar rotating to separating the impurities from the grains.

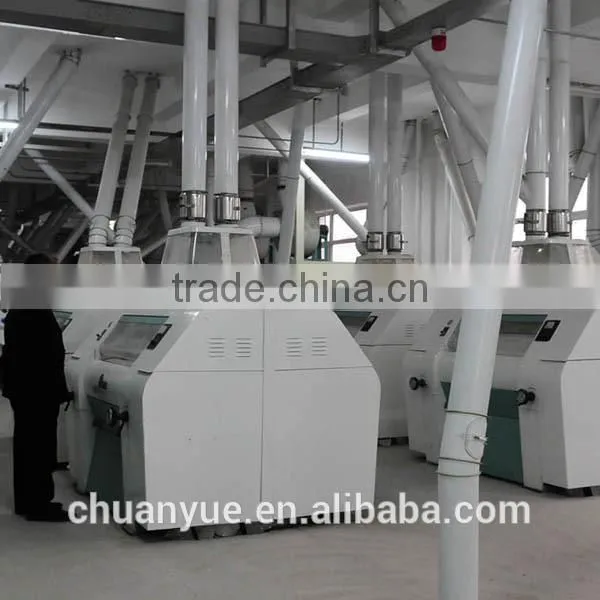

6.Mill: Mill the wheat to break the integrity by the roller moving
7.Double-plan sifter: To separate the flour and bran, also separate large size and small size to enssure flour quality.

8.Wheat bran brushing machine:  separate the fine particle from the surface  of wheat bran.  Thus  reducing the rate of the bran, enhance the rate of the powder.

9.High pressure fan: offer wind force, wind pressure

Loading and shipping

Establishing friendship with customers Henan Chuanyue Machinery Co.,Ltd is one of china most professional and honest grain processing equipment company.Our senior engineer has 17 years work experience and 70% domestic grain processing line is designed by our technicians and we are sure of offering you fittest technology with the most competitive prices.

1. What should you do before buy a flour mill?

Before buy the flour mill, pls check the regulation of your local place to determine what permit and certificates you need. And what is the capacity you plan to buy?  And when send email for us, tell the detailed informations of your required flour mill parameters, such as the capacity (t/h), the local voltage etc and your buget. So we can give you the best products.

2. How to choose a flour mill?
Two of the features that affect prices are the material of the flour mill, the noise level and their adjustability. Generally, our turn-key project of flour mill is made of stainless steel, operate with low noise level, have lower heat production, generate less dust in the air.

3. Do you provide flour mill plant?
 Yes, we will give you our suggestion, but final decision is depend on you. For a flour mill with capacity less than 50T/D, the work shop is simple. Just design it by the dimension of product line. And above 50T/D flour mill plant, we will ask your requirement and advise accordingly.

We also offer and design the following grain production

Different capacity Series of corn product line (flour)

Series of Dual corn product line (Grits, flour)

Series of Multi corn product line (flour,grits,germ)

Series of Dual corn product line (flour,germ)

Corn germ oil production line

Wheat flour milling production line

Whole wheat flour (with wheat bran) production line

Bbuckwheat processing line

Corn gluten flour production line

If you need more technical information and exactly price, please contact with us freely.

Our professional technique team will give you the best service.
