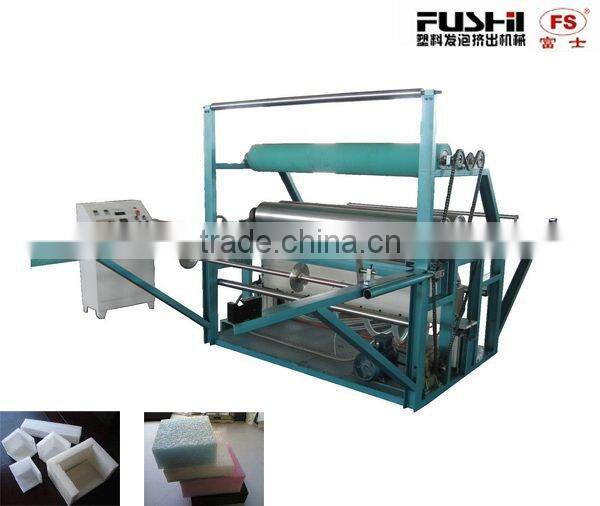

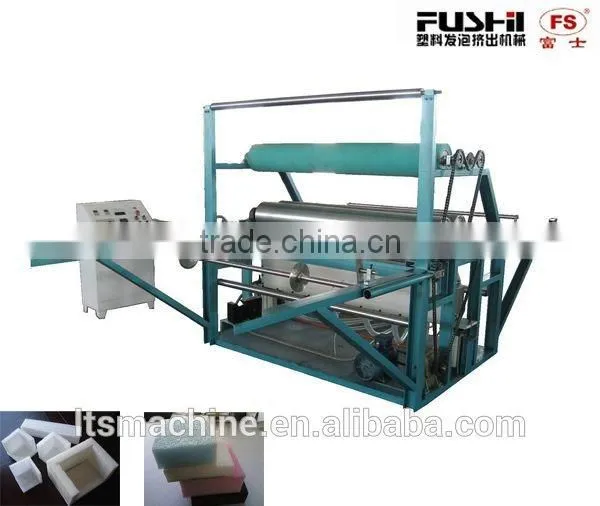

Customized PE Foam Sheet Bonding Machine With Cutting

Customized PE Foam Sheet Bonding Machine with cutting

1,This kind of machine shows its differences with normal type mainly at the end of processing.Pls check the following:

More than one layer sheet→Unwinding→Heat Laminating

      Carriage Belt← Cutting← Pulling                          Winding→Inspection→Packing

2,Main Parameters:

Cutting method: Fixed-length cutting

Cutting motor: 3KW

Fixed-length cutter :3KW

Cutter moving motor :1.5KW

Cutting reciprocating motion motor :1.5KW

Conveyor belt motor :0.75KW

3,Production Description:

FS-FPM-ZH Series foam sheet (pearl cotton) thickening machine is essential special equipment for deep processing. It is used to thicken double or multi-layer when the thickness of once forming sheet is insufficient. The thickness after processing can reach 100mm thus expand the applied range of PE foam sheet.

FS-FPM-ZH Series foam sheet (pearl cotton) thickening machine is essential special equipment for deep processing. It is used to thicken double or multi-layer when the thickness of once forming sheet is insufficient. The thickness after processing can reach 100mm thus expand the applied range of PE foam sheet.

4,Structure Characteristic:

1. The thickening machine consists of unwinding,heating bonding, roll-in and rewinding, the structural design is close-knit and reasonable, running steadily.

2. The main motor power of thickening machine is 2.2kw and it adopts frequency control,manipulation easy to adjust freely.

3. Heating box adopts pneumatic up and down,the flame size is controlled by valves.electric open by spark.

4.The Winder adopts torque motor control and automatic tension.

5,Advantages:

*High Quality with CE and ISO certifications,Low Maintaince Rate

*Best service:a 24hours service/good after-sale service and engineers for overseas

*Competitive Price,Ensure the lead time

*Adopt domestic and foreign advanced equipment and technician,ensure the reliability of operation
