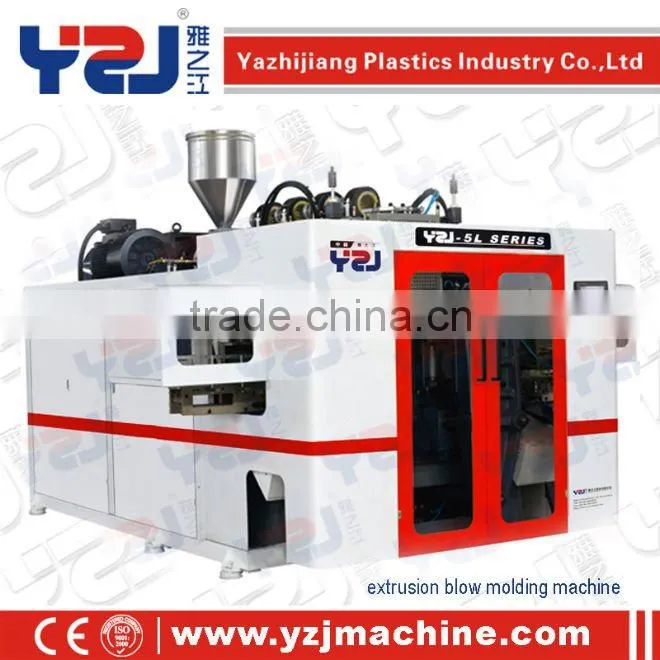

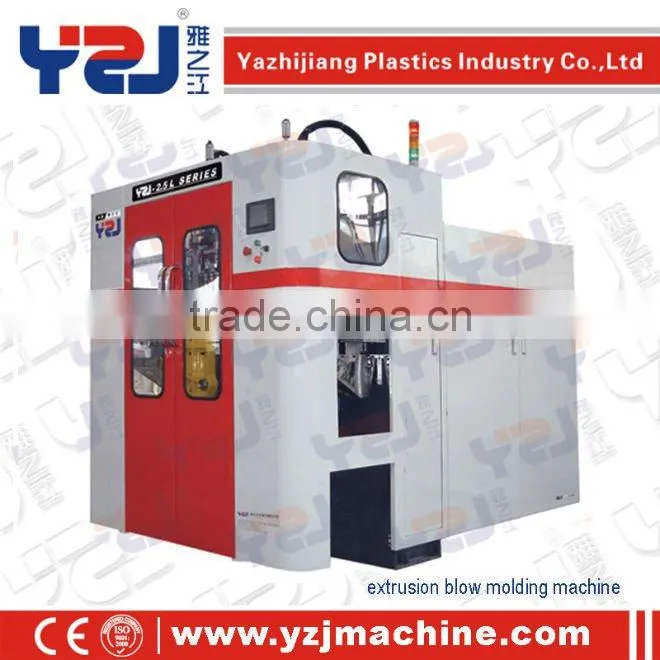

Extrusion Blow Moulding Machine
Extrusion Blow Moulding MachineTechnical parameters
Machine Type: YZJ-5L DH | ||
Parameters |
Unit |
Specifications |
Max. Product Volume |
L |
5 |
Production Capacity |
Pc/h |
1000 mold |
Screw Diameter |
mm |
60 |
Screw L/D Ratio |
L/D |
22 |
Plasticating Capacity |
Kg/h |
80 |
Max. Die Head Diameter |
mm |
145 |
Central Distance of Four-Die Head |
mm |
80 |
Mold Thickness Range |
mm |
148-508 |
Max. Size of Mold (width*height) |
mm |
370*390 |
Clamping Force |
KN |
60 |
Size of Machine (length*width*height) |
m |
2.3*3.7*2.7 |
Weight of Machine |
Kg |
7000 |
………………………………………………………………………………………………
Features:
1) For packaging from 200ml to 5 liters capacity
2) Double station high performance continuous extrusion blow molding machine
3) Hydraulic proportion control with parts from YUKEN
4) PLC electricity digital control from Mitsubishi with MPT data setting unit
5) Inverter with harden surface gear box
6) Effective energy saving screw design
7) Central feeding die head overcomes welding line problem
8) Large arm and joint operation type clamping unit with large and uniform clamping force
9) View stripe and two layers production possible.
