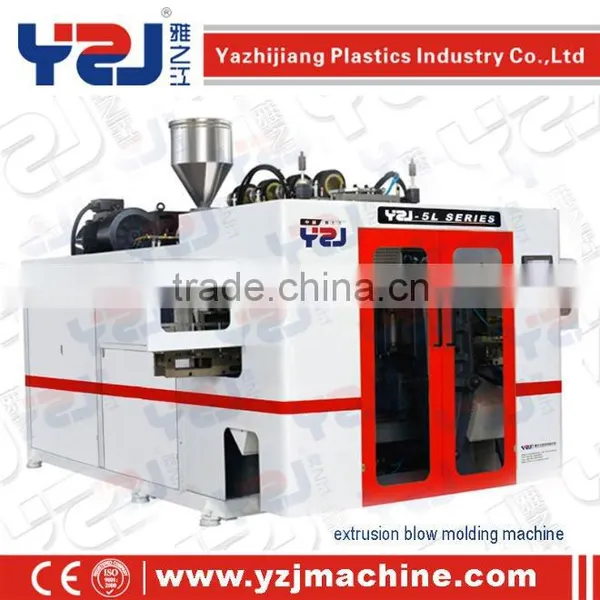

5ml-1L Automatic Pplastic Blowing Machine
YZJ's minimum bottle blow moulding machine, characterized small size, high speed, stable and energy-saving functions. There are automatic water setting, rotary bottle mouse cutting setting, conveyer belt facility and automatic scraps collecting system, there are single mould head, double mould heads, three mould heads, four mould heads and six mould heads to be selected, the daily output (24 hours) reaches proximately 20,000 to 120,000; it can produce 0.01-1L plastic hollow products.
This kind of machines scan also produce PE,PP,PA,PC,PVC,PETG,ABS,EVA,K and so on.
Screw Diameter |
Mm |
55 |
Screw L/D ratio |
L/D |
25:1 |
Capacity PP/PE |
Kg/hr |
65 |
Capacity PETG/PC/PVC/PS |
Kg/hr |
40 |
Screw speed of rotation |
r.p.m |
10-85 |
Extruder heating power |
Kw |
7.2 |
Screw heating zone |
Zone |
3 |
Extruder driving power |
Kw |
15 |
Max container capacity |
L |
2.5 |
Number of heating zone |
Zone |
3 |
Power of die heating |
Kw |
2 |
Max die-pin diameter |
Mm |
100 |
Center distance of die |
Mm |
120/130 |
Clamping force |
Kn |
55 |
Pltaen opening stroke |
Mm |
150-350/380 |
Platen size |
Mm |
300*320 |
Max mould size |
Mm |
390*320 |
Mould thickness |
Mm |
150-180 |
Moving-mould distance |
Mm |
400 |
Oil pump drive power |
Kw |
11 |
Total power |
Kw |
35.2 |
Dry cycle |
S |
4.5 |
Air pressure |
Mpa |
0.6-0.8 |
Air consumption |
M³/min |
0.8-1 |
Average energy consumption |
Kw |
19 |
Cooling water usage |
M³/hr |
2-3 |
Fuel tank capacity |
L |
200 |
Machine dimension (W*L*H ) |
M |
2.5*3.5*2.5 |
Machine weight |
ton |
6 |
|
|
|
Model |
YZJZQ-96 |
|
Screw rod rotation speed |
r/min |
25-46 |
Extrusion amount |
g/h |
40-120 |
Machine head model |
|
Right-angle |
Machine head heating power |
KW |
2 |
Cooling mode |
|
Water-cooled |
Primary traction power |
KW |
0.75 |
Traction speed |
m/min |
10-100 |
Average heating power for heating power |
KW |
7.5 |
Secondary traction motor power |
KW |
3 |
Traction speed |
m/min |
20-200 |
Linear speed for empaistic roller |
m/min |
20-200 |
Case-formed water slot length |
mm |
3000 |
Electric motor power for water drainer |
KW |
0.05 |
Motor power for main extruder |
KW |
7.5-11 |
Motor power for subsided extruder |
KW |
5.5 |
Cast-formed |
|
Water |
curliness |
KW |
0.75 |
Curling linear speed |
m/min |
10-300 |
Curling dial number |
Set |
2 |
Machine weight |
Kg |
2.8 |
Dimension. |
m |
14×0.48×1.8 |
