bottle blow machine and 5 gallon pc water bottle making machine
The machine is human and machine interface that is easily operated. There are single mould base, double moulds base, single mould head to six mould heads, single layer to six layers, multi-layer with liquid level line, mold inside logo, air-pressing water setting, automatic scraps collecting system, the daily output (24 hours) reaches approximately 12,000 to 60,000; it can produce 0.5-2.5L plastic hollow products
bottle blow molding machine parameter
Max. Product volume |
25 liters |
Dry cycle |
600pc/h |
Screw diameter |
75mm |
Screw L/D ratio |
25 L/D |
Screw drive power |
30 KW |
Screw heating capacity |
16 KW |
No.of heating zone |
4 zones |
Output of HDPE |
100 KG/H |
Oil pump drive power |
22 KW |
Clamping force |
210 KN |
Max.size of mold |
350-780mm |
Mold stroke |
550X650mm |
Max.die diameter |
280mm |
Die heating power |
5.3 KW |
Die heating segments |
4 zones |
Blowing pressure |
0.8mpa |
Air volume |
0.8 M³/MIN |
This kind of machine can also produce the material of PE,PP,PA,PC,PVC,PETG,ABS,EVA,K and so on .
Brand |
YZJ |
Product |
Fully automatic plastic blow molding machine |
Type |
Xsj-1 |
Advantages |
Fast-speed, simple operation, save energy and the price is cheap |
The composition |
Extrusion, molding, orifice-cutting, removing the tailing |
What goods it can product |
Middle-hollow bottles such as square milk bottles,round milk bottles, popsicle bottles, jelly bottles, medical medicine bottles, pesticide bottles, cosmetic bottles, huoxiangzhengqi water bottles, eyedrop bottles, test-tube, straw, plastic straw etc. |
Extruder Technical Parameter List | |
Screw diameter mm |
65 |
Long-radius rate |
1:25 |
Extrusion electric Machinery power kw |
7.5 |
Screw rotation speed rpm |
40~80 |
Plasticizing capacity kg/h |
45 |
Heating power kw |
11 |
Molding Machine Technical Parameter List | |
Lock mould type |
Pneumatic lock mould |
Max moulding strength kg |
700 |
Mould plate dimension(width*height) mm |
380*600 |
Width between mould plate mm |
310 |
Max diameter of the machine |
80 |
Production capacity PCS/day |
50000~100000 |
Blowing pressure Mpa |
0.6~0. |
Cooling water pressure Mpa |
0.8 |
Gas consumption quantity m3/min |
0.4 |
Electric machinery power kw |
10LW |
| |
Sichuan Yazhijiang plastic industry Co., Ltd.(hereinafter refers to YZJ)
1. located in Ziyang " capital of China's energy-saving", covering an area of 80,000 square meter.
2.Established in 1995.
3. 12 elements os (yzj) yazhijiang group.
4. Technology Center,Market Centerstaff accounted for 52%of the total number of companies.
5. Our products not only have good sales domestically but also with good reputation in overseas market.

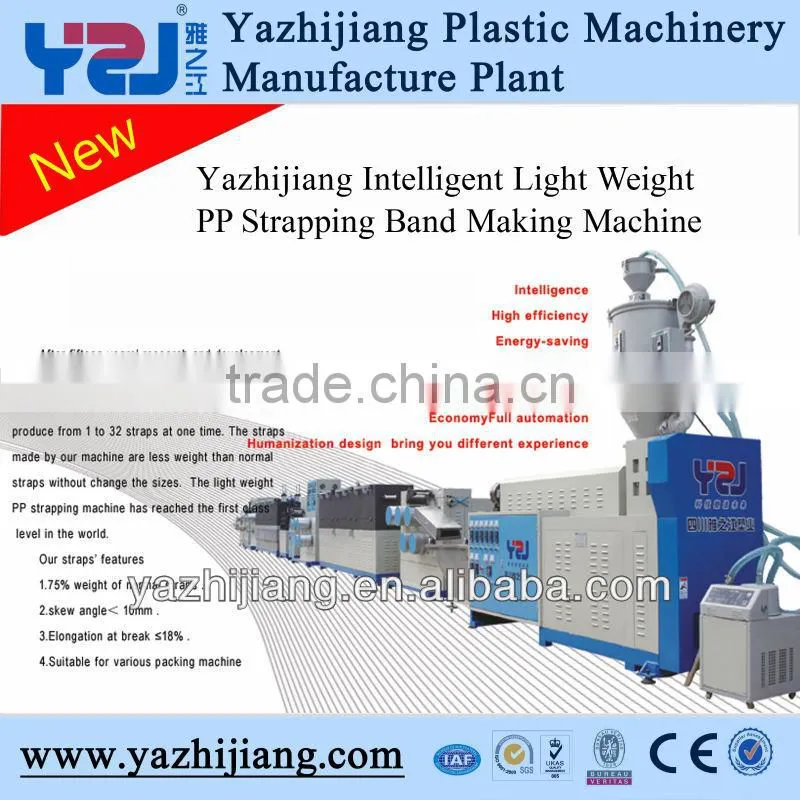

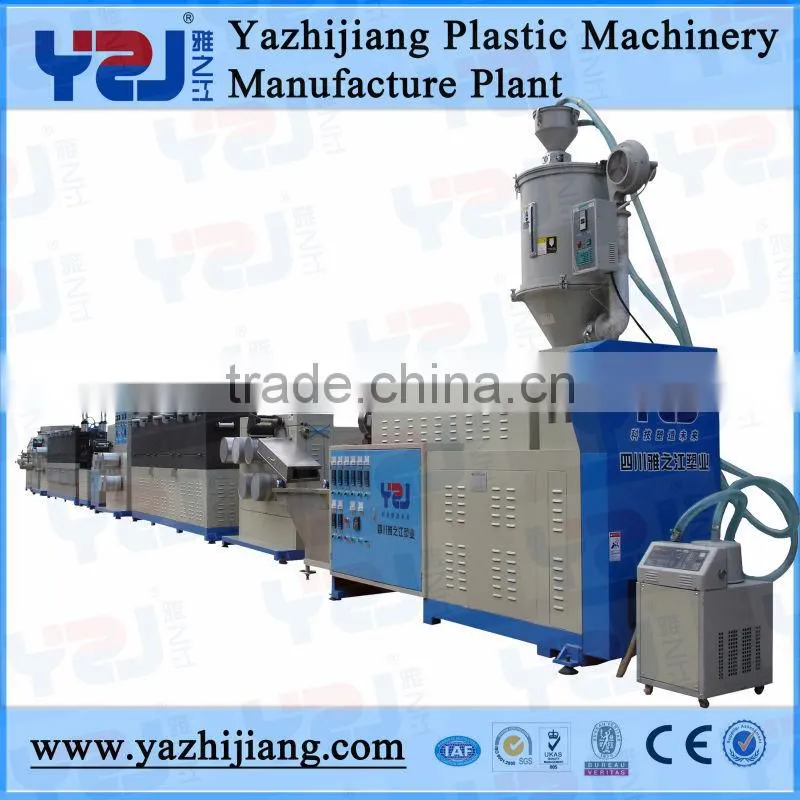

Over 20 years’ research and development, YZJ is becoming a professional supplier devoted to the designing & production of plastic machine and plastic product.Our main products includes: Plastic recycling line,PP straps making machines.Especially,we applied technology patent for our light-weight PP straps making machines.
Trade Assurance
Our company Sichuan Yazhijiang Plastic Industry Co., Ltd. has joined the Alibaba trade assurance system. This measure
is that the Alibaba comprehensive assessment on each suppliers’ according to the international station's
basic information and trade turnover, etc. and give a certain amount of credit protection, to help suppliers to provide buyers
cross-border trade security. It helps to protect the interests of buyers when the seller violates the trading rules which they
formulated early. When the buyers failed to recive their products, Alibaba will pay the full amount of the loss of customers.
For help you to choosing a proper machine and saving your time, please read these bellow guides carefully
1). what kinds of plastic machinery do you need? Dose it including washing and crushing machine?
2).What is the raw material? PP, PE, ABS, PVC or PET.
2). what capacity do you want? (Kg/h)
3). What is the max and min size of the finish products .For example, the size of the granules.
4) What is the electric device you need? Siemens, Omron or domestic?
5) When do you want the machine? (Times for delivery)
More machines you may interested in:

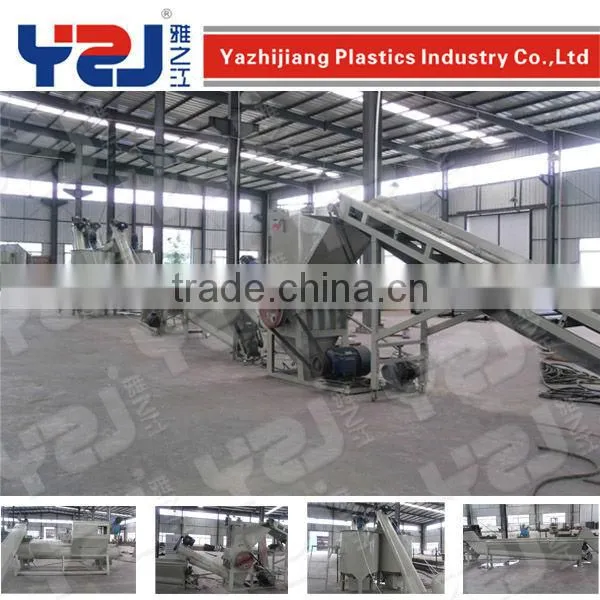

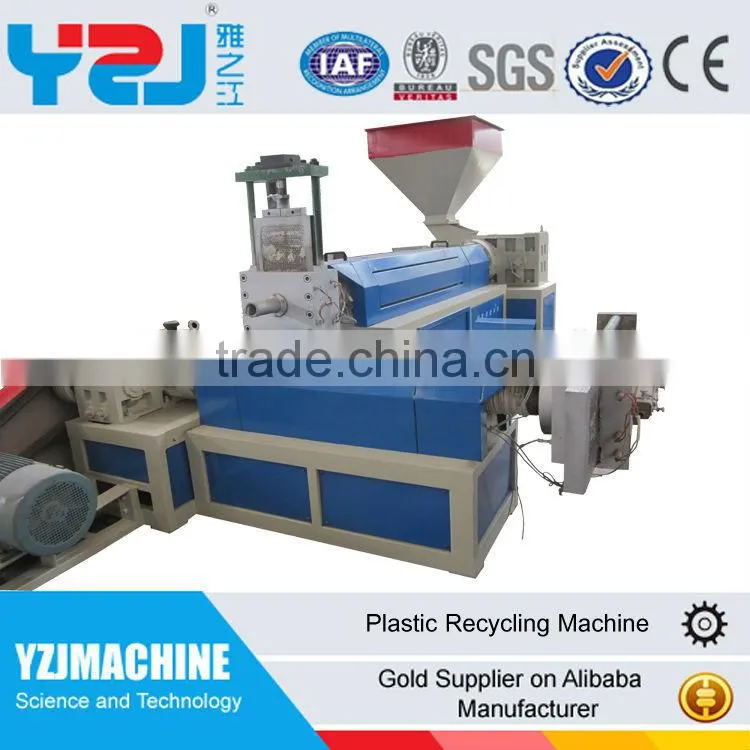

1.waste plastic recycling machine 2.Thin and light pp strap making machine
3.plastic strap making machine 4.PET flakes making machine
Q&A
Q: Are you a trader or a manufacturer?
A: We are manufacturers, but also vendors, We have our own producing department and sales
department all in one. Our products not only have good sales domestically but also with good
reputation in overseas market.
Q.Are you responsible for installation and commissioning?
A:Yes,we will. All customers who buy our package of equipment, we are responsible for installation and commissioning, no matter where you are.
Q: Do you have any technical supports?
A: We have a magnificent research term and development term for new project and a professional technicist term for installating and debugging.
Q: Are you have competitive price in the world market?
A: We account our cost accurately to make sure quality higher than price.
Q: How do you ensure us quality?
A: We have a quality supervision department who are reponsible for tracking and monitoring for whole production processQ. We will running every machine after finished before shipment. Optional choose by client running the machinery by material.
If you have any other question, please feel free to coctact us online or send us a massage.
