Specifications
wood cutter1.low consumption
2.Professional production
3.Good economic returns
4.Less investment,

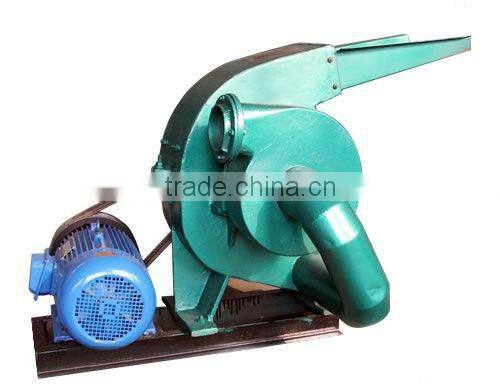

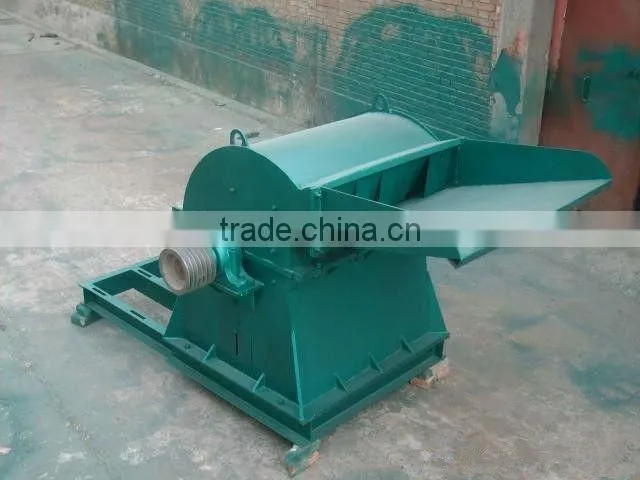

Small Wood Cutter
Brief Introduction :
Wood Cutter crusher can be used to process pine, weed tree, poplar tree, China fir and bamboo. Since this machine has a compact structure, small floor space, fine clipping quality and low energy consumption and is applicable to flowing operations, it can be widely used to the materials preparation section of medium and small sized shaving and fiber boards
producing enterprises, and also to the commercial chip production of individuals.
Structure of 2013 Wood Crusher:
2013 wood crusher is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
Main Technical Parameter of 2013 Wood Crusher:
Model |
600 |
800 |
1000 |
Note |
Power(kw) |
22+4 |
37+5.5 |
45+7.5 |
The capacity is depended on the fineness of the material and the density, generally fineness high yield is low, fineness low yield high. |
Speed(r/min) |
3200 |
3000 |
2900 |
|
Capacity(h) |
600-1200kg |
1500-2000kg |
2000-3000 kg |
|
Feeding size |
According to the raw material’s size |
|
|
|
Weight(kg) |
1300 |
2200 |
3500 |
|
Area(m) |
2.5x2.0x1.2 |
2.8x2.2x1.5 |
3.0x2.5x1.7 |
Warranty of 2013 Wood Crusher:
1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost.
After one year, parts can be replaced on favorable payment basis. We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to
accomplish your sincere requirement on time.
