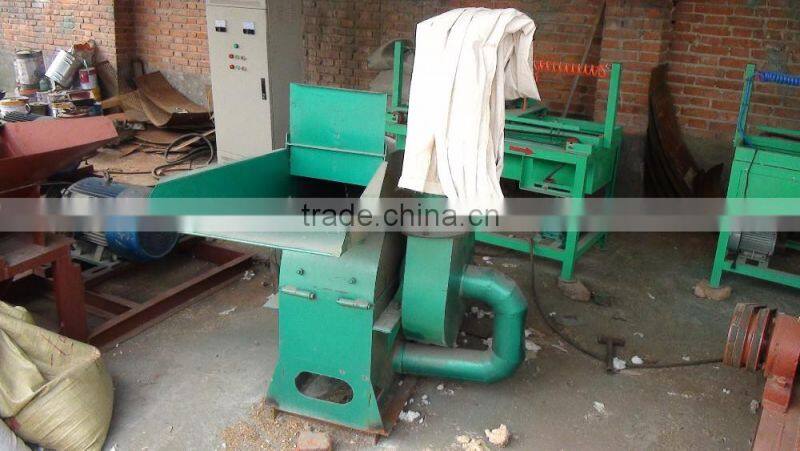

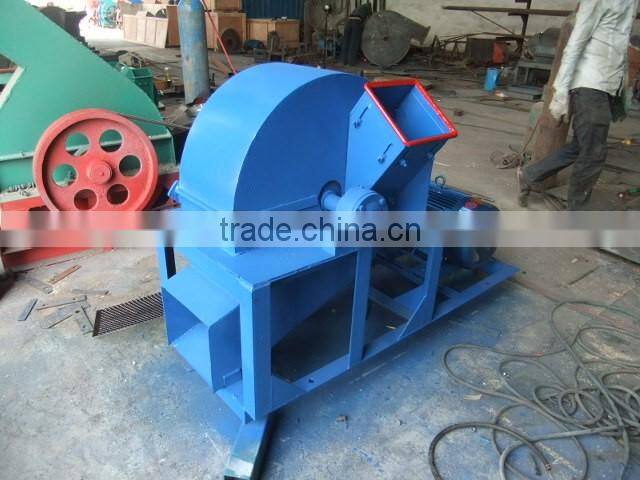

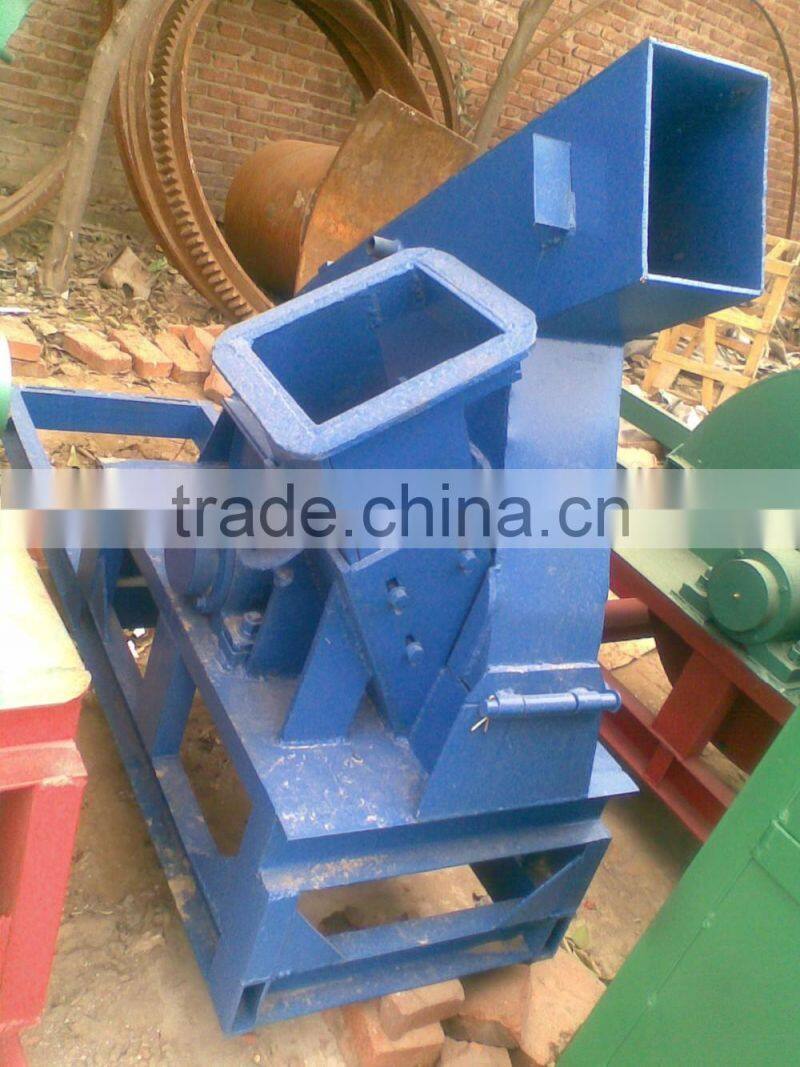

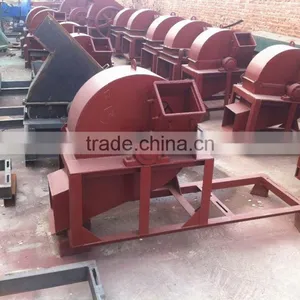

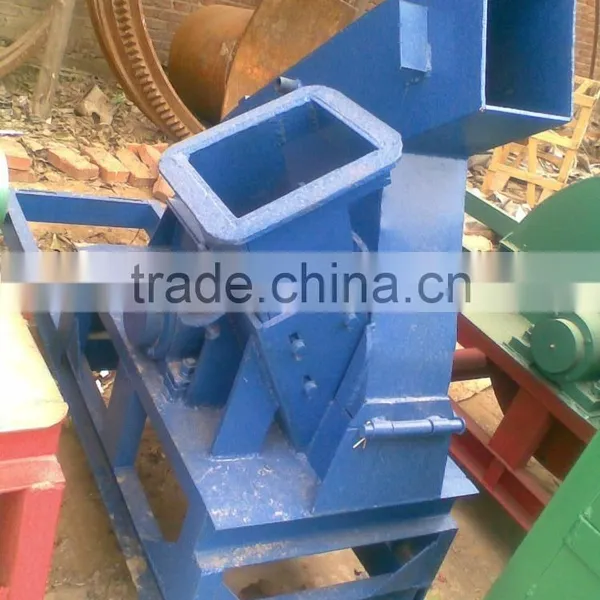

Wear Resistance, SKF Bearing Wood Chipper Machine
- 5 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card
Packaging Details
Standard export package,suitable for sea shipping
Product Description
Description of the Wood Chipper
1. wood chipper make wood logs, planks into wood chips, it is our product which specially designed for round logs, square blocks, wood staff/ wood chips is 10-30mm size, or 5-10mm wood sawdust.
2. Wood chipper is composed of base, blade roller, upper and below feeding organization, feeding equipment, hydraulic press cushion system and electric control system. easy operate, working stable, high efficiency
3. Wood chipper widely used in the raw material preparing process in the factories of flake board, fiberboard, paper making and wood chips making plant. small drum type wood chipper is the best equipment for factory's laboratory preparing material.
4. Our wood chipper include drum and disc two types: the drum wood chipper is one of our main products, chipping big wood logs from 160-450mm diameter wood logs, wood planks, it is important process in the biomass pellet production line. the biggest wood chipper capacity can reach 20-30t/h.
wood processing machine to make wood
Shredder can be make the logs, small chipper processed wood into wood shavings. The shaving is the same as that produced from the furniture factory, the automatic feeding equipment, greatly improved the speed of production, and also saves time and manpower. The wood shaving thickness can be adjustable .
Applicable for :particle board ,paper producing, wood pulp paper making , also can be used as biomass fuel , warm material in feed industry
Main specification:
Model | BX215 | BX216 | BX216D | BX218 | BX2113 |
Blade roller diameter (mm) | 500 | 650 | 650 | 800 | 1300 |
Blade pieces | 2 | 2 | 2 | 2 | 2 |
Feed inlet size (mm) | 400*170 | 540*240 | 540*240 | 680*270 | 700*380 |
Max. Raw material size (mm) | 150 | 200 | 200 | 250 | 350 |
Finish material size (mm) | 25-35 | 25-35 | 25-35 | 30-40 | 40 |
Capacity (tons) | 3-6 | 8-12 | 8-10 | 15-22 | 40-60 |
Main motor power (kw) | 37-45 | 55 | 55 | 110 | 220 |
Up and down roller power (kw) | 7 | 9.2 | 7 | 12.5 | 17 |
Weight (tons) | 3.1 | 4.40 | 4.3 | 7.22 | 12.2 |
Blade roller speed | 595 | 592 | 650 | 650 | 520 |
Total size (length*width*height)mm | 1800*1800*1150 | 2400*2300*1500 | 2650*2450*1500 | 2950*2650*1800 | 3680*2450*2050 |
FAQ:
1. What is the size of wood log do you want to process?
2. What is the capacity per hour do you need?
3. What is the output size of your wood?
Our engineers will suggest you the most suitable one for you according to your information.
We will give you factory price with full specification, so pls leave us an inquiry to know more details about price, packaging shipping and discount.
Now, please click the following contact to send us email for best offer and more details !
↓↓↓
