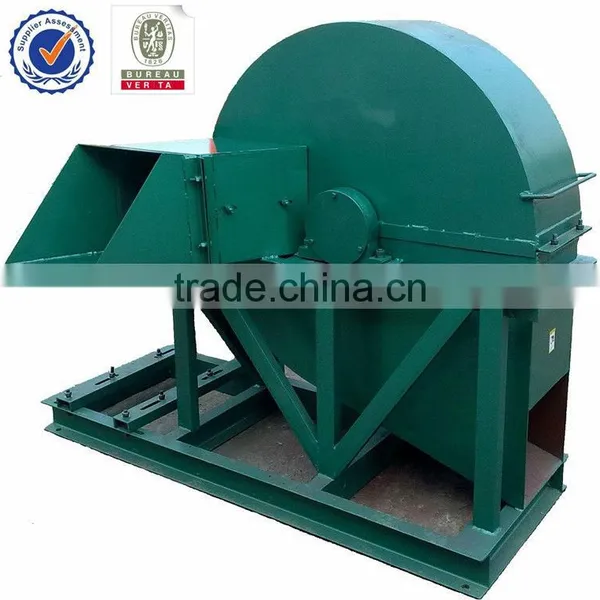

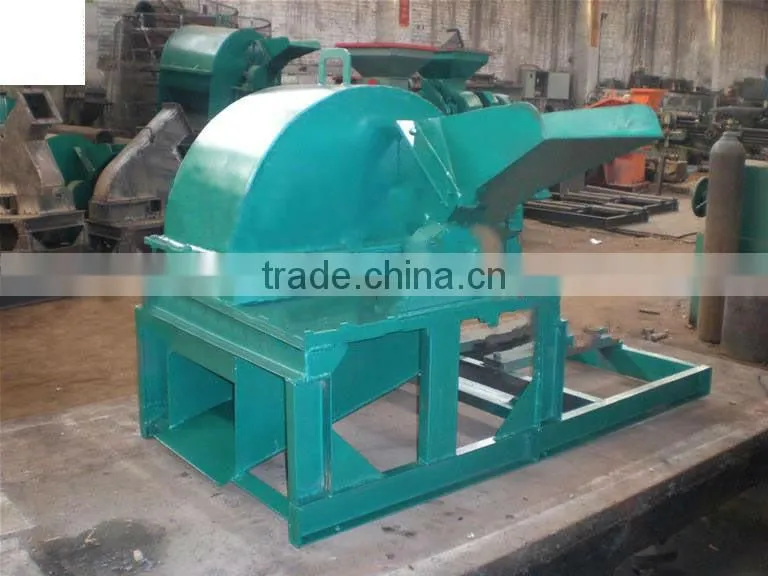

Wood Chip Crusher

FOB Price

USD $2,000 - $8,600 / Set

1 Set(Min.Order)

Supply Ability 55 Set / Sets per Month
Port any port in China
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Henan, China	Brand Name:	HK
Model Number:	multi-model	Voltage:	220V-380V	Power(W):	35KW
Dimension(LWH):	211.5	Weight:	3t	Certification:	ce
Warranty:	3 years	After-sales Service Provided:	Overseas service center available

Packaging Details

wood case

Product Description

Specifications

Wood Chip Crusher
1. Strict quality control system
2. High level automatic running
3. Easy to operate
4. With ISO9001:2008

Wood Chip Crusher

Brief Introduction of Wood Chip Crusher:

1. Wood Chip crusher is a machine which our factory latest researched and developed.

2. Advantages of this type wood crusher: reasonable design, low loss, low noise, no pollution, easy operation.

3. As soon as launching on the market, this wood crusher occupies a leading position in the wood flour machine market.

Application of Wood Crusher:

Specially used in Orchard garden , Botanical garden, Landscaping department;

1. wood, tree trunk, tree branch, straw, bamboo stick etc;

2. wooden piece, small tree branch, leaf, tree bark, feedstuff and chemical material etc material;

3. Orchard garden , Botanical garden, Landscaping department;( Trimmed branches, trunk, leaf can be crushed as fertilizer .)

4. Machine can installed on the cart or farm vehicle;

5. Engine can be electromotor,diesel engine,gasoline engine,both of them are ok for working;

6. Crushing type can be mobile and fixed-line( two-way for choice).

Structure of Wood Crusher:

Wood crusher is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of crusher machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.

Functions and Usage of Wood Crusher:
1. Use the wood crusher to crush wood into chip;
2. Use the chip dryer to take out the moisture of chip;
3. Use the Chip Forming Machine to press chip into stick;
4. Use the wood charcoal bake stove to bake the stick into charcoal;
5. Then use the wood crusher again to break the charcoal into powder;
6. Use the powder molding machine to press the charcoal powder into all kinds of shape(you can customize many kinds of mould);
7. Use the packing machine to package the shaped charcoal.
(You can choose it base your raw material,final product and wanted capacity)

Main Technical Parameter of Wood Crusher:

Model	500	600	700	800	900	1000
Cutter Head Dia.(mm)	450	600	650	750	850	950
Length of Knife (mm)	100	150	200	230	260	300
Feed Opening Size(mm)	180x200	200x200	200x250	250x300	300x400	400x500
rmp(r/min)	2600	2500	2600	2300	2000	2000
Power(kw)	7.5	11	15	22	37	45
Capacity(kg/h)	300	600	800	1500	3000	4000

Warranty of Wood Crusher:

1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost.

After one year, parts can be replaced on favorable payment basis. We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).

2. Our professional service includes: Free training, Guidance Installation and Debugging.

3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to

accomplish your sincere requirement on time.
