Specifications
Coal Rotary Drum Dryer1. High level automatic running
2. Large throughput
3. Easy to operate
4. With ISO9001
ISO Certificate and Nice Craft Coal Rotary Drum Dryer
ONE--Coal Rotary Drum Dryer Introduction:
Coal Rotary Drum Dryer is widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C).
TWO--Coal Rotary Drum Dryer Application:
1) Coal Rotary Drum Dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industry and coal slime in coal mine, etc.
2) Coal Rotary Drum Dryer can be widely used to dry various materials and it is simple to be operated.
3) Coal Rotary Drum Dryer is mainly used in building materials, metallurgy, and chemical industry, cement plant for drying of limestone slag, coal powder, slag, and clay stone.
THREE--Coal Rotary Drum Dryer Structure:
1) Coal Rotary Drum Dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring.
2) Coal Rotary Drum Dryer is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.

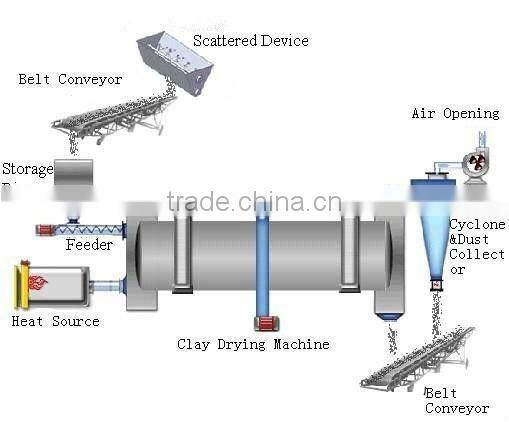

FOUR--Coal Rotary Drum Dryer Working Principle:
Coal Rotary Drum Dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immediately by spiral board when enters the shell from feeding tank and feeding chute. Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
FIVE--Coal Rotary Drum Dryer Main Technical Parameter:
| Model(m) | Shell diameter(mm) | Shell length(mm) | Slope(°) | Rotary speed(r/min) | Weight(t) | Power(kW) | Volume(m³) |
| 0.6*8 | 600 | 8000 | 3-5 | 8 | 5.1 | 6-4 | 2.26 |
| 0.8*10 | 800 | 10000 | 3-5 | 7.2 | 6.9 | 6-4 | 5.02 |
| 1.0*1 | 1000 | 10000 | 3-5 | 6.73 | 7.5 | 6-5.5 | 7.85 |
| 1.2*12 | 1200 | 12000 | 3-5 | 5.8 | 13.1 | 6-11 | 13.31 |
| 1.5*12 | 1500 | 12000 | 3-5 | 4.8 | 22.3 | 6-15 | 21.2 |
| 2.2*14 | 2200 | 14000 | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
| 2.4*18 | 2400 | 18000 | 3-5 | 3 | 73.3 | 37 | 81.43 |
| 2.8*24 | 2800 | 24000 | 3-5 | 2.59 | 97 | 75 | 147.8 |

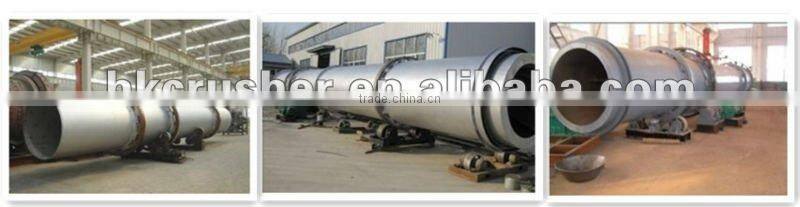

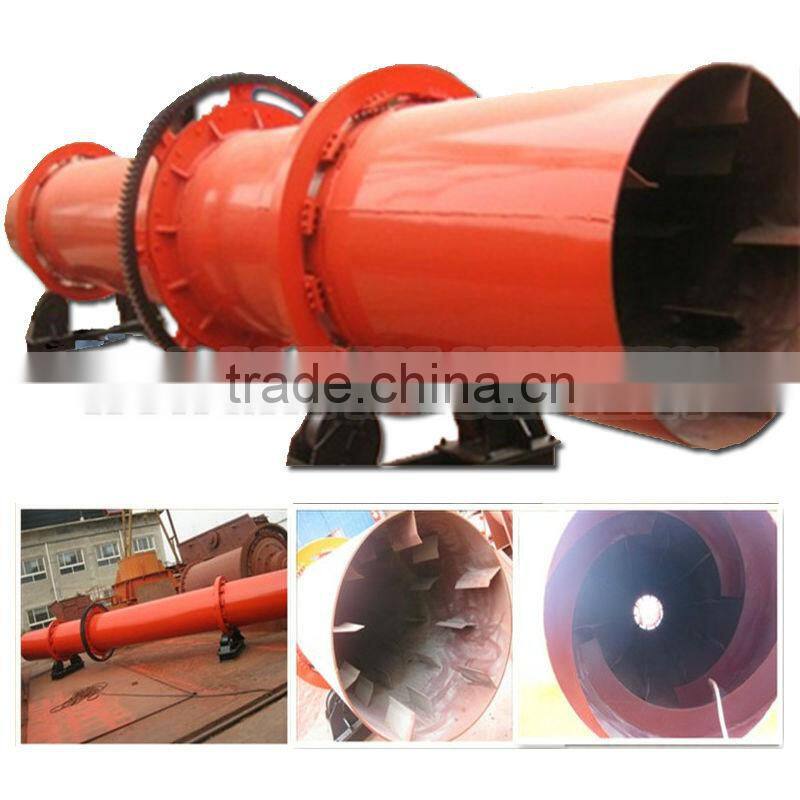

SIX--Coal Rotary Drum Dryer Display:
SEVEN--Coal Rotary Drum Dryer Warranty:
1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
