Professional Vibrator Screen Sieve

Specifications

Vibrator Screen Sieve
1. High reliability
2. Low power consumption
3. Easy to operate and maintain
4. With ISO9000, BV

Professional Vibrator Screen Sieve

1) Brief Introduction of Vibrator Screen Sieve:

1. This series of vibrator screen sieve machine moves round, it is specially designed for quarry to separate stone into different sizes. It also widely used for classification in mining, construction materials, transportation and energy etc. The series of YK, YZ is the latest model in China. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down the long time. This machine bears the features of different specifications, reliability, strong exciter, high efficiency, little noise, durability, convenient maintenance and safety.



2. This series of Circular-motion Vibrator Screen Sieve Machine is specially designed for stone pit to sieve some different sizes of stone. It also applies to coal dressing, ore dressing, building-material electric and chemical industries etc as products gradating.



2) Types of Vibrator Screen Sieve:

There are two types vibrator screen sieve machine which are YZ and YK. YK series is a kind of the latest model at home. It adopts box-vibrating exciting, eccentric block and tyre coupler. And it makes a feature of advanced construction, strong vibrating force, low vibrating noise, easy maintenance, sturdy and durable.



3) Structure of Vibrator Screen Sieve:
The Vibrator Screen Sieve Machine is composed by sieving box, mesh, vibration exciter and damper spring etc. The vibrator screen sieve machine adopts the vibration exciter with barrel type of eccentric shaft and block to adjust the swing. The vibration exciter is installed on the lateral plate of the sieving box. The motor makes the exciter swing round speedily through tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. The lateral plate made by the high quality steel plate without any welding point. The lateral plate, beam and the vibration exciter connected by the high strength bolts and ring-grooved lock bolts.



4) Working Principle of Vibrator Screen Sieve:

1. The YK series circular vibrator screen sieve machine for its approximately circular movement. It is of multilayer and high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen is of long streamline, many specifications and clear screening for different specifications.



2. The vibrator screen sieve machine is a single-axis circular-movement inertial vibrating screen, the working of circular vibrator screen sieve depends on inertial motor and inertial strength produced by eccentric plate, because of the vibration of screen box, the materials are threw out, so that materials of certain size go through the screen mesh, and the screening aim is realized. Since the magnetic exciter is installed on the gravity center of screen box, the two long elliptical axis form a shape like a Chinese character, and the upper of long elliptical axis in inlet end is in the same direction with the outlet, which favors the spread of materials which is in the screen box.



5) Main Technical Parameter of Vibrator Screen Sieve:

Model	Layers	Sieve Pore Size(mm)	Capacity(t/h)	Vibration Power(r/min)	Motor Power	Sieve Loft(°)	Sieve Mesh Size(mm)	Weight(kg)
2YK1030	2	4-50	8-60	800-970	0.75	20	1000×3000	3500
3YK1030	3	4-50	10-70	800-970	1.1	20	1000×3000	3850
2YK1230	2	4-50	12-78	800-970	5.5	20	1250×3000	4200
3YK1230	3	4-50	13-80	800-970	5.5	20	1250×3000	4600
2YK1237	2	4-50	15-86	800-970	7.5	20	1200×3700	4600
3YK1237	3	4-50	16-90	800-970	7.5	20	1200×3700	5200
2YK1540	2	5-50	20-125	800-970	11	20	1500×4000	5890
3YK1540	3	5-50	21-125	800-970	11	20	1500×4000	6700
2YK1545	2	5-50	22-150	800-970	15	20	1500×4500	6330
3YK1545	3	5-50	22-150	800-970	15	20	1500×4500	6800
2YK1548	2	5-50	22.5-162	800-970	15	20	1500×4800	6980
3YK1548	3	5-50	22.5-162	800-970	15	20	1500×4800	7600
2YK1848	2	5-80	25-206	750	15	20	1800×4800	9080
3YK1848	3	5-80	32-276	800-970	18.5	20	1800×4800	9600
2YK1860	2	5-80	32-312	800-970	18.5	20	1800×6000	10150

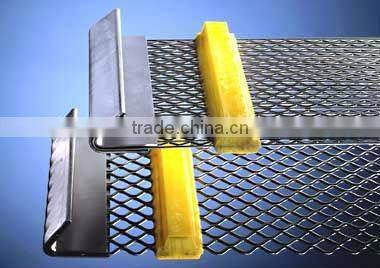

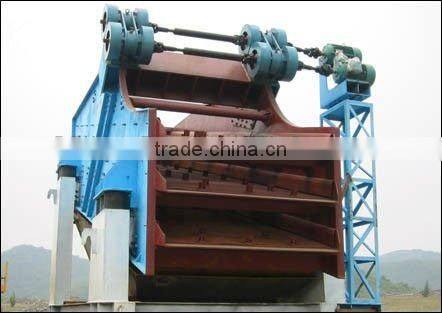

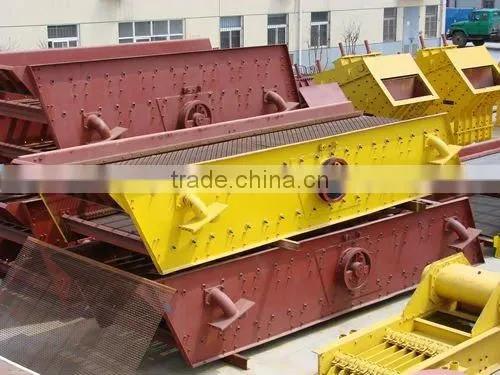

6) Pictures of Vibrator Screen Sieve:
