Best Performance Mining Stone Vibrator Screen

standard export packing

Specifications

Vibrator Screen
1. Advance technics/standard testing
2. Environmental machine
3. Perfect service after sale
4. ISO9000, BV

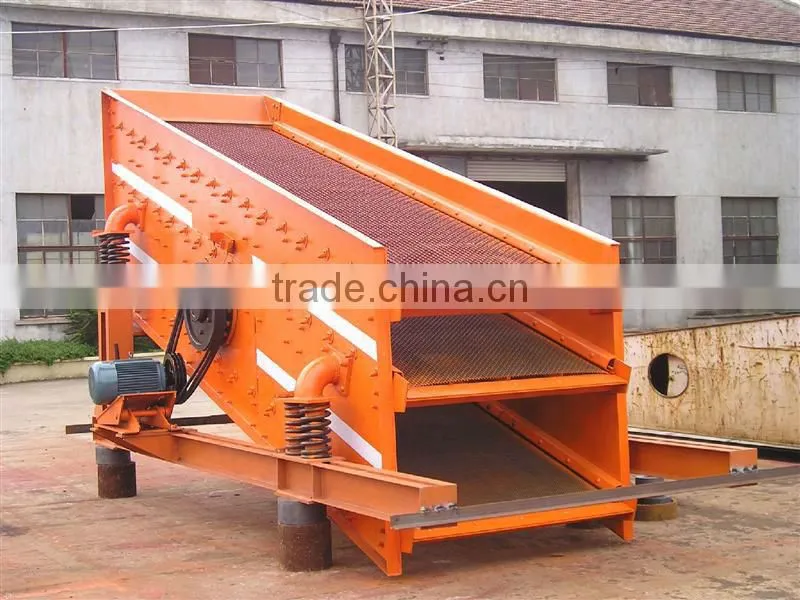

Best Performance Mining Stone Vibrator Screen



1. Vibrator Screen Brief Introduction:

1. This series of vibrator screen moves round, it is specially designed for quarry to separate stone into different sizes. It also widely used for classification in mining, construction materials, transportation and energy etc. The series of YK, YZ is the latest model in China. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down the long time. This machine bears the features of different specifications, reliability, strong exciter, high efficiency, little noise, durability, convenient maintenance and safety.



2. This series of Circular-motion Vibrator Screen is specially designed for stone pit to sieve some different sizes of stone. It also applies to coal dressing, ore dressing, building-material electric and chemical industries etc as products gradating.



2. Vibrator Screen Types:

Vibrator screen has two types which are YZ and YK.YK series is a kind of the latest model at home. It adopts box-vibrating exciting, eccentric block and tyre coupler. And it makes a feature of advanced construction, strong vibrating force, low vibrating noise, easy maintenance, sturdy and durable.

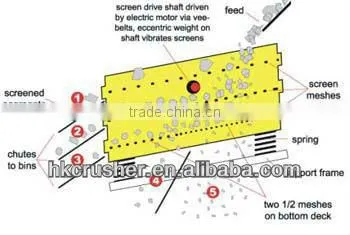

3. Vibrator Screen Working Principle:

1. The YK series vibrator screen is for its approximately circular movement. It is of multilayer and high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen is of long streamline, many specifications and clear screening for different specifications.



2. The Vibrator Screen is a single-axis circular-movement inertial vibrating screen, the working of circular vibrating screen depends on inertial motor and inertial strength produced by eccentric plate, because of the vibration of screen box, the materials are threw out, so that materials of certain size go through the screen mesh, and the screening aim is realized. Since the magnetic exciter is installed on the gravity center of screen box, the two long elliptical axis form a shape like a Chinese character, and the upper of long elliptical axis in inlet end is in the same direction with the outlet, which favors the spread of materials which is in the screen box.





4. Vibrator Screen Main Technical Parameters:

Model	Layers	Sieve Pore Size(mm)	Capacity(t/h)	Vibration Power(r/min)	Motor Power	Sieve Loft(°)	Sieve Mesh Size(mm)	Weight(kg)
2YK1030	2	4-50	8-60	800-970	0.75	20	1000×3000	3500
3YK1030	3	4-50	10-70	800-970	1.1	20	1000×3000	3850
2YK1230	2	4-50	12-78	800-970	5.5	20	1250×3000	4200
3YK1230	3	4-50	13-80	800-970	5.5	20	1250×3000	4600
2YK1237	2	4-50	15-86	800-970	7.5	20	1200×3700	4600
3YK1237	3	4-50	16-90	800-970	7.5	20	1200×3700	5200
2YK1540	2	5-50	20-125	800-970	11	20	1500×4000	5890
3YK1540	3	5-50	21-125	800-970	11	20	1500×4000	6700
2YK1545	2	5-50	22-150	800-970	15	20	1500×4500	6330
3YK1545	3	5-50	22-150	800-970	15	20	1500×4500	6800
2YK1548	2	5-50	22.5-162	800-970	15	20	1500×4800	6980
3YK1548	3	5-50	22.5-162	800-970	15	20	1500×4800	7600
2YK1848	2	5-80	25-206	750	15	20	1800×4800	9080
3YK1848	3	5-80	32-276	800-970	18.5	20	1800×4800	9600
2YK1860	2	5-80	32-312	800-970	18.5	20	1800×6000	10150
3YK1860	3	5-80	32-312	800-970	22	20	1800×6000	10840



5. Vibrator Screen Warranty:

1. One Year (Calculated from the goods arrived the destination port.)  If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).



2. Our professional service includes: Free training, Guidance Installation and Debugging.



3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
