Home > Manufacturing & Processing Machinery > Mining Machinery > Sand Washer > 2013 Hot Sale Sand Washing Machine
US$ 1,000 - 6,740
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
20-100t/h
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stone Production Line for Concrete Curb,buildingUS$ 10,000 - 1,000,000MOQ: 1 Set -
New Type Belt ConveyerUS$ 1,000 - 99,999MOQ: 1 Set
-
Sand Production Line,Sand Making Line Made in ChinaUS$ 999 - 499,999MOQ: 1 Set
-
2016 HotSale Sand Vibration ScreenUS$ 2,000 - 150,000MOQ: 1 Set
-
Professional Rock Production LineUS$ 1,000 - 300,000MOQ: 1 Set
Condition
New
Production Capacity
20-100t/h
Place of Origin
Henan, China
Brand Name
HK
Model Number
XSD2900
Voltage
380V/50HZ
Power(W)
5.5KW
Dimension(L*W*H)
3255*1982*2690mm
Weight
2.7t
Certification
ISO9001
Warranty
3 years, one year
Specifications
Sand Washing Machine1. Reasonable structure
2. High efficiency &cost-effective
3. Little sand loss using
4. With ISO9001

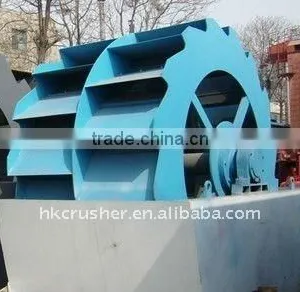

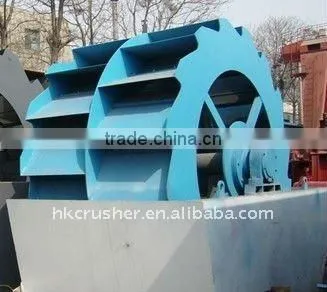

Sand Washing Machine
Brief Introduction of Sand Washing Machine:
This series XSD Sand Washing Machines are a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand making machine can improve the quality of the sand. XSD series Sand making machine is used in building plant, quarry, concrete plant, dam building, casting-70 sand, glass factory's quartz sand and refilling pressure sand.
Working Principle of Sand Washing Machine:
The Sand Washing Machine working electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Techinical Data of Sand Washing Machine:
| Model | Wheel Size (mm) | Max feed size (mm) | Power (kW) | Weight (t) | Capacity (t/h) | Overall dimension (mm) |
| XSD2610 | Φ2600×1000 | 10 | 5.5 | 2.7 | 20-50 | 3255×1982×2690 |
| XSD2816 | Φ2800×1600 | 10 | 11 | 3 | 30-60 | 3540×3000×2880 |
| XSD3016 | Φ3000×1600 | 10 | 15 | 3.3 | 50-100 | 3845×3000×3080 |
