Specifications
Our belt conveyer features in :1.High quality and reasonable price
2.High productivity;easy maintaenance

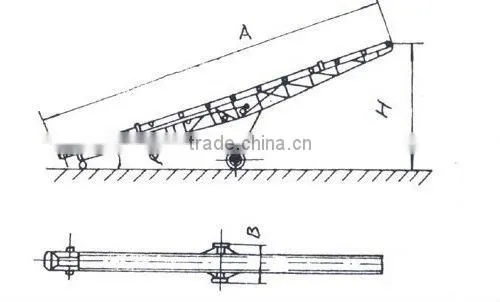

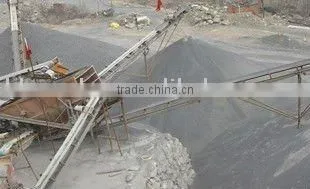

The belt conveyor produced by our company has the strongpoints of large conveying amount, simple structure, easy maintainance, high standardization degree,etc, which is widely used in mining, metallurgy, coal and other industries. The belt conveyor can be used to transfer bulk materials or materials in pieces.According to different transferring requirements, the transferring system can be of only one belt conveyor or consists of several conveyors, or combined with other transferring equipments. The belt conveyor can be installed horizontally or aslope to meet the needs of different transferring requirements.
Belt conveyer Working principle:
The belt conveyer working principle:motor drives the driving rollers of the belt conveyor, and drives the roller by the strong belt advances. Materials are conveyed from the original place to the place where they are needed.
Belt width(mm) |
Conveying length(w)power(kw) |
Conveying speed(m/s) |
Conveying amount(t/h) |
||
400 |
<=12/2.2 |
12-20/2.2-4 |
20-25/3.0-7.5 |
1.25-2.0 |
30-60 |
500 |
<=12/3 |
12-20/4-5.5 |
20-30/5.5-7.5 |
1.3-1.6 |
78-191 |
650 |
<=12/4 |
12-20/5.5 |
20-30/7.5-11 |
1.3-1.6 |
131-323 |
800 |
<=10/4 |
6-15/5.5 |
15-30/7.5-15 |
1.3-1.6 |
278-546 |
1000 |
<=10/5.5 |
10-20/7.5-11 |
20-40/11-22 |
1.3-2.0 |
435-853 |
1200 |
<=10/7.5 |
10-20/11 |
20-40/15-30 |
1.3-2.0 |
655-1284 |
