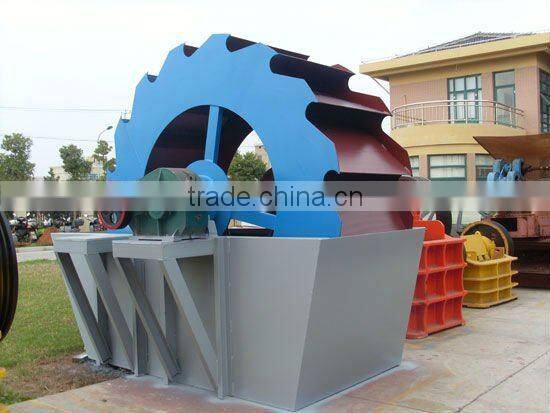

Most Popular Mining Equipment Sand Washing Equipment
- 56 Set / Sets per Month
- any port in China
- T/T
Product Details
Place of Origin: | Henan, China | Brand Name: | HK | Model Number: | XSD series |
Packaging Details
standard export packing or in Bulk
Product Description
Specifications
Sand Washing Equipment1. Strictly quality control system
2. Advance technology
3. Perfect service after sale
4. With ISO
Sand Washing Equipment
ONE: Introduction and Application of Sand Washing Equipment:
1. Sand Washing Equipment is a kind of water washing equipment to be matched with the sand making machine.
2. This series XSD Sand Washing Equipment is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand making machine can improve the quality of the sand.
3. XSD series Sand washing equipment is used in building plant, quarry, concrete plant, dam building, casting-70 sand, glass factorys quartz sand and refilling pressure sand.
TWO: Working Principle of Sand Washing Equipment:
1. The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel.
2. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other.
3. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder.
4. Through the above process, the washing function is finished.
5. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.
6. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used.
7. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
THREE: Features of Sand Washing Equipment:
1. Simple structure. The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.
2. Being used for cleaning sand in quarries, it has many advantages compared with traditional spiral sand washing machine: There is little loss for medium-sized and fine sand and stone powder. The grade and the fineness of the sand for construction after being washed can be up to the national standards, such as sand for construction and cobble and broken stones for construction. There are no other wear parts except the screen mesh. It has longer service life and lower maintenance frequency.
FOUR: Main Technical Parameter of Sand Washing Equipment:
Model | Impeller diameter(mm) | Impeller rotationg speed(r/min) | Capacity(t/h) | Feed size(mm) | Power(KW) | Weight(t) |
XSD2212 | 2200 | 1-1.5 | 15-35 | ≤10 | 5.5 | 2 |
XSD2612 | 2600 | 1-1.5 | 20-25 | ≤10 | 5.5 | 2.68 |
XSD2812 | 2800 | 1-1.5 | 30-65 | ≤10 | 7.5 | 3 |
XSD3015 | 3000 | 1-1.5 | 50-80 | ≤10 | 11 | 3.4 |
XSD3215 | 3200 | 1-1.5 | 120-180 | ≤10 | 11 | 3.9 |
XSD3615 | 3600 | 1-1.5 | 80-120 | ≤10 | 15 | 4.5 |

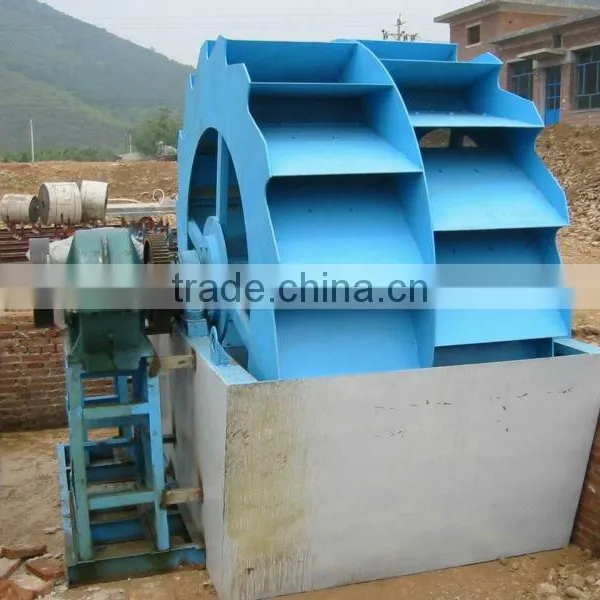

FIVE: Pictures of Sand Washing Equipment:
SIX: Warranty of Sand Washing Equipment:
1. One Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis. We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Company Profile
Henan Hongke Heavy Machinery Co., Ltd. . is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing. We are a newly-risen dazzling star in China's machinery industry with the development of market economy.
Our manufactory is a high-tech enterprise that specializes in the research and production of rotary kilns, driers, and crushers. Our major products, for example, rotary kilns, Raymond mills, a series of crushers, stone crushers, and a series of screens, jaw crushers, hammer crushers, impact crushers, cone crushers, and sand making machines, rank highly in the domestic market and some products have reached international advanced level.
Due to decades of venture and the self-improvement of our staff, our company has developed well. Employing a large number of talents who are keen on innovation and enjoy a high level in outstanding scientific research and management in the industry, our company cultivates talents with strict disciplines and high efficiency in order to forge ahead together. In order to meet the needs of the development of our company and the market competition, we have built the first-class modern production and testing base, established a worldwide sales network, and provided considerable services for our respectable customers. We adhere to the pioneering ideas of "quality prospers our company", pursue the service tenet of "we satisfy our customers with our whole heart", and insist on the operation essential of "honest and good faith, and seek truths from facts". We have won honorable titles like Good Credibility of After-Sales Service, and our "Hongke" trademark has become a symbol of the reputation.
The quality is the life of our enterprise. Our company has modern scientific management, advanced production equipment and strict testing means to improve products. Our company will continue to uphold our concept, serve our nation sincerely, and rejuvenate our nation. We are willing to work together with friends from all over the world to create a bright future and flourish our national industry.
Contact Us
- Henan Hongke Heavy Machinery Co., Ltd.
- Contact nameKevin Wang
- Phone86-371-67816766
- AddressGongye Road and Tonghang Er Road crossing, Shangjie District, Zhengzhou City Zhengzhou,Henan
