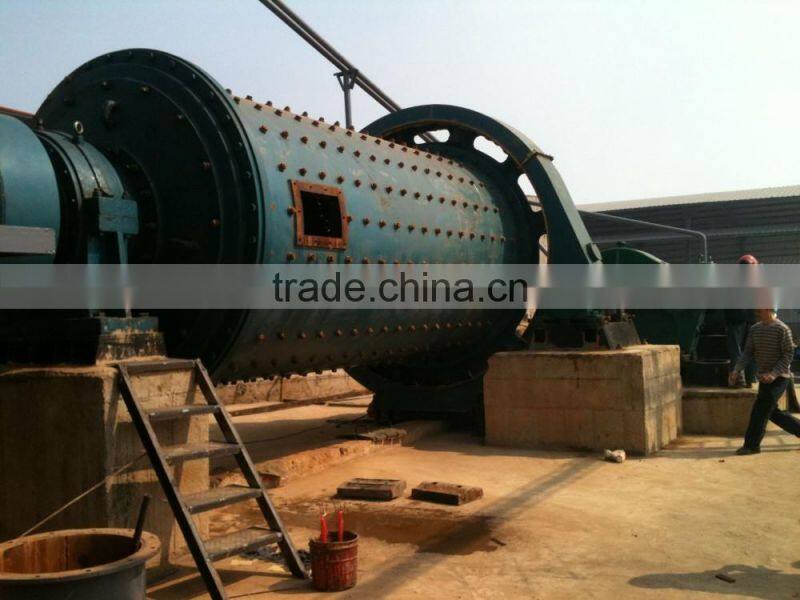

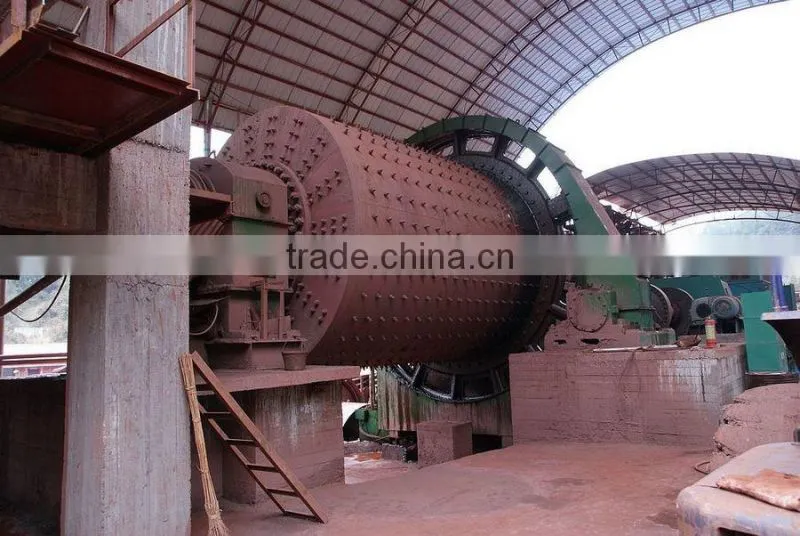

Rod mill Introduction
Rod Mill grinds material by rotating a cylinder with ceramic grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill.
Rod Mill Features
1) is an efficient tool for grinding many materials into fine powder.
2) widely used in building material, and chemical industry.
3) can be used b oth dry and wet.
4) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a periodof several hours.
5) The longer the ceramic mill runs, the finer the powder will be.
6) Our rod mill have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.
Rod mill Working Principle

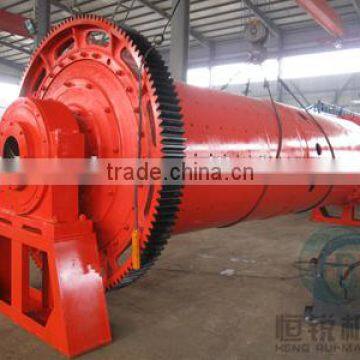

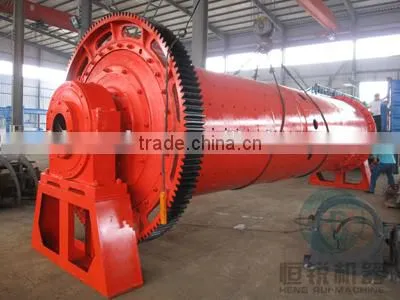

The rod mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of ceramic ball in the chamber. The centrifugal force caused by rotation of barrel brings the ceramic ball to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Specification of rod mill:
Model | Mill body size(mm) | Rotating speed (r/min) | Feeding rod weight (t) | Feeding granularity (mm) | Discharging granularity (mm) | Output (t/h) | Motor power (kw) | Overall dimensions (mm) | Weight (kg) | |
Diameter | length | |||||||||
MB0918 | 900 | 1800 | 29.0-31.3 | 2.3 | <25 | 0.16-5 | 1.6-6 | 22 | 5900×2365×2015 | 4200 |
MB0924 | 900 | 2400 | 29.0-35.4 | 3.1 | <25 | 0.16-5 | 2.9-10 | 30 | 5250×2480×2127 | 5300 |
MB1224 | 1200 | 2400 | 27.0-34.0 | 6.5 | <25 | 0.16-5 | 5.0-13 | 37 | 5829×2867×2540 | 11800 |
MB1530 | 1500 | 3000 | 26.5-29.5 | 11.5 | <25 | 0.16-5 | 6.0-25 | 90 | 7635×3329×2749 | 18170 |
MB1830 | 1800 | 3000 | 21.6-22.8 | 17.5 | <25 | 0.16-5 | 4.8-28 | 155 | 8007×3873×3023 | 35000 |
MB2130 | 2100 | 3000 | 19.0-21.0 | 23.5 | <25 | 0.16-5 | 12.6-30 | 210 | 9000×2800×3800 | 43000 |
MB2136 | 2100 | 3600 | 19.0-21.0 | 23.2 | <25 | 0.16-5 | 15.1-45 | 245 | 9600×2800×3800 | 48000 |
MB2736 | 2700 | 3600 | 17.2-18.5 | 47.0 | <25 | 0.16-5 | 25.0-75 | 400 | 10870×6100×4950 | 71500 |
MB2740 | 2700 | 4000 | 17.2-18.5 | 51.0 | <25 | 0.16-5 | 27.7-90 | 430 | 11500×6100×4950 | 73600 |
