Energy Ball Mill for Grinding Coal

Energy Ball Mill for Grinding Coal thumbnail-1
Energy Ball Mill for Grinding Coal thumbnail-2
Energy Ball Mill for Grinding Coal thumbnail-3
Energy Ball Mill for Grinding Coal photo-1
Energy Ball Mill for Grinding Coal photo-2
Energy Ball Mill for Grinding Coal photo-3
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HK
Model Number:
4500*200000
Contact Supplier Request Quote Chat Now
Henan Hongke Heavy Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name HK
Model Number 4500*200000
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Ball Mill Main Features and Benefits

1.The machine is made up of feeding part, discharging part, gyre part, transmission part (reducer, small transmission gear, motor, and electrical controller) and so on.
2. The hollow axis adopts the cast steel and the lining can be replaced. The big rotary gear is forged from cast rolling gears.
3. The barrel body is inlaid with wearable plates.
4. The machine runs steadily and efficiently.


Working Principle of Ball Mill:

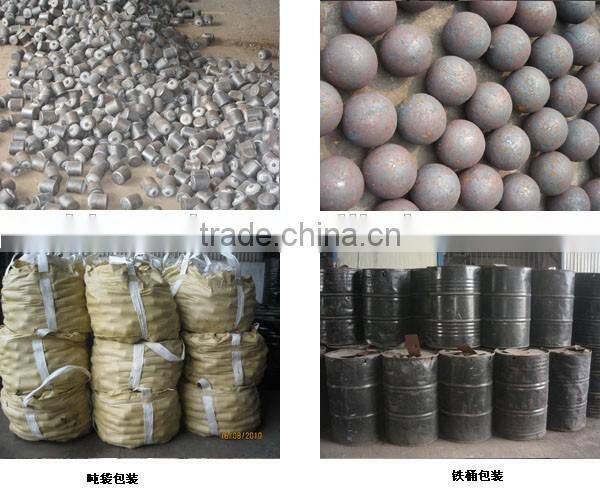

The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.



 Ball Mill Main Parts

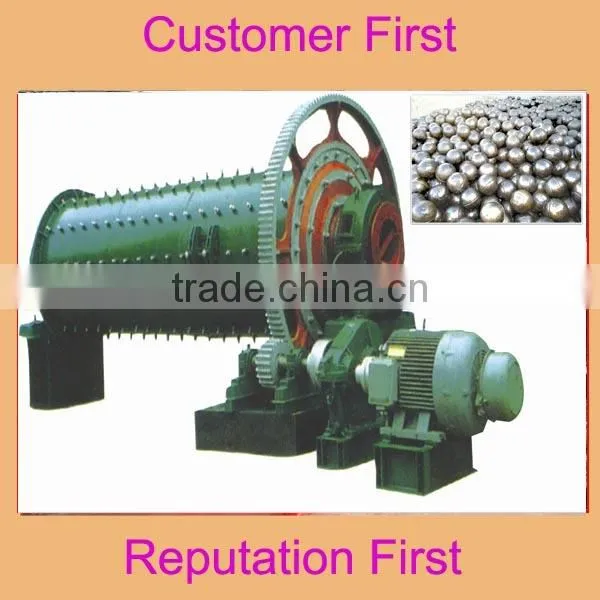

Ball Mill is made up of feeding part, discharging part, gyre part, transmission part (reducer, small transmission gear, motor, and electrical controller) and so on.

Ball Mill Technical Data
Model Rotary Speed(r/min) Ball Quantity (t) Input Size (mm) Output Size (mm) Capacity(t/h) Power  (kW) Weight (t)
Φ900x1800 38 1.5 ≤20 0.075~0.89 0.65~2 18.5 3.6
Φ900x3000 38 2.7 ≤20 0.075~0.89 1.1~3.5 22 4.6
Φ1200x2400 32 3.8 ≤25 0.075~0.6 1.5~4.8 45 12.5
Φ1200x3000 32 5 ≤25 0.074~0.4 1.6~5 45 12.8
Φ1200x4500 32 7 ≤25 0.074~0.4 1.6~5.8 55 13.8
Φ1500x3000 27 8 ≤25 0.074~0.4 2~5 90 17
Φ1500x4500 27 14 ≤25 0.074~0.4 3~6 110 21
Φ1500x5700 27 15 ≤25 0.074~0.4 3.5~6 132 24.7
Φ1830x3000 24 11 ≤25 0.074~0.4 4~10 180 28
Φ1830x6400 24 23 ≤25 0.074~0.4 6.5~15 210 34
Φ1830x7000 24 25 ≤25 0.074~0.4 7.5~17 245 36
Φ2200x5500 21 30 ≤25 0.074~0.4 10~22 370 48.5
Φ2200x6500 21 30 ≤25 0.074~0.4 14~26 380 52.8
Φ2200x7500 21 33 ≤25 0.074~0.4 16~29 475 56


Note: This specification is just reference, any changes are subject to the ball mill products.
