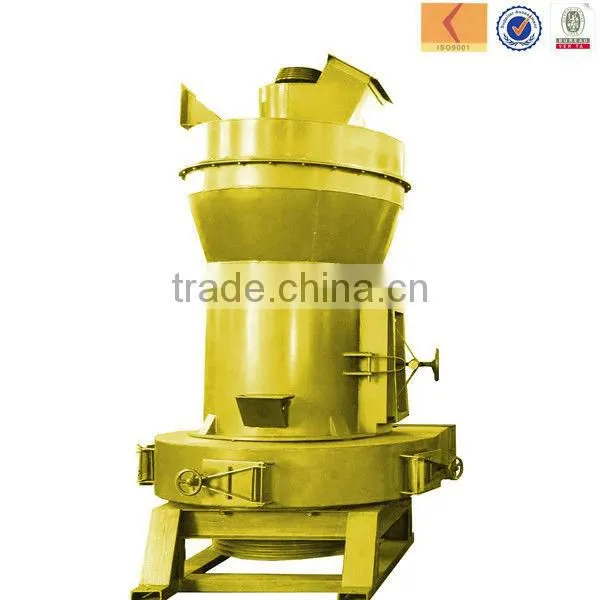

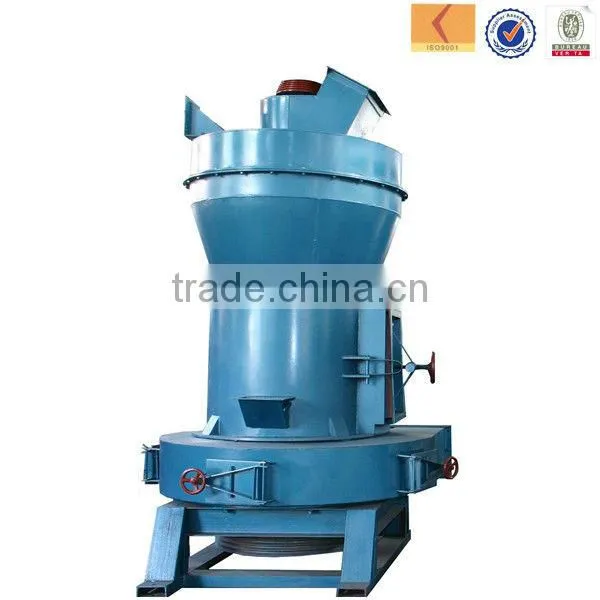

Good Quality and Low Price Raymond Mill
US$ 10,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Raymond Mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Raymond Mill
Motor Type
AC Motor
Power(W)
145-430kw
Capacity(t/h)
0.65-90
Place of Origin
Henan, China
Brand Name
HK
Model Number
3R3016
Dimension(L*W*H)
14.7*4.8*7.2(L*W*H
Weight
17.8-50t
Certification
CE ISO
Warranty
12 Months
After-sales Service Provided
Overseas service center available
<h2>Structure of Raymond Mill:
1. The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant.
5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.
Working Principle of Raymond Mill:
Firstly, raw material is crushed by jaw crusher to the size required, then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.After this, the ground stuff are carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set's airflow system is closely sealed up and circulated under condition of negative and positive pressure.
Technical Data of raymond mill:
Model |
3R2115 |
3R2615 |
3R2715 |
3R3016 |
4R3216 |
|||
Roller |
Number |
3 |
3 |
3 |
3 |
4 |
||
Diameter (mm) |
210 |
260 |
270 |
300 |
320 |
|||
Height (mm) |
150 |
150 |
150 |
160 |
160 |
|||
Ring |
Inside diameter (mm) |
630 |
780 |
830 |
880 |
970 |
||
Height (mm) |
150 |
150 |
150 |
160 |
160 |
|||
Maximum feed size (mm) |
15 |
15-20 |
15-20 |
15-20 |
20-25 |
|||
Output size (mm) |
0.044-0.165 |
0.044-0.165 |
0.044-0.165 |
0.044-0.165 |
0.044-0.165 |
|||
Power of main frame (kw) |
15 |
18.5 |
22 |
30 |
37 |
|||
Fineness of final product (mm) |
0.165 |
capacity (t/h) |
1.2-1.8 |
1.8-2.5 |
2.3-2.8 |
2.6-3.2 |
3.2-4.5 |
|
0.075 |
0.6-1.2 |
1.2-1.8 |
1.8-2.3 |
1.9-2.6 |
2.4-3.1 |
|||
0.044 |
0.6-1.0 |
0.8-1.2 |
0.9-1.7 |
1-1.9 |
1.8-2.5 |
|||
