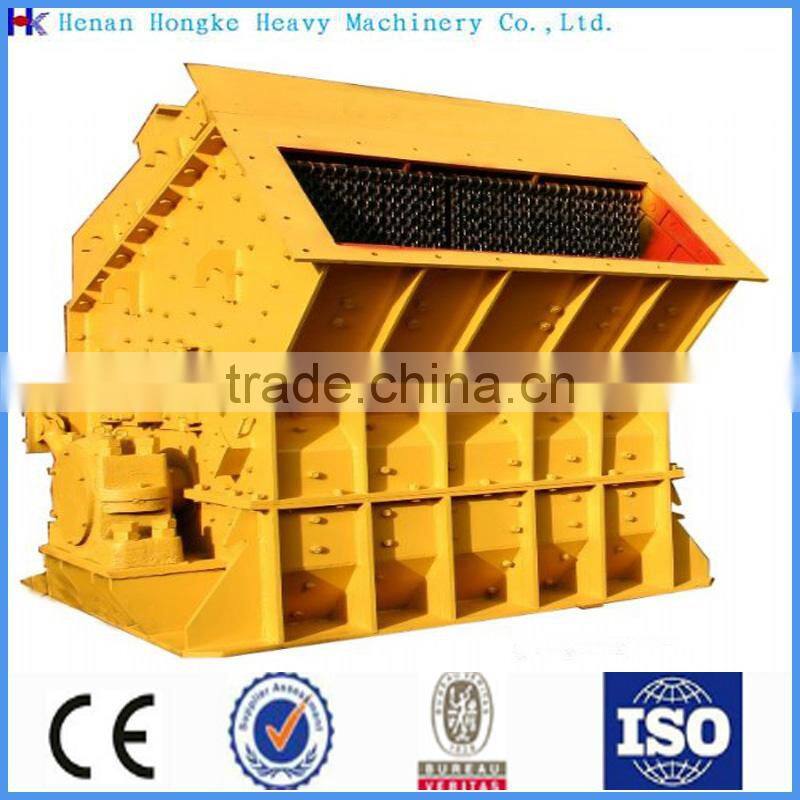

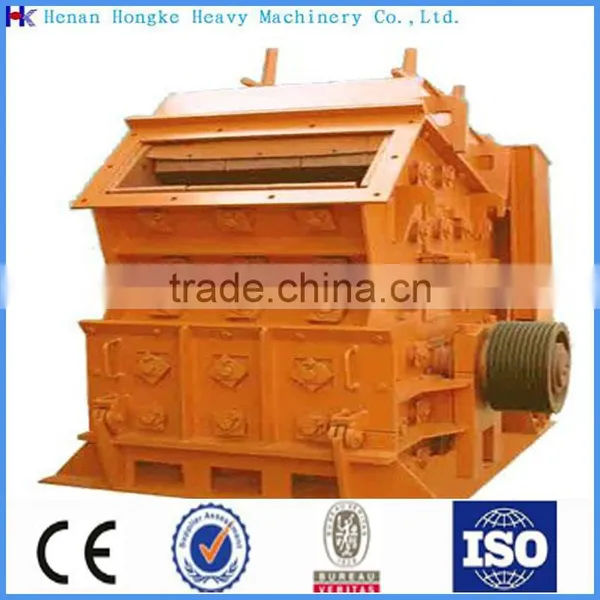

Industry Hammer crusher equipments
1. Crusher Introduction
It is widely used in industry of water and electricity, highway, artificial sand stonematerials and crushing. It is used forprimary crushing of hard rocks and block materials.
Rock crusher is equipped with high-chromium plate hammer with unique structure and impact plate with special shape, which is suitable for crushing of hard rock with energy saving.
2.Application of Rock Crusher
Crusher is widely used in mineral, quarry,building materials, road, railway, water conservancy and hydropower.
The angle between the fixed jaw and movable jaw becomes smaller.
The movable jaw plate leaves the fixed jaw plateunder the effect of drawbar and spring, and then the crushed materials aredischarged from the lower outlet of the crushing cavity.
3.WorkingPrinciple
The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft, when the movable jaw down, the angle between the fixed jaw and movable jaw gets smaller, and the materials can be crushed to reach the crushing target, when the movable jaw rises, the angle between the fixed jaw and movable jaw becomes larger, the movable jaw plateleaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushingcavity.

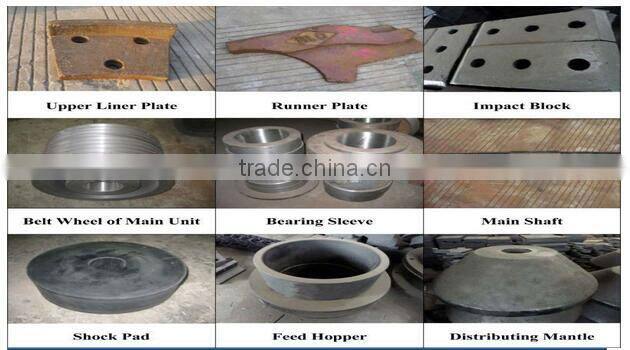

4.Spare parts of crusher machine
5.Main Technical Parameter of Rock Crusher
| Model | Max. Feeding Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
| PE250×400 | 200 | 20-60 | 5-20 | 15 | 1150×1275×1240 | 2.8 |
| PE400×600 | 350 | 40-100 | 15-60 | 30 | 1700×1732×1653 | 6.5 |
| PE500×750 | 425 | 50-100 | 50-100 | 55 | 2035×1921×2000 | 10.3 |
| PE600×900 | 480 | 65-160 | 60-130 | 75 | 2290×2206×2370 | 16.5 |
| PE750×1060 | 630 | 80-140 | 80-180 | 110 | 2620×2302×3110 | 29 |
| PE900×1200 | 750 | 95-165 | 140-260 | 110 | 3789×2826×3025 | 54.5 |
| PEX250×750 | 210 | 25-60 | 10-40 | 22 | 1667×1545×1020 | 5 |
| PEX250×1000 | 210 | 25-60 | 15-50 | 30 | 1550×1964×1380 | 6.5 |
| PEX250×1200 | 210 | 25-60 | 20-60 | 37 | 1560×2104×1415 | .7 |
5.FAQ
In order to find the suitable models and design the best dryer for you,pls kindly inform us the following information:
1.What is the raw material to be dried?
2.What is the original moisture before drying and your required moisture after drying?
3.What is your required capacity(t/h)?
4.What is the fuel,gas or oil or coal pls?
5.Do you have any other special requirement pls?
Our engineers will suggest you the most suitable one for you according to your information.
We will give you factory price with full specification, so pls leave us an inquiry to know more details about price,packaging shipping and discount.
Now,please click the following contact to send us email for best offer and more details!
↓↓↓
