1,Machine introduction
Jaw Crusheris ideally suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Applications: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

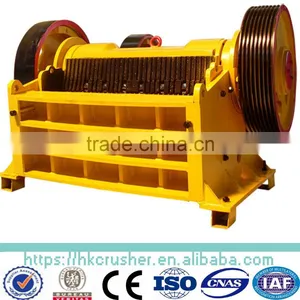

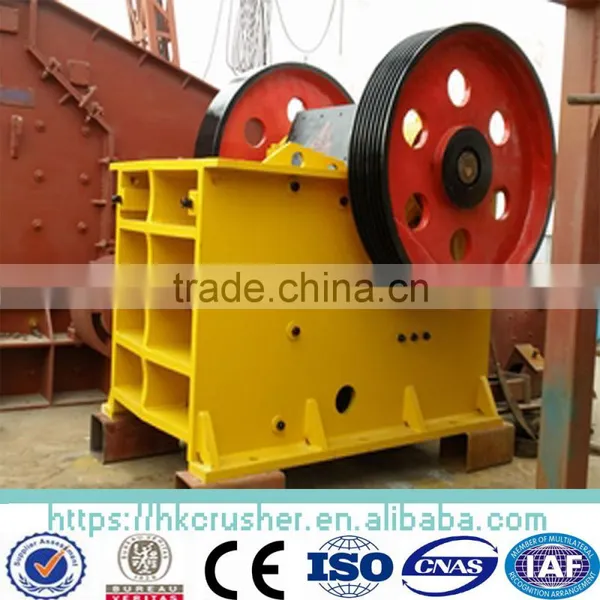

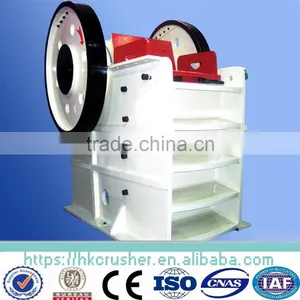

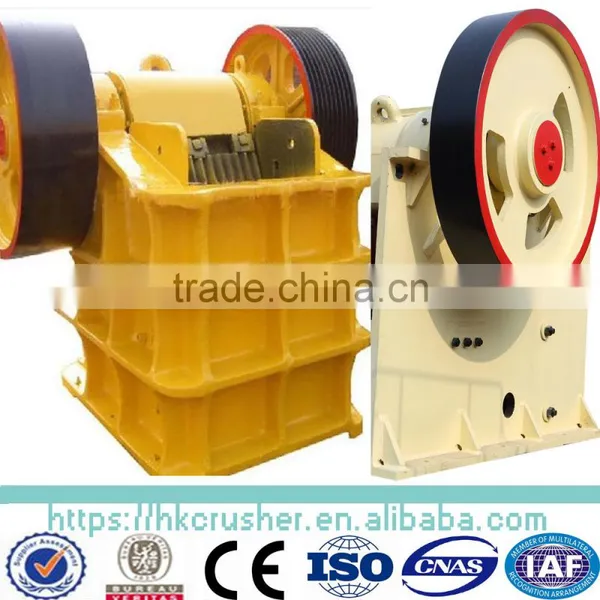

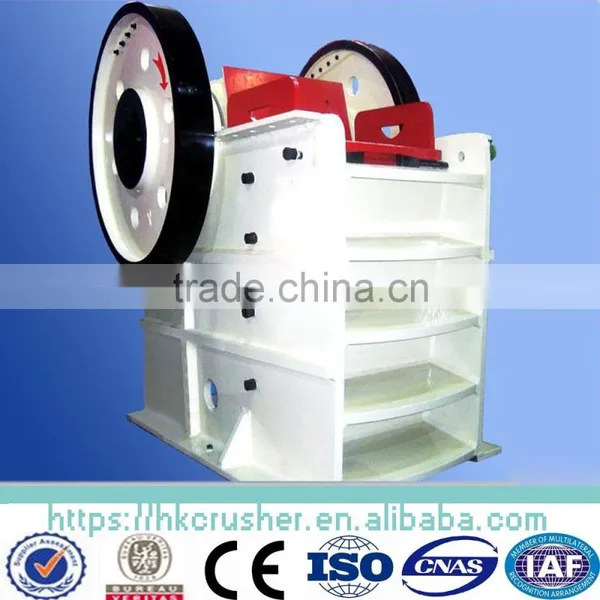

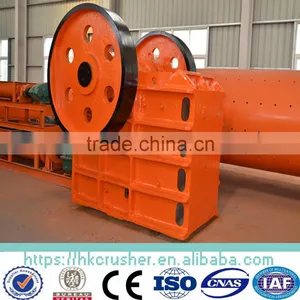

2,Machine photos
3,Machine specification
| Model | Feed opening (mm) |
Max.feeding size (mm) |
Adjusting range of discharge opening (mm) |
Processing capacity (t/h) |
Rotation speed of eccentric shaft (r/min) |
Motor power (kw) |
Total weight (t) |
Dimensions (L×W×H) (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 122 | 5160×3660×4248 |
| PE-1600×2100 | 1600×2100 | 1500 | 300-400 | 1300-2200 | 160 | 350-380 | 150.6 | 6210×4013×4716 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |
4, The work method of Jaw Crusher is as follow:
The motor drives the mobile jaw up and down through eccentric shaft. The angle between toggle plate and mobile jaw increases when mobile jaw plate moves up. So the mobile jaw plate closes up the fixed jaw plate. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when mobile jaw moves down. The mobile jaw plate move away from the stationary jaw plate with the pull of draw rod and spring, so the crushed stone will be discharged from the outlet. This process will repeat. The moving jaw will crush and discharge the stuff circularly.
Henan hongke heavy machinery Co.,Ltd is located in zhengzhou city ,henan province .With about 20years experenced big machinery factory in henan province .Mainly specilized in all kinds of crusher,shredder ,rotary kiln,dryer ,grinding machine,mining machine and so on , won many domestic and foreign customer to visit and cooperate.
1,we will be at your service for 24 hours,any qustion and requirment just let us know .
2,we have technical guide and engineer help ,can give you best suggestion and help you solve your problem .
3,our after-sale service is long time for the machine ,anytime with pleasure to answer your question .
4,we provide machine sprare parts for free charge to our old customer and any new customer .
Q: Are your real manufacturer?
A: Yes,we have our own big factory ,anytime welcome your visiting .
Q: What do you have for machine installing ?
A: We have engineer for technical gudiance and oversea installing guide .
Q: How can you promise your product quality ?
A: We have about 20 years business experience,we got CE,ISO and so on for our products.but the most important we win our customer with our best quality and honest.
............
Any more question please contact with us and welcome your visiting at our factory .
