Description:

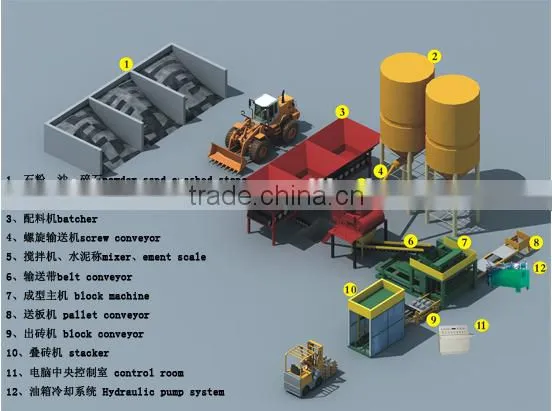

Concrete Mixer: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
Block Making machine:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.
Screw Conveyer (Optional fitment): This is instrumental for transporting cement from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
Conveyer Belt: When the Batching machine’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. The material is then carried to the Mixture Machine.
hand push cart :cart is used to lay the block.
Working Theory
The whole machine is composed of Mud-mixer, Bar-cutter, Brick-cutting Lathe. The power enters from the head of the axis after the flat pulley and gears slow their speed. The earth with moderate humidity will be put into the hopper from the upper part of Mud-mixer, and fall into the Mud vat after it is crushed down, then it is puddled by Screw in the vat and put forwards. At last it is squeezed into standard mud bar from the entrance. Under the drive of the Screw, the mud bar enters into Bar-cutter and goes ahead on its board. When it comes to the proper place, the pull pole of the Bar-cutter is pulled to cut mud bar. When the cut mud bar comes to the right place of the brick-cutter, the control pole of the brick-cutter is held down to make the mud bar move on the slab ; so the mud bar is cut into standard brick, and then come to Brick-receiver.
Main Technical Specifications
| Overall Dimension | 6400×1500×2700(mm) | |||||
| Rated pressure | 16MPa | |||||
| Main vibration form | Platform vibration | |||||
| Acceleration of vibration | 15-20g | |||||
| Exciting force | 380kn | |||||
| Cycle Time | 15-25 seconds | |||||
| Vibrating Frequency | 2800-4500 rolls/minute | |||||
| Overall weight | 5800kg | |||||
| Motors Power | 16.58KW | |||||
| Pallet Size | 850×480(mm) | |||||

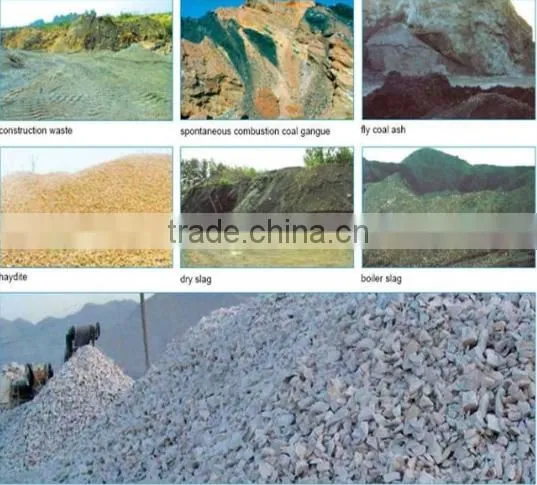

| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes | |||||

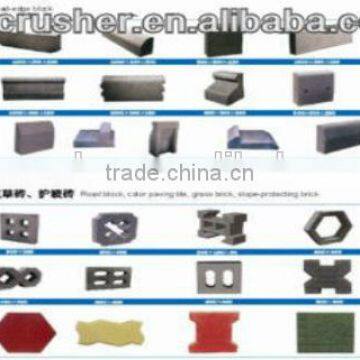

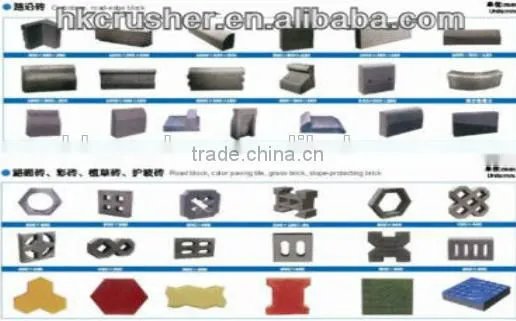

| Applied Products | concrete blocks, solid/hollow | |||||
Productivity

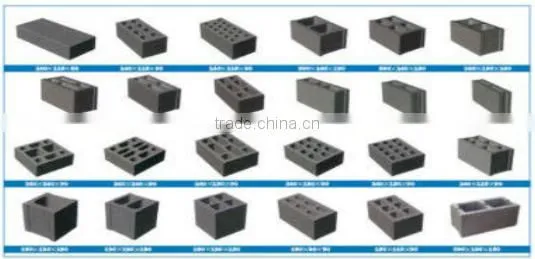

| Samples | Size mm | Cycle molding | QTY/Mould | Per hour | Per 8 hours |
| Hollow brick | 400*200*200 | 24-26s | 4 | 553-600pcs | 4430-4800pcs |
| Prorous brick | 240*115*90 | 22-25s | 9 | 1296-1470pcs | 10368-11760pcs |
| Solid brick | 240*115*53 | 22-25s | 21 | 3024-3436pcs | 24200-27490pcs |
We will give you factory price with full specification, so pls leave us an inquiry to know more details about price,packaging shipping and discount.
Now,please click the following contact to send us email for best offer and more details!
↓↓↓
