Choose GEC,choose high quality!
High pressure Injection Grouting Pump with Dual-slurry
Description:

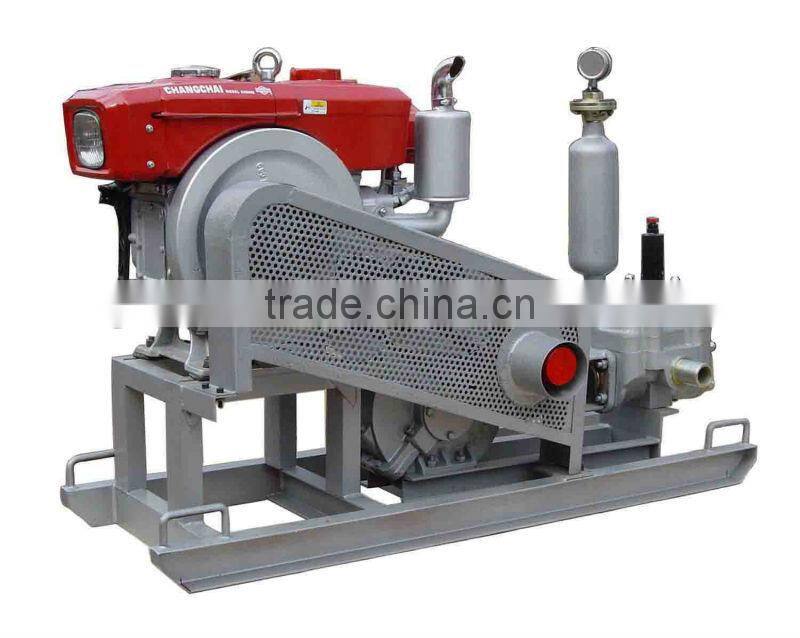

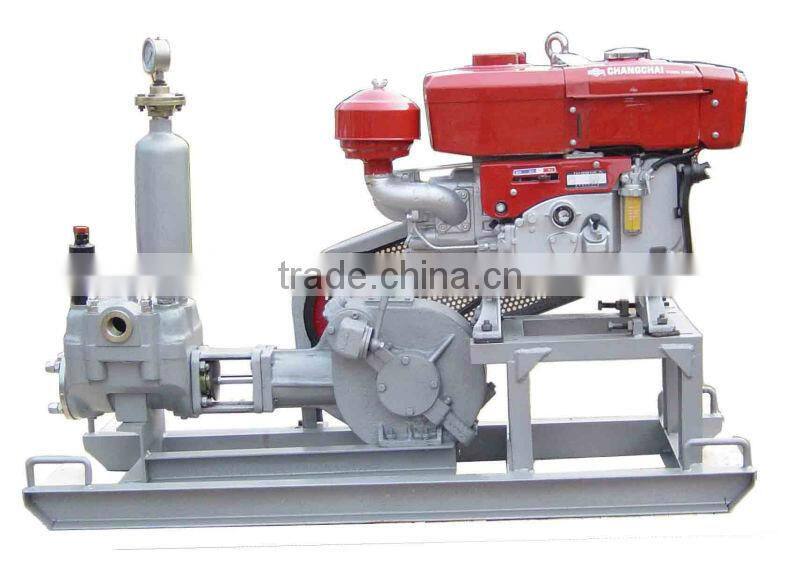

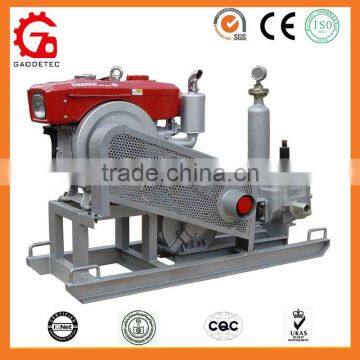

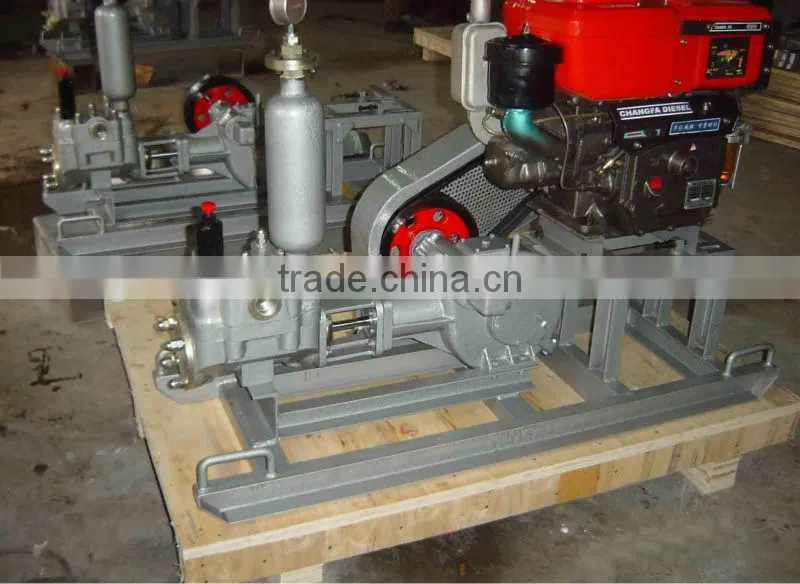

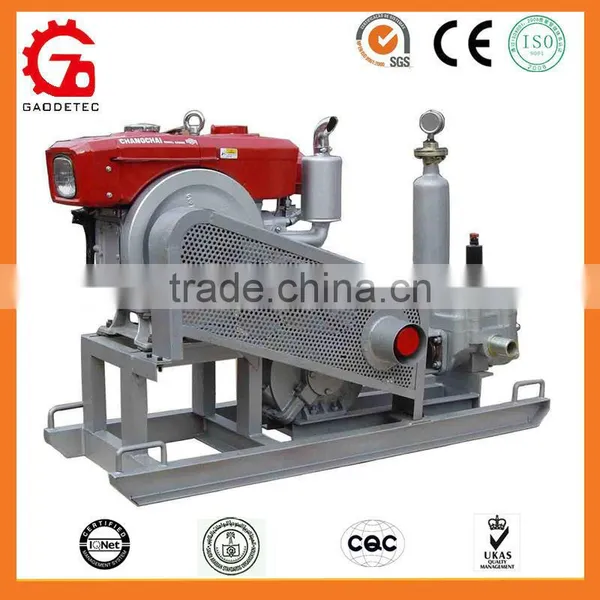

GDM-130/20 Jet Grouting Pump is a single piston double-acting grouting pump with gear reducer, which is a universal medium-pressure grouting pump.
GDM-130/20 Jet Grouting Pump is used for grouting in soil nails, earth anchors, cable and rock bolts, void fillings, dam foundations, foundation stabilization, tunnel lining, slope line grouting.
The grouting pump is ideal for grouting-process in underground and civil applications.
Features
1. Single piston double-acting
2. Gear&Vee belt transmission makes this pump high mechanical efficiency and working reliability

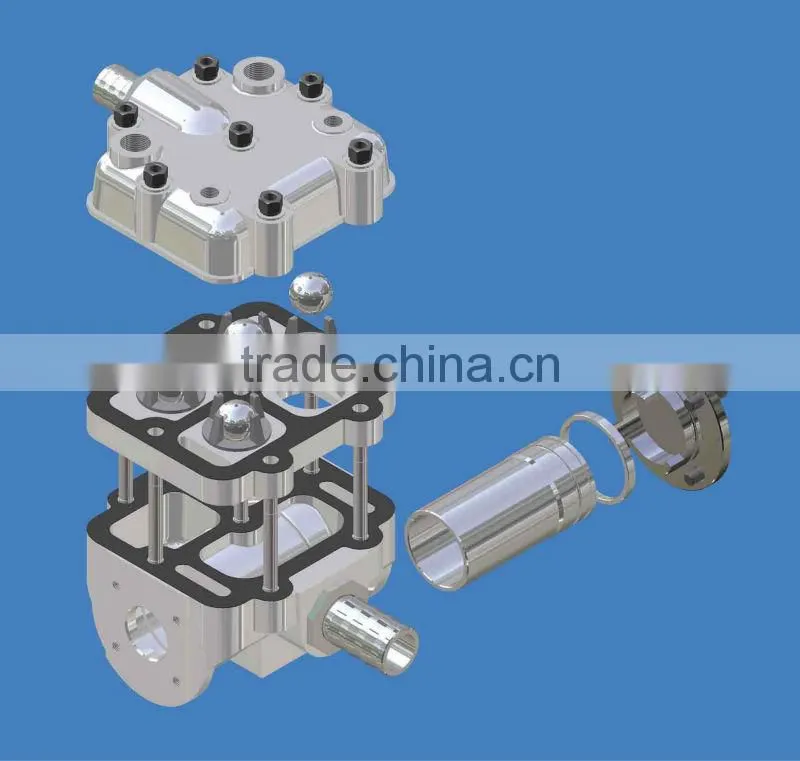

3. Integrated valve house and ball valve, together with compact structure
4. Body of pump is made of aluminum casting, low weight is an advantage for transport
Technical data
Rated Output |
130L/min |
Rated Pressure |
2MPa(20bar/290psi) |
Cylinder Dia. |
75mm |
Piston Stroke |
85mm |
Stroke/Minute |
180/min |
Inlet diameter |
51mm |
Outlet diameter |
38mm |
Power unit |
5.5KW(Electric) 10hp(Diesel) |
Transmission |
V-belt+gearbox |
Chassis |
Skid |
Weight |
260kg |
Overall Dimensions |
1400x600x1000(mm) |
A complete set of GDM130/20
No. |
Description |
Qty. |
Unit |
1 |
130 GROUT PUMP |
1 |
set |
2 |
Rubber piston |
2 |
piece |
3 |
Sucking hose ID51mm/2inch, L=2m |
1 |
pcs |
4 |
ID38 conveying hose,Length 10m |
1 |
pcs |
5 |
Accessorial tools |
1 |
set |
6 |
Seal parts kit |
1 |
set |

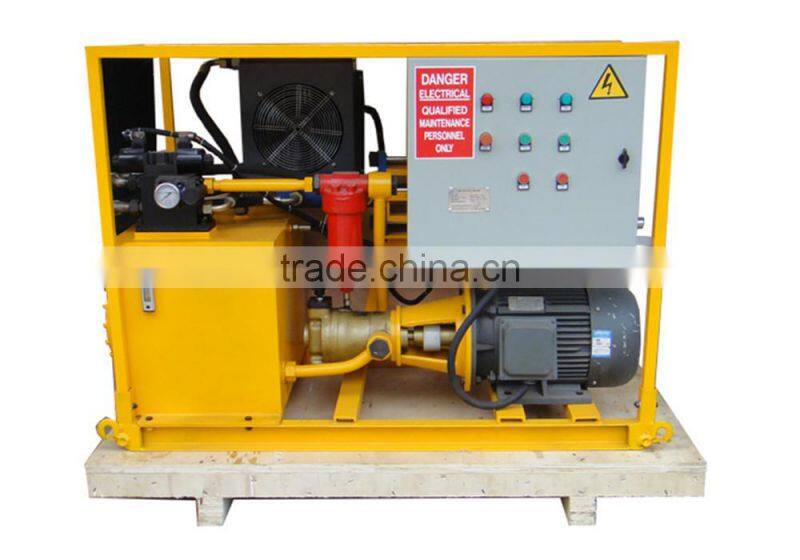

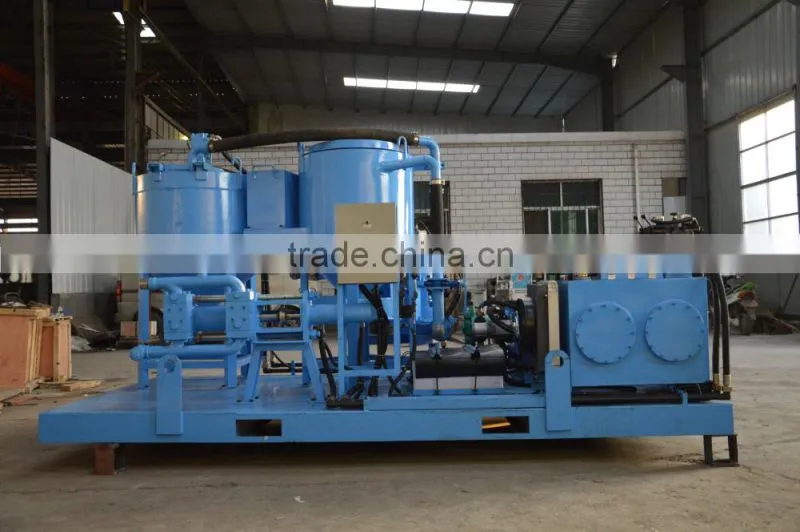

We also have other types for choose:
