Choose GEC,choose high quality!

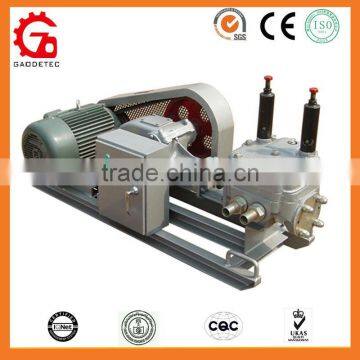

OEM CE with Dual- slurry Jet Grouting Pumps
Description
Our grouting pumps provide widely range grouting pressure selection as well as the dependability and durability required on your job site.
The grouting pumps are ideal for grouting-process in underground and civil applications.
Features
1. Dual-slurry grouting pump
2. Single piston with double-acting
3. Gear reducer
4. Ball valve
5. Compact size
6. Iron-casting pump house
Technical data
Specification: |
|
Rated Output | 60L/min |
Rated Pressure | 4MPa(40bar/580psi) |
Cylinder Dia. | 75mm |
Piston Stroke | 85mm |
Stroke/Minute | 85/min |
Inlet diameter | 38mm |
Outlet diameter | 32mm |
Power unit | 5.5KW(Electric) 10hp(Diesel) |
Transmission | V-belt+gearbox |
Chassis | Skid |
Weight | 210kg |
Overall Dimensions | 1280x485x645mm |
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre | |
A complete set of GDM 60 /40
No. | Description | Qty. | Unit |
1 | 60 GROUT PUMP | 1 | set |
2 | Rubber piston | 2 | piece |
3 | Sucking hose ID51mm/2inch, L=2m | 1 | pcs |
4 | ID38 conveying hose,Length 10m | 1 | pcs |
5 | Accessorial tools | 1 | set |
6 | Seal parts kit | 1 | set |
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
