OEM CE Plaster Mixing Pump for Wall
Choose GEC,choose high quality!

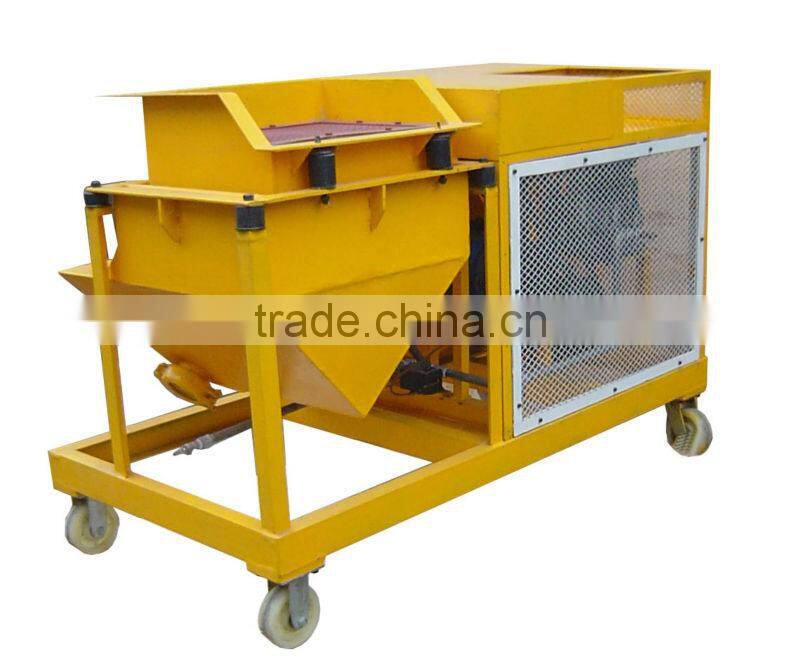

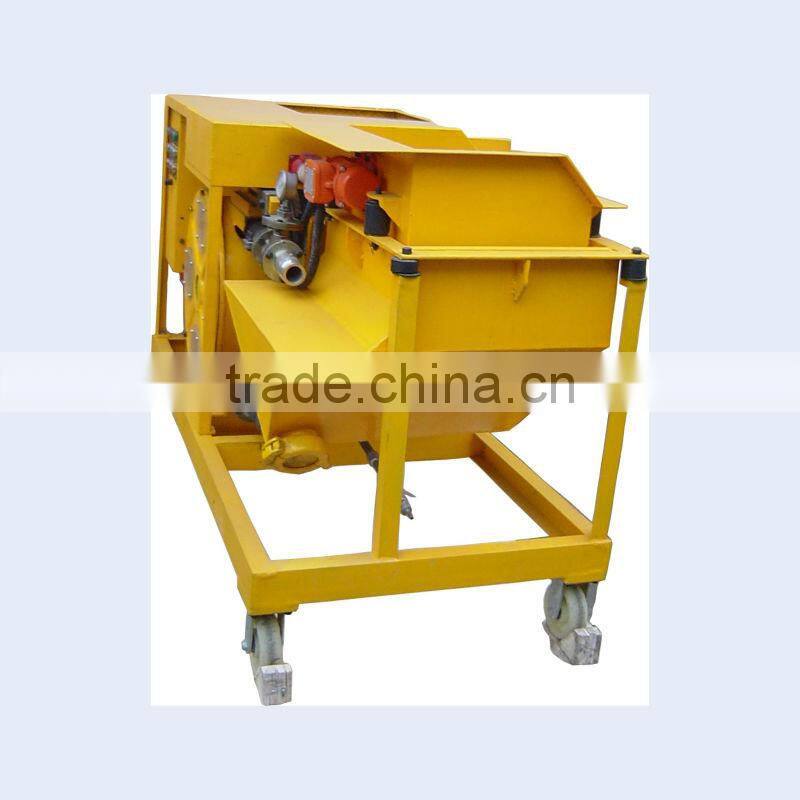

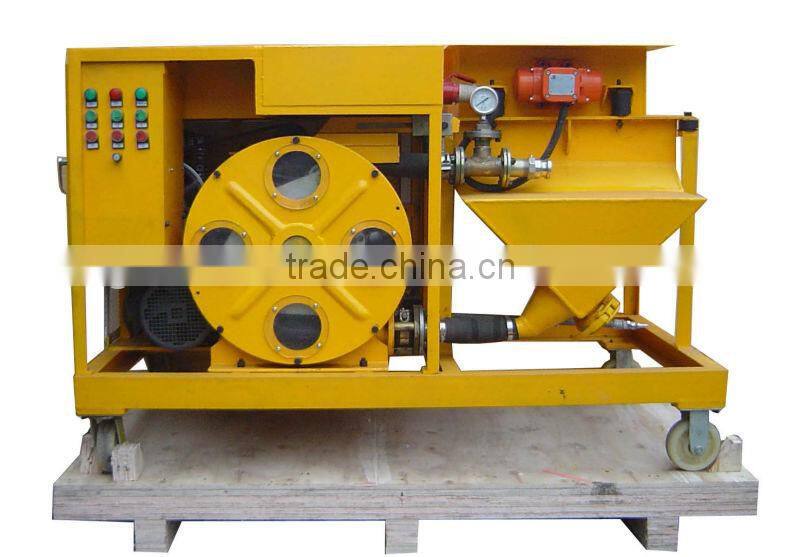

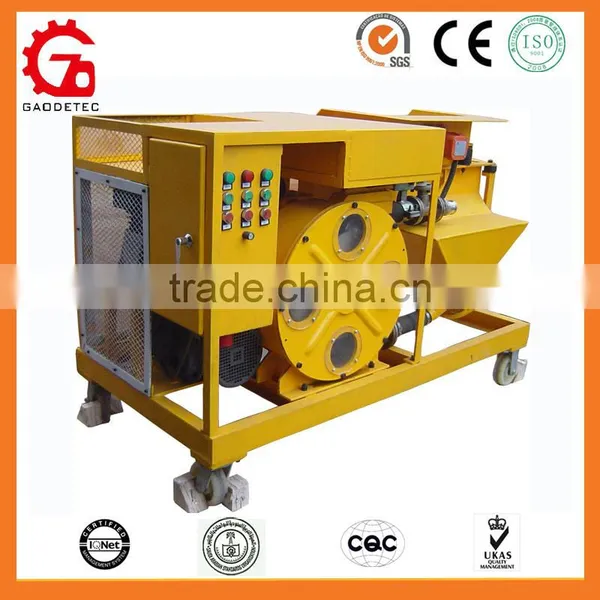

GMP40/10-H Plaster Spraying Pump for Wall
Description
This pump is designed as the combination of GH38-430 hose pump (peristaltic type), mini air compressorand frequency converter.
GH38-430 HEAVY-DUTY HOSE PUMP TECHINCAL DATA | |
Item | Description |
Rotor Dia.(D) | 430mm |
Hose ID | 38mm/1.5inch |
Rotor Rev. | 15-33rpm |
Rated Output/Flow | 18-40L/min |
Rated pressure | 10 bar |
Motor Power | 3 KW /4hp, 3 phase, 380v, 50 Hz,IP55 |
Suck lift | 5 meter |
Hose material | NR(Natural Rubber) |
Overall Dimension | 1600x800x1060mm |
Weight | 440kg |
Note:1,the gearbox is heavy -duty Helical-bevel gear 2,*WEG or China domestic electric motor | |
GH38-430
Feature
1. Mini air compressor
2. Rigid tooth flank helical gear
3. Nozzle specially design to get continuous spaying flow
Mini Air Compressor | |
Rated output | 300L/min |
Rated pressure | 7 bar |

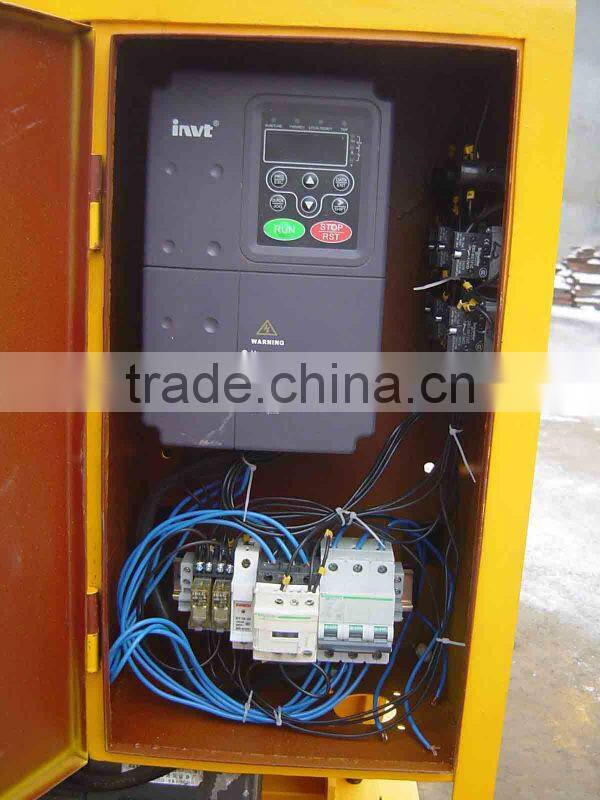

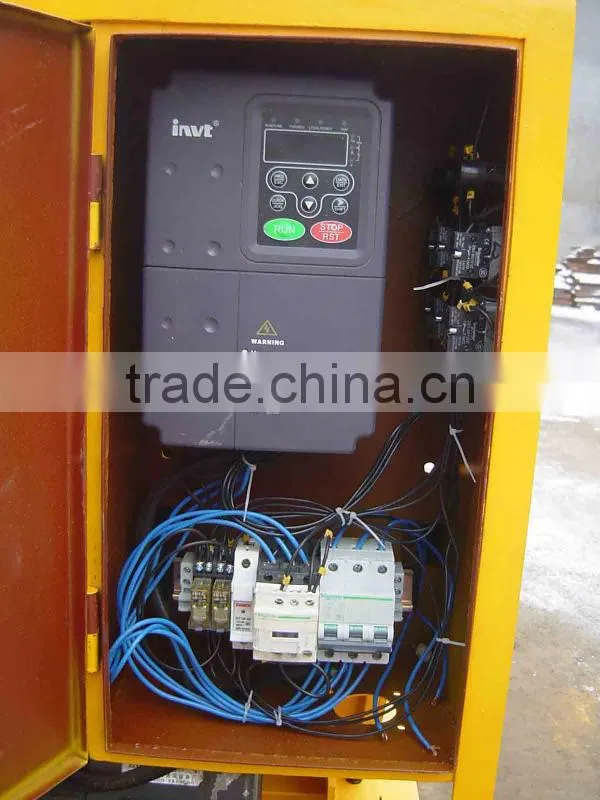

Frequency Converter |
The basic version is one made in China, if you need Siemens, SEW or ABB, please check it from us. |
Gearbox |
Rigid tooth flank helical gear |

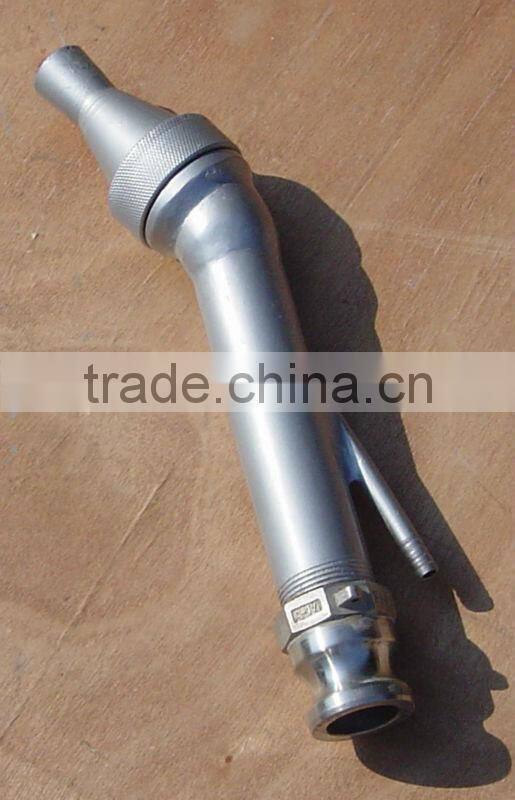

Nozzle |
Specially design to get continuous spaying flow |
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Photoes
If you have any question please feel free to contact me.
