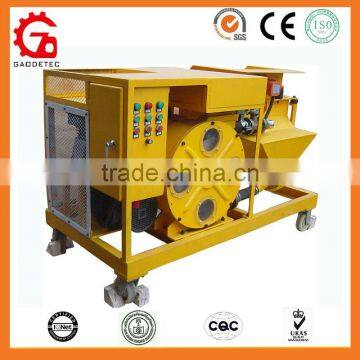

Peristaltic pump type mortar plaster spraying machine for sale
Peristaltic pump type mortar plaster spraying machine data:
Specification: this pump is designed as the combination of GH38-430 hose pump (peristaltic type), mini air compressor and frequency converter. | ||
GH38-430 HEAVY-DUTY HOSE PERISTALTIC MORTAR PUMP TECHINCAL DATA | ||
Item |
Description |
Remarks |
Rotor Dia.(D) |
430mm |
|
Hose ID |
38mm/1.5inch |
|
Rotor Rev. |
15-33rpm |
|
Rated Output/Flow |
18-40L/min |
|
Rated pressure |
10 bar |
|
Motor Power |
3 KW /4hp, 3 phase, 380v, 50 Hz,IP55 |
* |
Suck lift |
5 meter |
|
Hose material |
NR(Natural Rubber) |
|
Overall Dimension |
1600x800x1060mm |
|
Weight |
440kg |
|
|
Note:1,the gearbox is heavy -duty Helical-bevel gear 2,WEG or China domestic electric motor | ||
Mini. Air compressor | |
Rated output |
300L/min |
Rated pressure |
7 bar |
Peristaltic pump type mortar plaster spraying machine parts:
Peristaltic pump type mortar plaster spraying machine Features:
1.Rigid tooth flank helical gear
2.nozzle specially design to get continuous spaying flow
3.mini air compressor
Application:
Peristaltic pump type mortar plaster spraying machine Package:
Workshop:
Customers:
Certificate:
