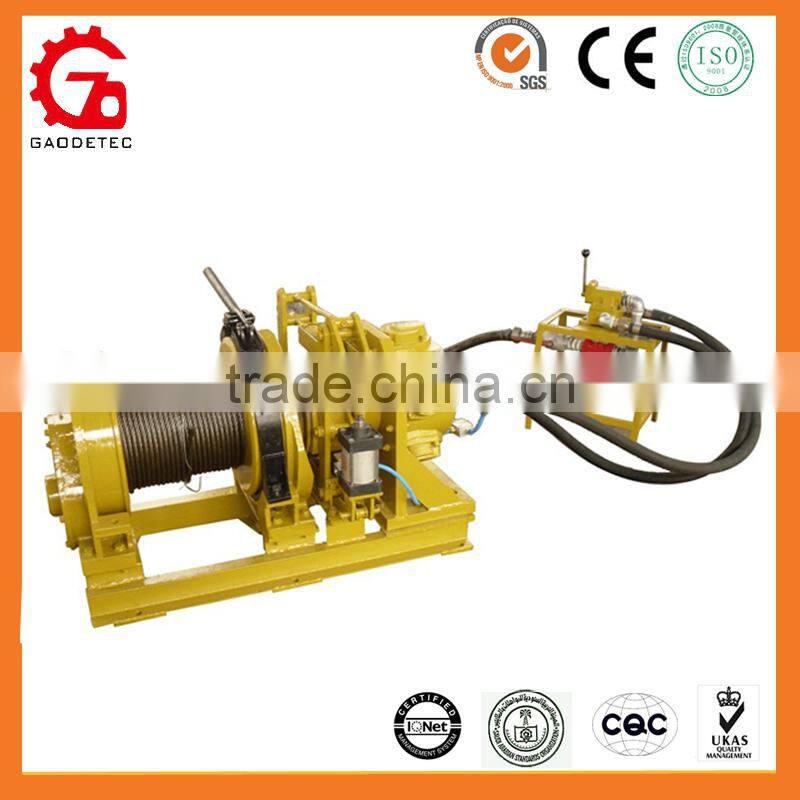

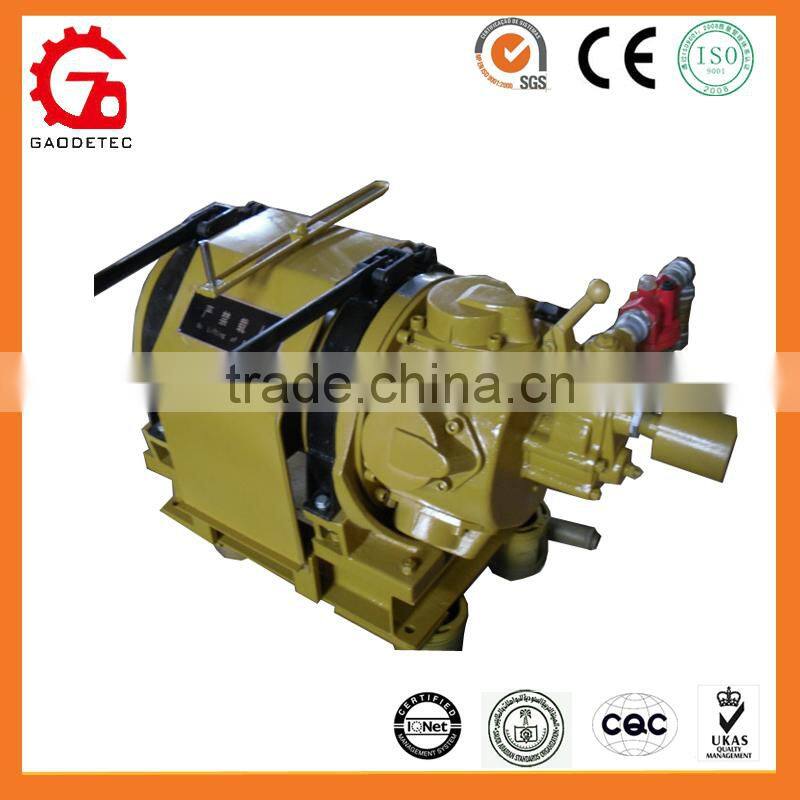

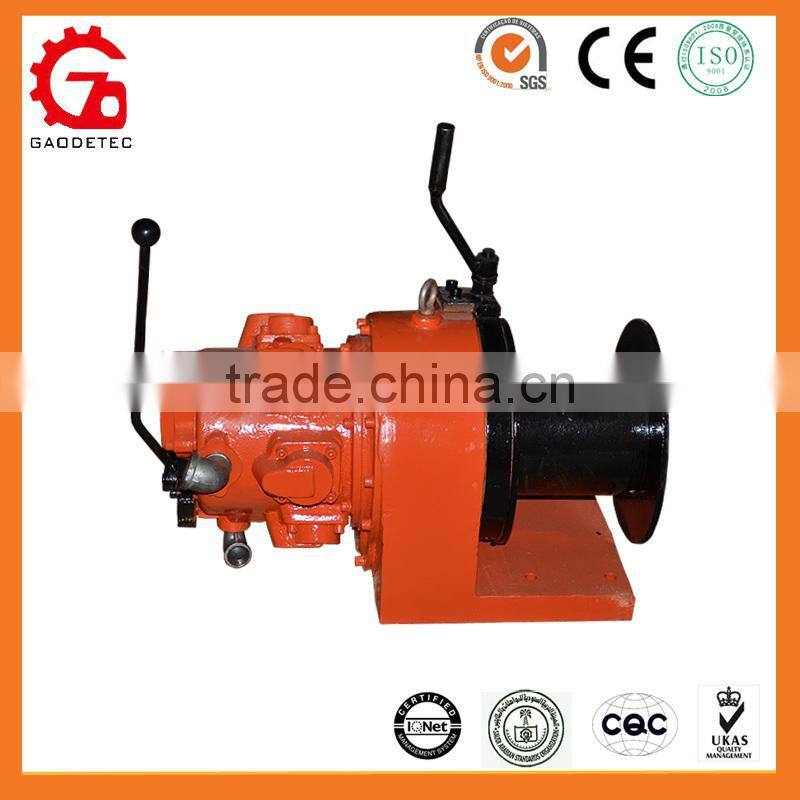

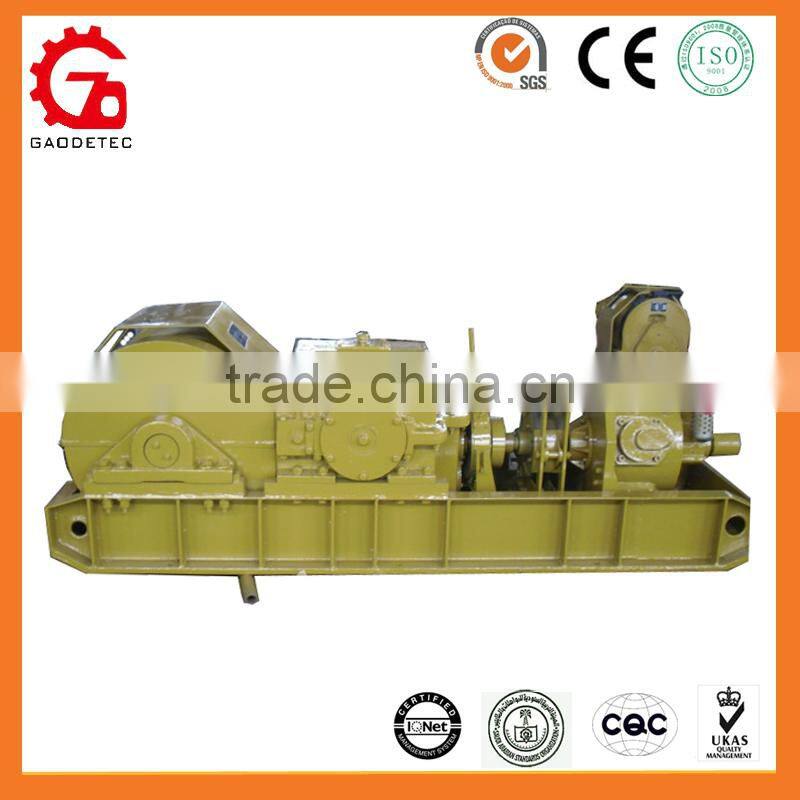

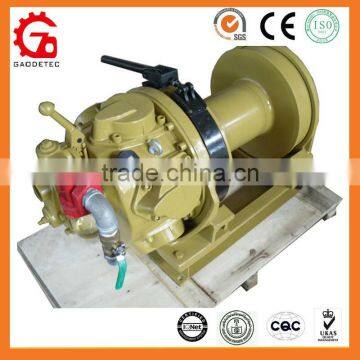

Widely used 3 ton pneumatic air motor winch
This 3 ton pneumatic air motor winch is powered by GMH15 piston air motor and remotely operated.
It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project, oil
field, etc.
Features of 3 ton pneumatic air motor winch:
1.reasonable design, compact structure, convenient control
2.easy to operate
3.stable under extremely conditions
Widely used 3 ton pneumatic air motor winch
3 Ton Air Motor Winch | ||||
1 | Air pressure(Mpa) | 0.6-0.8 | ||
2 | Rated Tension(KN) | 30 | ||
3 | Rated Speed(m/min) | 24 | ||
4 |
Air motor | Rated power(KW) | 15 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | Quantity | 1 | |
Diameter(mm) | 222 | |||
Width(mm) | 335 | |||
Rope capacity(m) | 150 | |||
6 | Rope diameter(mm) | 16 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 |
Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||
Other air motor winch:
1 Ton Air Winch:
1 | Air pressure(Mpa) | 0.6 | |
2 | Rated Tension(KN) | 10 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 4.4 |
Cylinder Qty.(pcs) | 6 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 180 | ||
width(mm) | 200 | ||
Rope capacity(m) | 120 | ||
6 | Rope diameter(mm) | 8 | |
7 | Air hose diameter(mm) | 25 | |
8 |
dimension
| length(mm) | 757.5 |
width(mm) | 350 | ||
height(mm) | 521 | ||
2 Ton Air Winch:
1 | Air pressure(Mpa) | 0.6-0.8 | |
2 | Rated Tension(KN) | 20 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 8 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 222 | ||
width(mm) | 335 | ||
Rope capacity(m) | 150 | ||
6 | Rope diameter(mm) | 16 | |
7 | Air hose diameter(inch) | 1.25 | |
5 Ton Air Winch:
1 | Air pressure(Mpa) | 0.6-0.8 | ||
2 | Rated Tension(KN) | 50 | ||
3 | Rated Speed(m/min) | 12 | ||
4 | Air motor | Rated power(KW) | 18 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | quantity | 1 | |
Diameter(mm) | 222 | |||
width(mm) | 335 | |||
Rope capacity(m) | 150 | |||
6 | Rope diameter(mm) | 20 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 | Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||
10 Ton Air Winch:
1 | Air pressure(Mpa) | 0.8 | |
2 | Rated Tension(KN) | 100 | |
3 | Rated Speed(m/min) | 6 | |
4 | Air motor | Rated power(KW) | 18.4 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | OD(mm) | 800 |
ID(mm) | 430 | ||
Width(mm) | 550 | ||
Rope capacity(m) | 100 | ||
6 | Rope diameter(mm) | 24 | |
7 | Air hose diameter(mm) | 50 | |
8 |
Dimension
| length(mm) | 2860 |
width(mm) | 970 | ||
height(mm) | 900 | ||

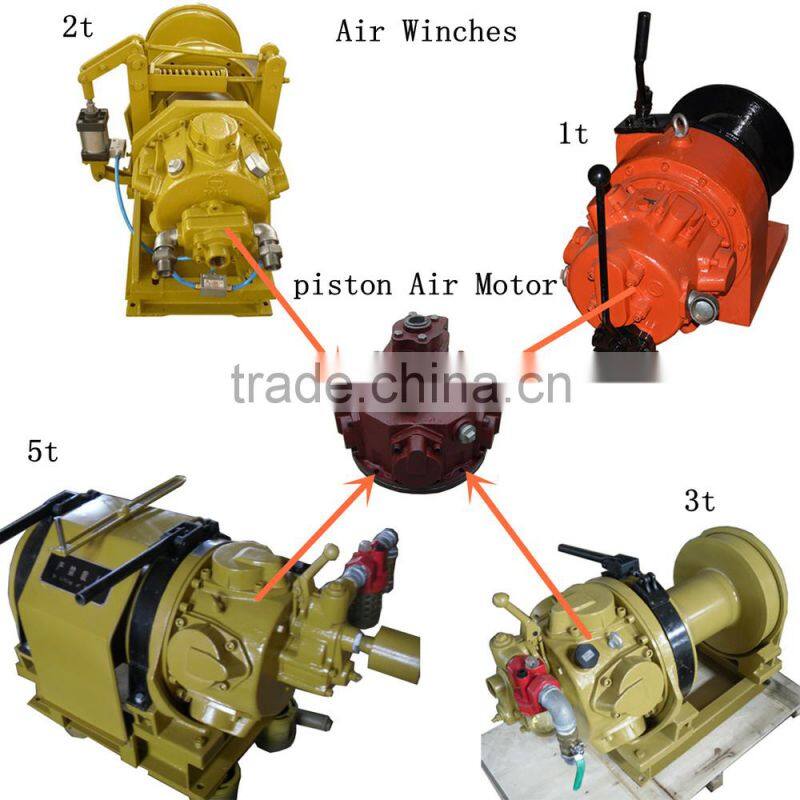

Air Winch with Piston Air Motor:

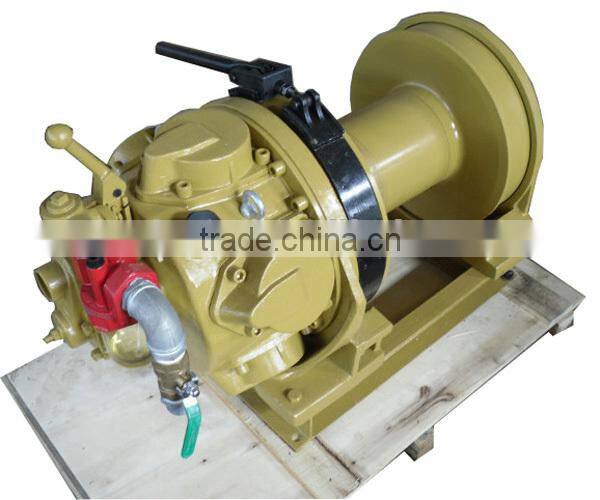

Widely used 3 ton pneumatic air motor winch
Workshop:
