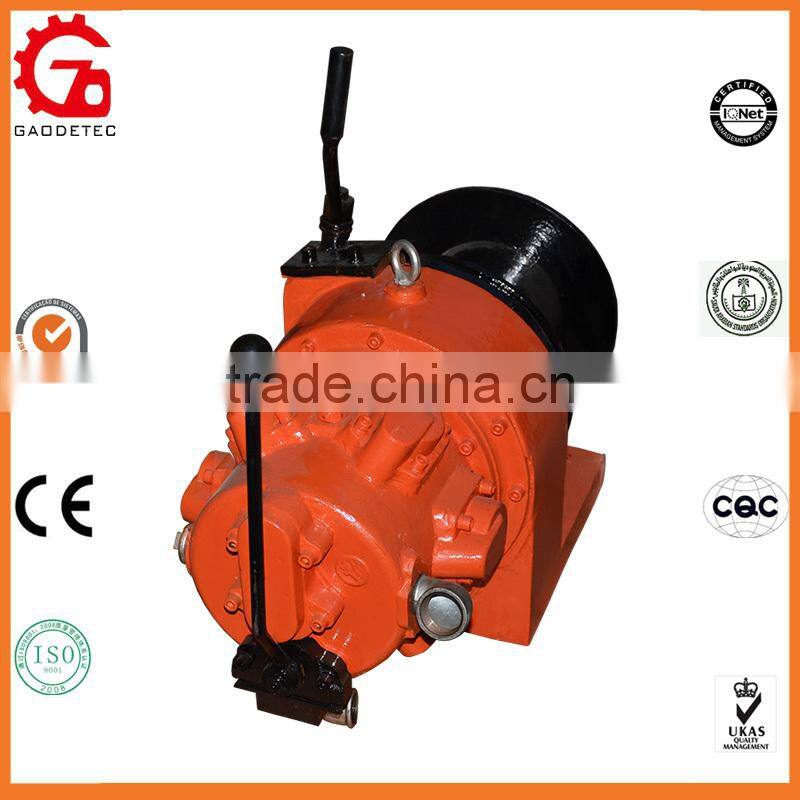

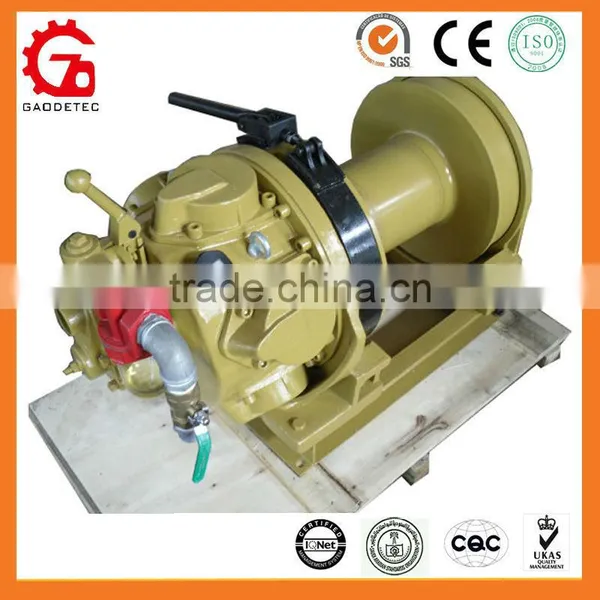

Mining and construction used 3 ton air powered winch
This 3 ton air powered winch is powered by GMH15 piston air motor and remotely operated.
It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project,
oil field, etc.
3 ton air powered winch features:
1.reasonable design, compact structure, convenient control
2.easy to operate
3.stable under extremely conditions
Mining and construction used 3 ton air powered winch
3 Ton air powered winch | ||||
1 |
Air pressure(Mpa) |
0.6-0.8 |
||
2 |
Rated Tension(KN) |
30 |
||
3 |
Rated Speed(m/min) |
24 |
||
4 |
Air motor |
Rated power(KW) |
15 |
|
Cylinder Qty.(pcs) |
5 |
|||
5 |
Drum |
Quantity |
1 |
|
Diameter(mm) |
222 |
|||
Width(mm) |
335 |
|||
Rope capacity(m) |
150 |
|||
6 |
Rope diameter(mm) |
16 |
||
7 |
Air hose diameter(inch) |
1.25 |
||
8 |
Dimension |
length(mm) |
1200 |
|
width(mm) |
470 |
|||
height(mm) |
750 |
|||

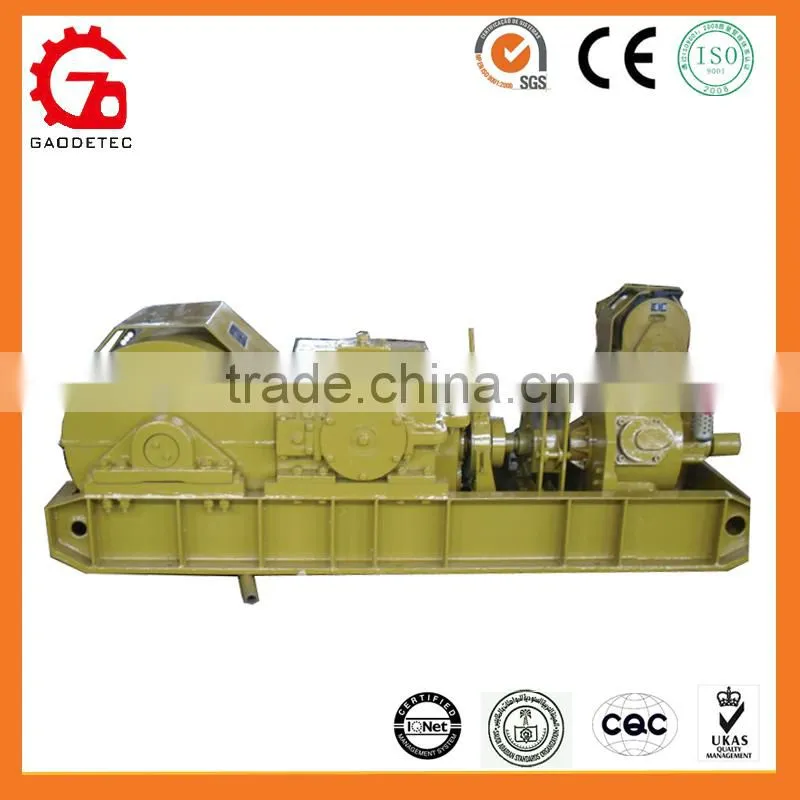

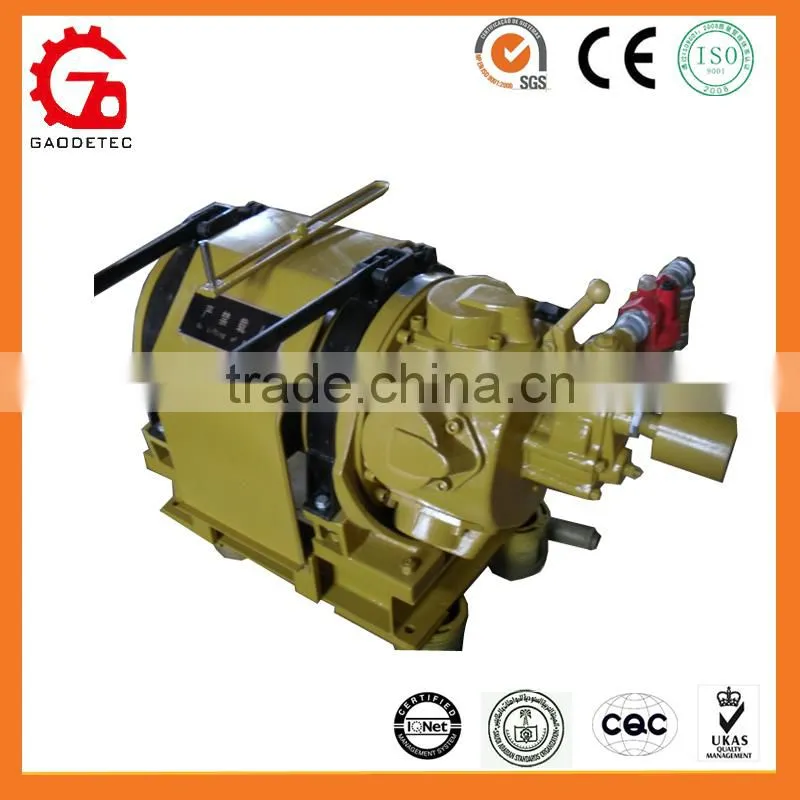

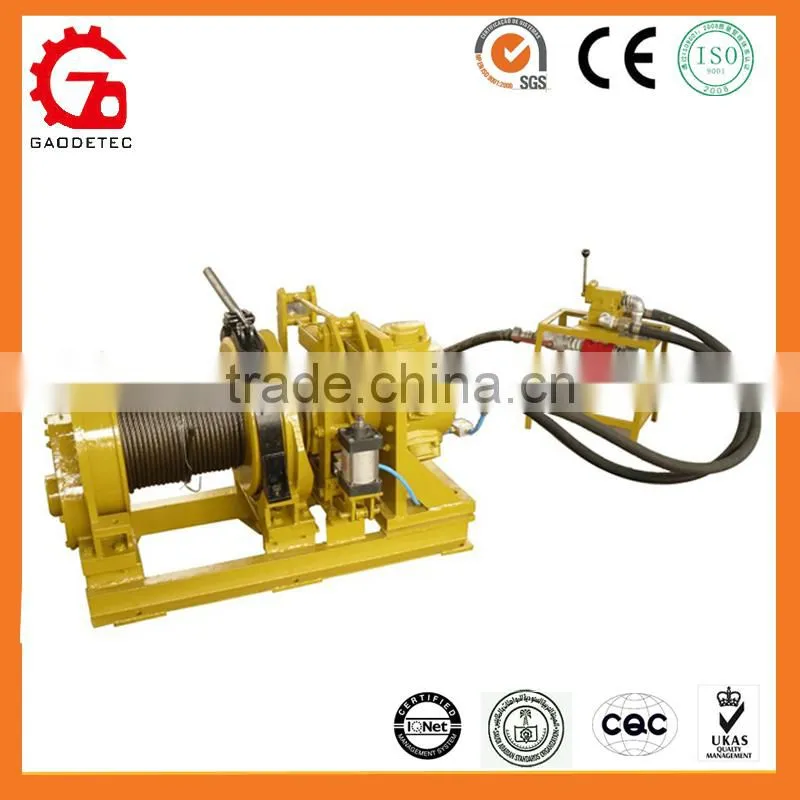

Other air powered winch:
1 ton air powerd winch:
1 |
Air pressure(Mpa) |
0.6 |
|
2 |
Rated Tension(KN) |
10 |
|
3 |
Rated Speed(m/min) |
24 |
|
4 |
Air motor |
Rated power(KW) |
4.4 |
Cylinder Qty.(pcs) |
6 |
||
5 |
Drum |
quantity |
1 |
diameter(mm) |
180 |
||
width(mm) |
200 |
||
Rope capacity(m) |
120 |
||
6 |
Rope diameter(mm) |
8 |
|
7 |
Air hose diameter(mm) |
25 |
|
8 |
dimension
|
length(mm) |
757.5 |
width(mm) |
350 |
||
height(mm) |
521 |
||
2 ton air powerd winch:
1 |
Air pressure(Mpa) |
0.6-0.8 |
|
2 |
Rated Tension(KN) |
20 |
|
3 |
Rated Speed(m/min) |
24 |
|
4 |
Air motor |
Rated power(KW) |
8 |
Cylinder Qty.(pcs) |
5 |
||
5 |
Drum |
quantity |
1 |
diameter(mm) |
222 |
||
width(mm) |
335 |
||
Rope capacity(m) |
150 |
||
6 |
Rope diameter(mm) |
16 |
|
7 |
Air hose diameter(inch) |
1.25 |
|
5 ton air powered winch:
1 |
Air pressure(Mpa) |
0.6-0.8 |
||
2 |
Rated Tension(KN) |
50 |
||
3 |
Rated Speed(m/min) |
12 |
||
4 |
Air motor |
Rated power(KW) |
18 |
|
Cylinder Qty.(pcs) |
5 |
|||
5 |
Drum |
quantity |
1 |
|
Diameter(mm) |
222 |
|||
width(mm) |
335 |
|||
Rope capacity(m) |
150 |
|||
6 |
Rope diameter(mm) |
20 |
||
7 |
Air hose diameter(inch) |
1.25 |
||
8 |
Dimension |
length(mm) |
1200 |
|
width(mm) |
470 |
|||
height(mm) |
750 |
|||
10 ton air powered winch:
1 |
Air pressure(Mpa) |
0.8 |
|
2 |
Rated Tension(KN) |
100 |
|
3 |
Rated Speed(m/min) |
6 |
|
4 |
Air motor |
Rated power(KW) |
18.4 |
Cylinder Qty.(pcs) |
5 |
||
5 |
Drum |
OD(mm) |
800 |
ID(mm) |
430 |
||
Width(mm) |
550 |
||
Rope capacity(m) |
100 |
||
6 |
Rope diameter(mm) |
24 |
|
7 |
Air hose diameter(mm) |
50 |
|
8 |
Dimension
|
length(mm) |
2860 |
width(mm) |
970 |
||
height(mm) |
900 |
||

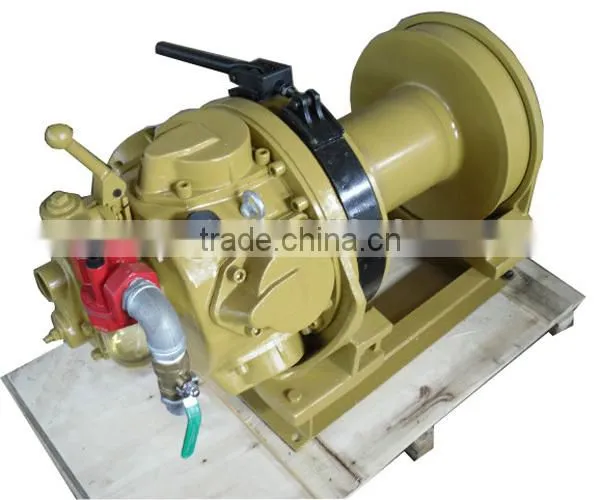

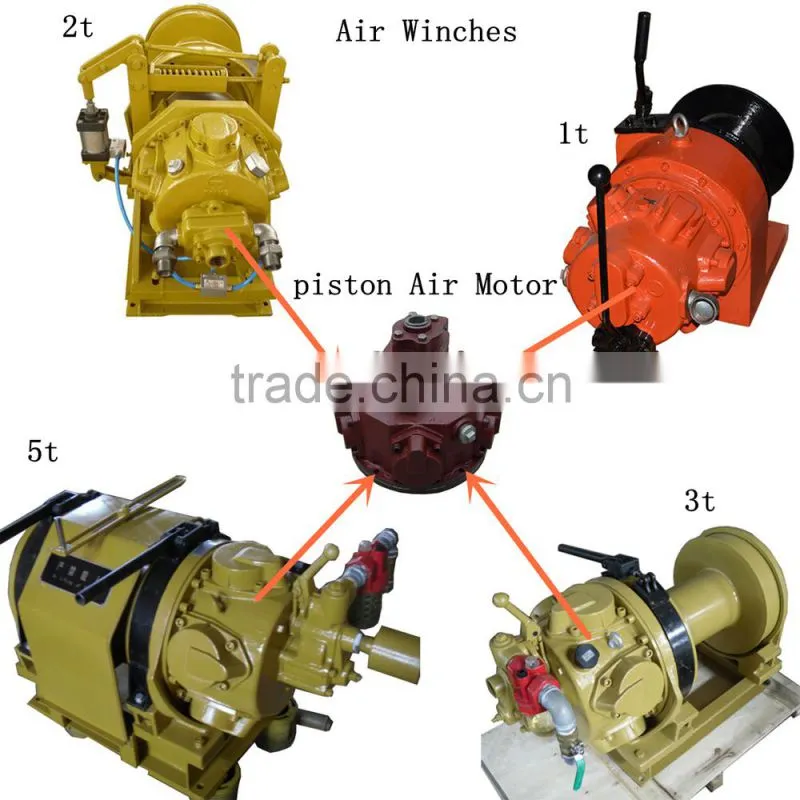

Air Powered Winch with Piston Air motor:
Package:
Workshop:
Certificate:
