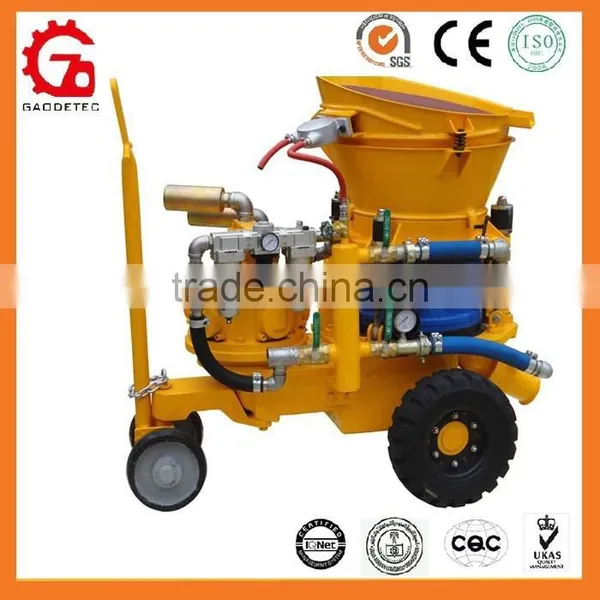

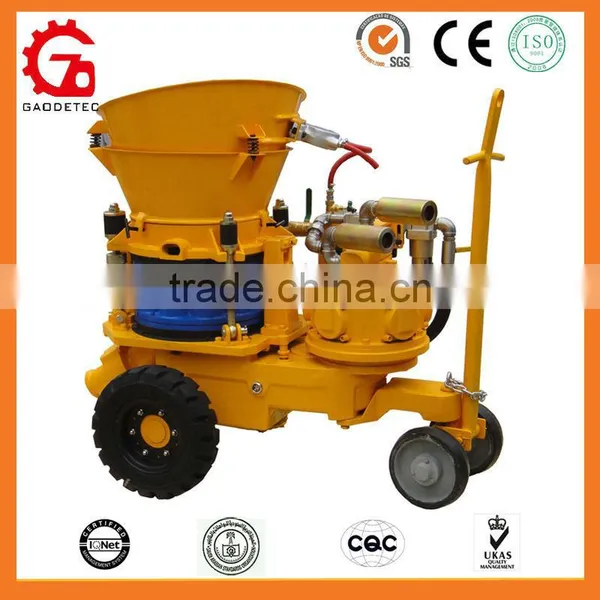

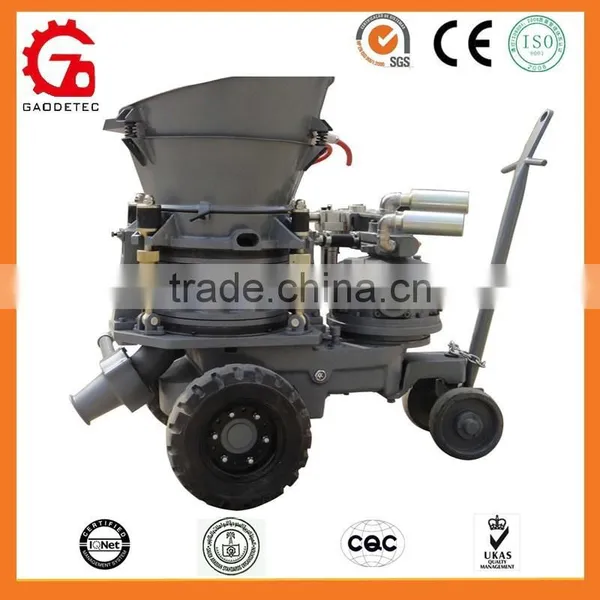

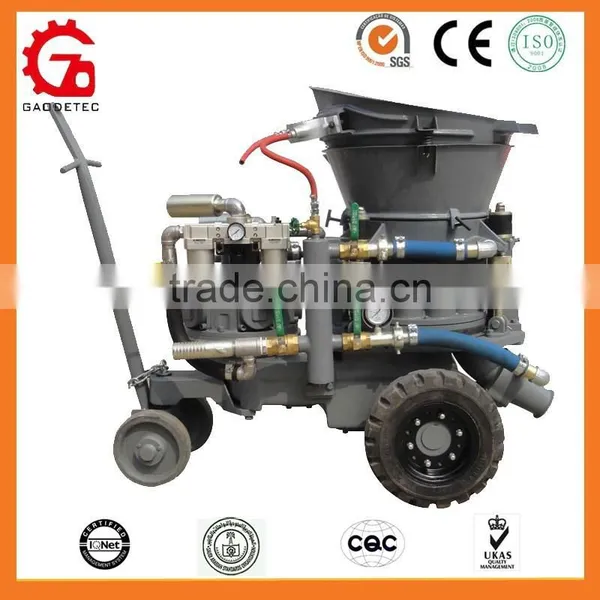

GZ5 ISO supplier anti-explosion air motor drive tunnel shotcrete machine
GZ-5 tunnel shotcrete machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors. GZ-5 tunnel shotcrete machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.
GZ-5 tunnel shotcrete machine is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
GZ5 ISO supplier anti-explosion air motor drive tunnel shotcrete machine features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life
GZ5 ISO supplier anti-explosion air motor drive tunnel shotcrete machine technical data:
Air motor drive:
Output Capacity | 2.5-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ15 mm |
Conveying Hose Inner Diameter | Φ51 mm |
Conveying Pressure | 0.2-0.4MPa |
Air Consumption for conveying material | 7~8m3/min |
Air Motor Air Pressure | 0.5MPa |
Material Charging Height | 1.1m |
Rotor Speed | 10rpm |
Air Motor Type | TMH6A |
Air Motor Air Consumption | 7.5m3/min |
Overall Dimension(length×width×height) | 1.35×0.75×1.2m |
Net Weight | 720kg |

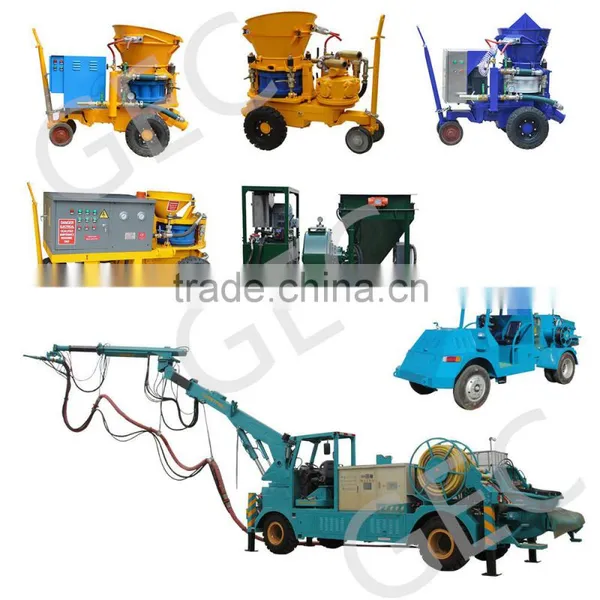

Application:
Package:
Workshop:
Certificate:
