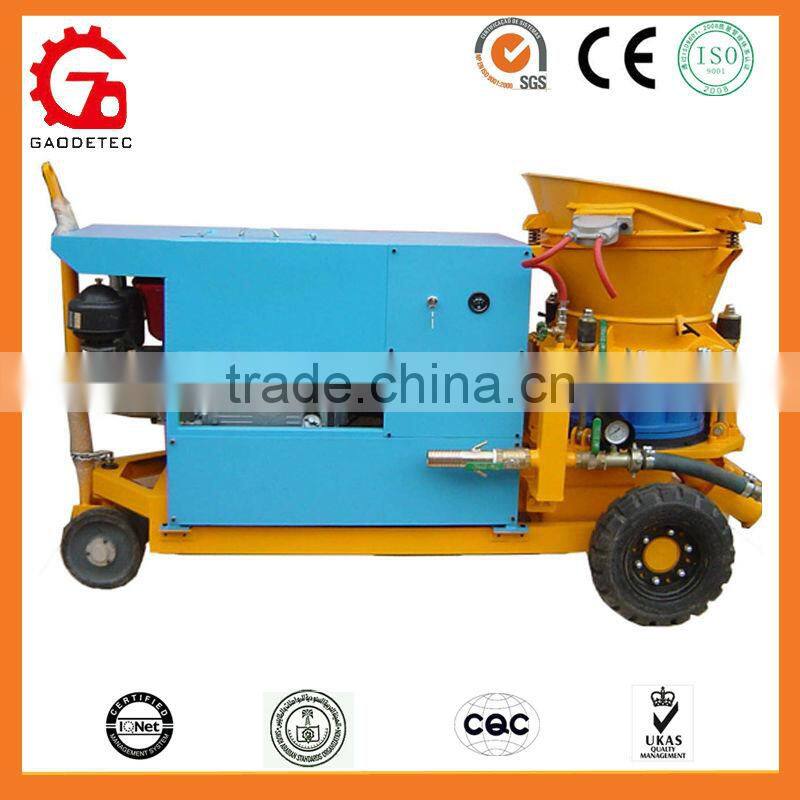

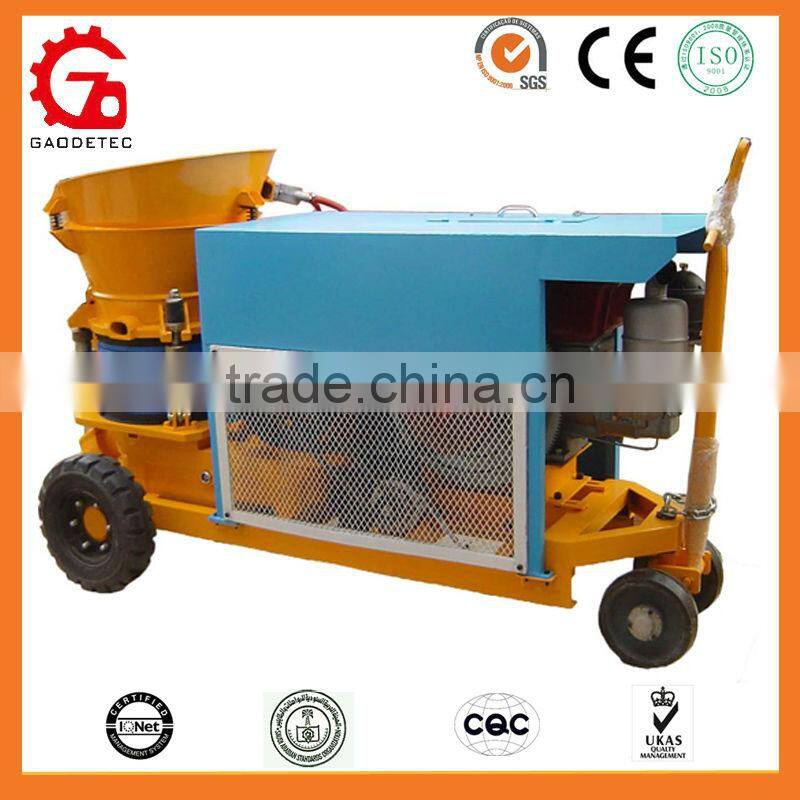

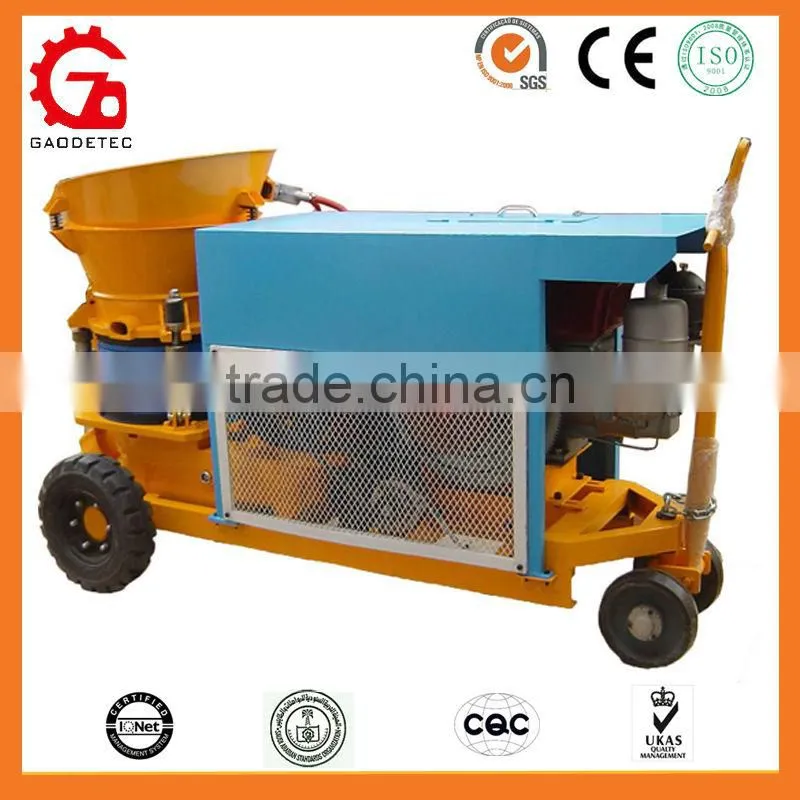

5m3/h diesel driven dry mix gunite shotcrete machine
5m3/h diesel driven dry mix gunite shotcrete machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors. 5m3/h diesel driven dry mix gunite shotcrete machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.

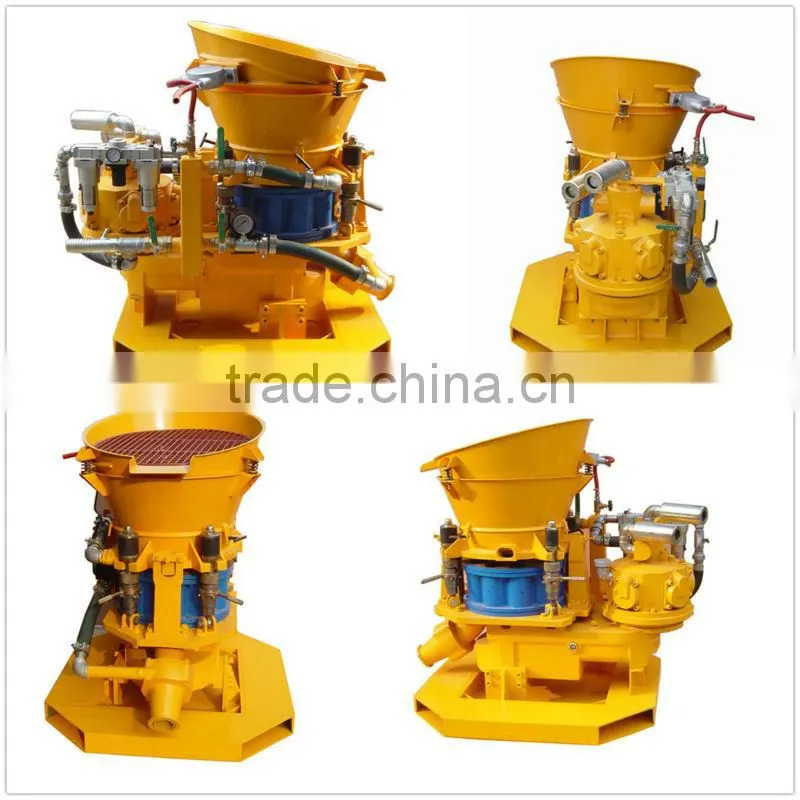

GZ-5 shotcrete gunite machine is available in following versions:
Air motor driver or electric drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
5m3/h diesel driven dry mix gunite shotcrete machine features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
5m3/h diesel driven dry mix gunite shotcrete machine technical data:
Diesel drive:
Output Capacity | 3-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Water cement ratio | <0.4 |
Max. Aggregate Size | Dia.15 mm |
Conveying Hose Inner Diameter | Dia.51 mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 9m3/min(325CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Diesel Type | CF1105M |
Power | 13kw/18hp |
Overall Dimension(L× W× H) | 2.2×0.96×1.2m |
Net Weight | 850kg |

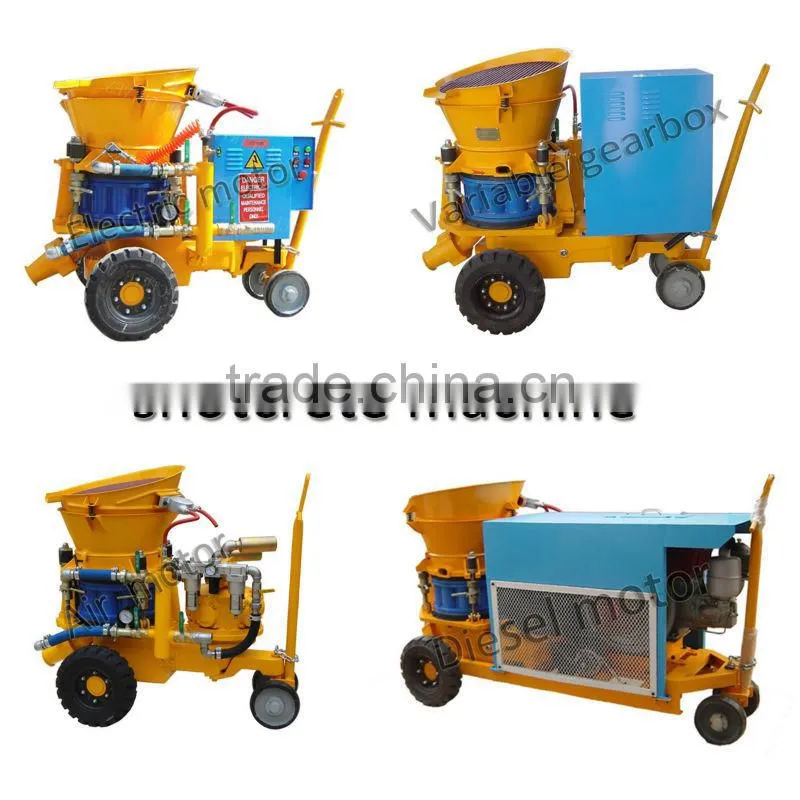

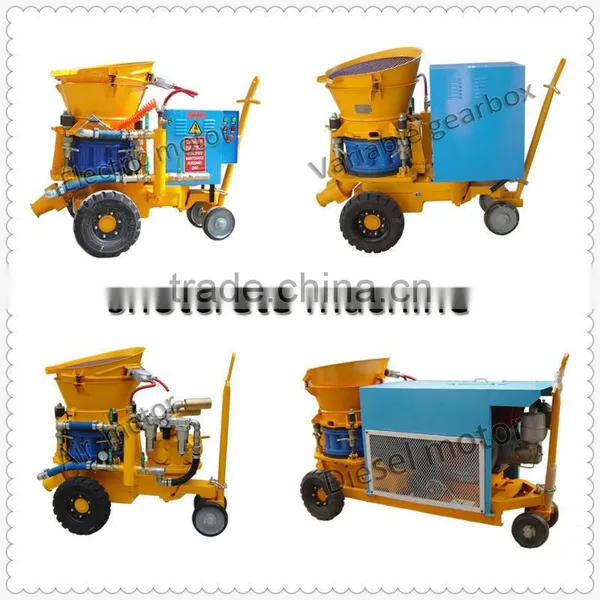

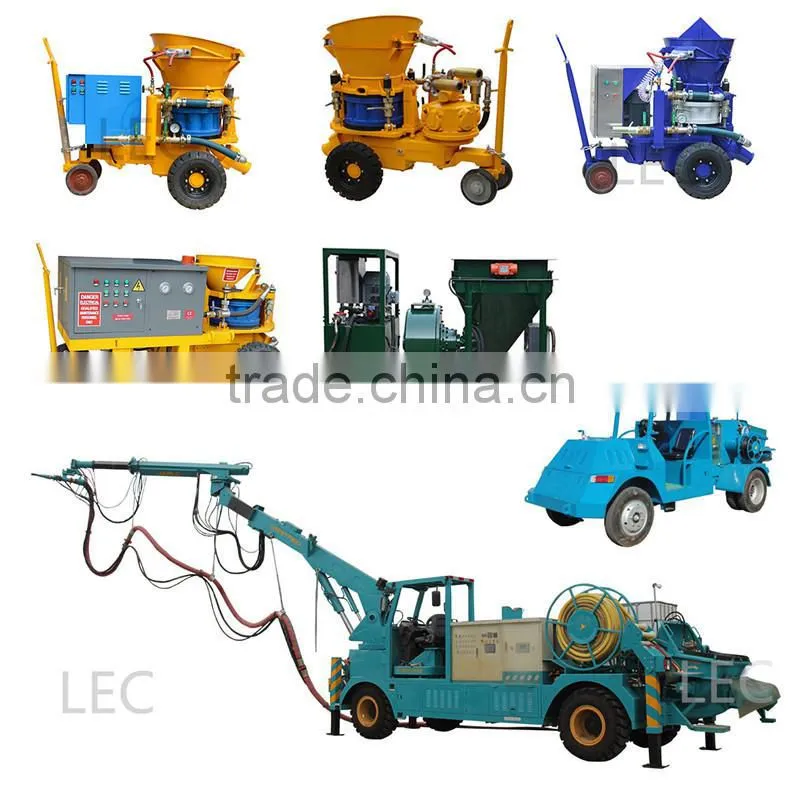

GZ-5 Series Expanded Shotcrete Gunite Machine according to the customers' request:

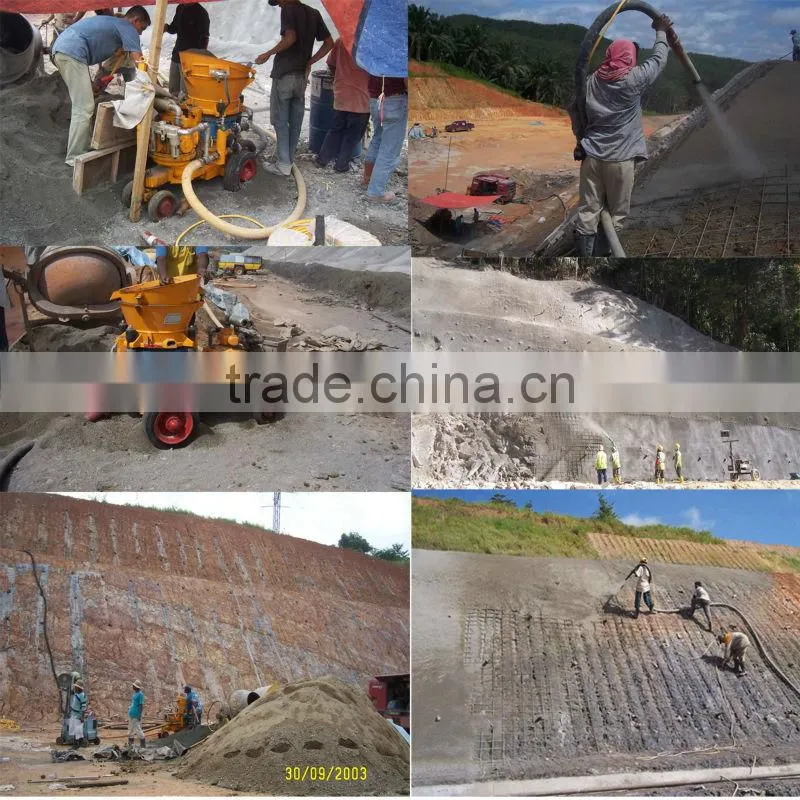

Gunite Shotcrete Machine Application On Sites:
Work place:
Gunite Shotcrete Machine Certificates:
CE AND ISO9001
Send Inquiry to This Supplier
