Specifications
Dosing Pump Peristalticlenoid diaphragm
2.high precision
3.wide application
4.CE & ISO

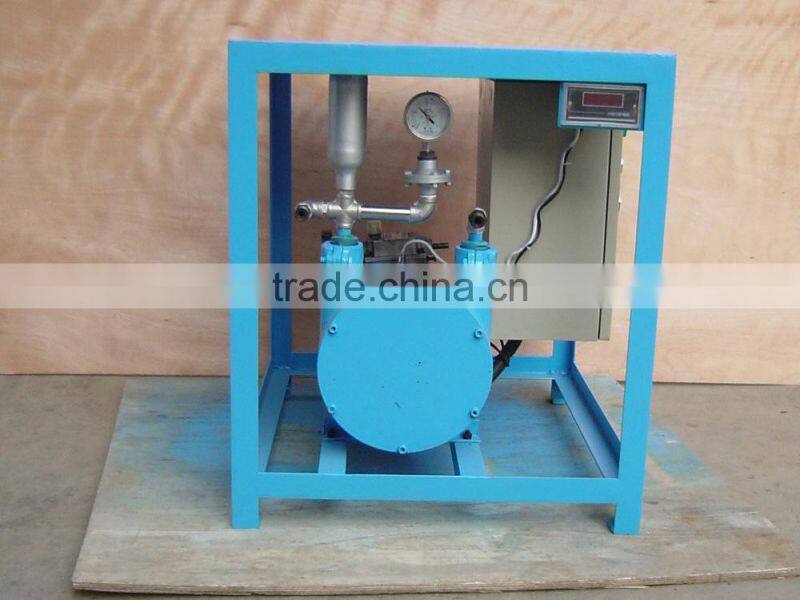

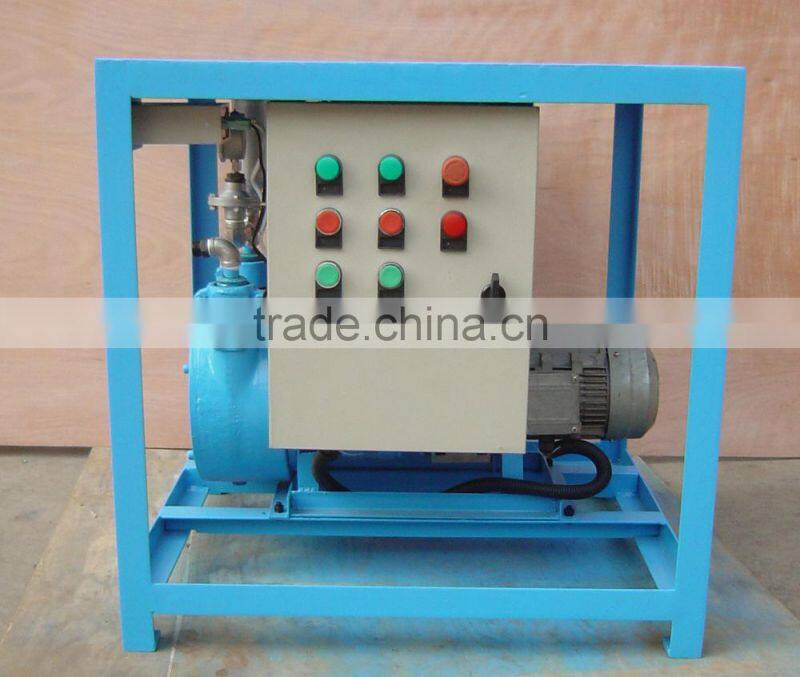

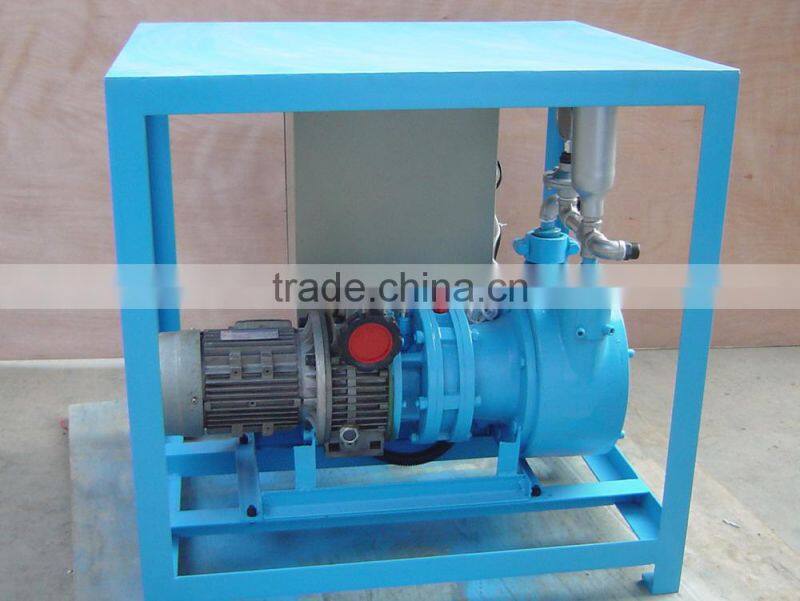

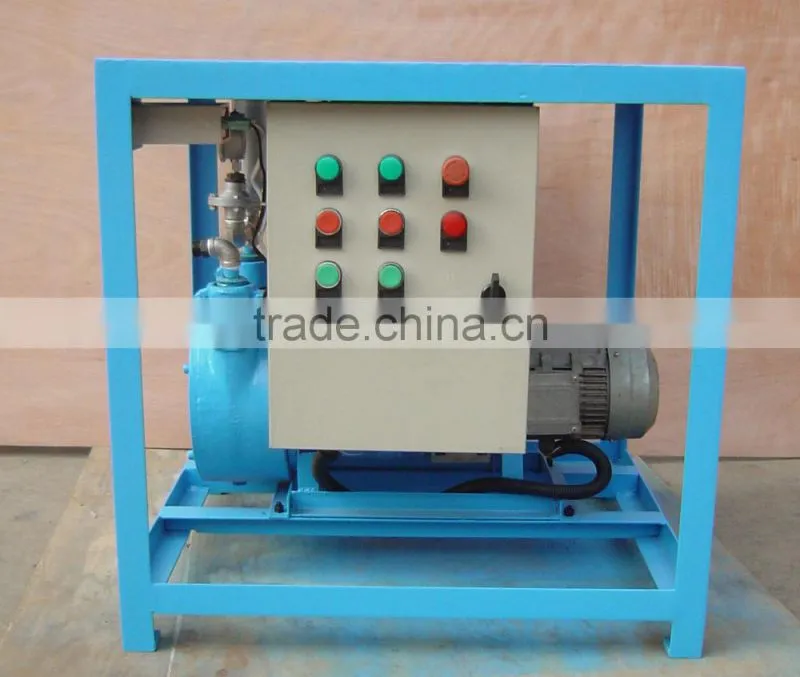

GH15 Dosing Pump Peristaltic Pump
Product Application ( Dosing Pump Peristaltic Pump )
GH15 dosing pump unit is a kind of peristaltic pump, which is used for dosing liquid additive for concrete shotcrete or refractory shotcrete applications.
with 1% repeat precision and 5 meter suck lift 2 meter.

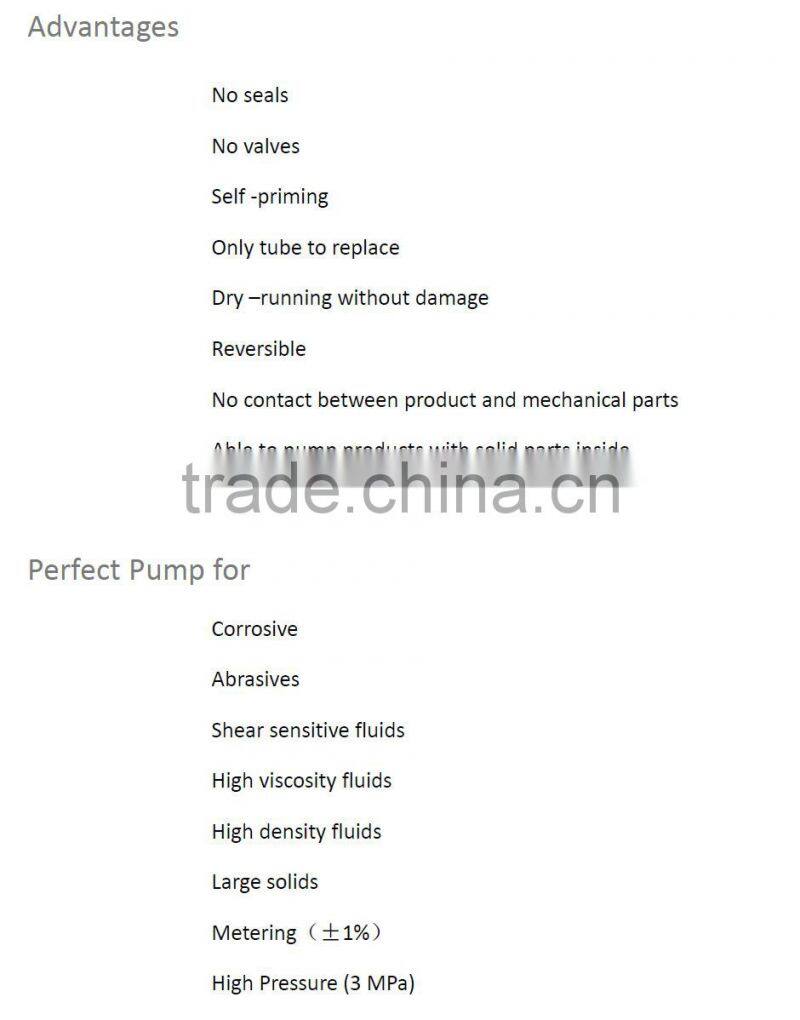

Product Features ( Dosing Pump Peristaltic Pump )
Solenoid Acid Metering Pump Parameters
Output Capacity |
24-120L/h |
Max. Particle Size |
3 mm |
Max.Work Pressure |
8 bar/116PSI |
Max. Suck lift |
2 meter |

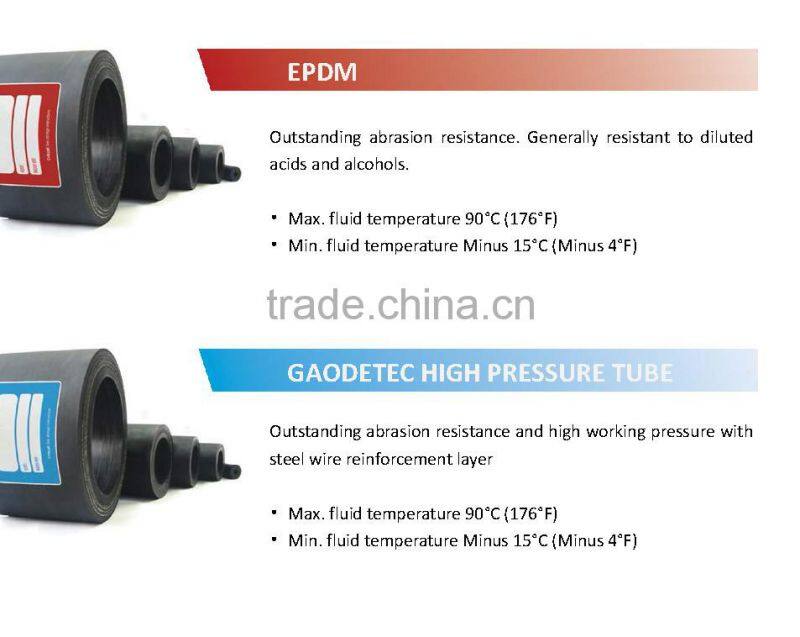

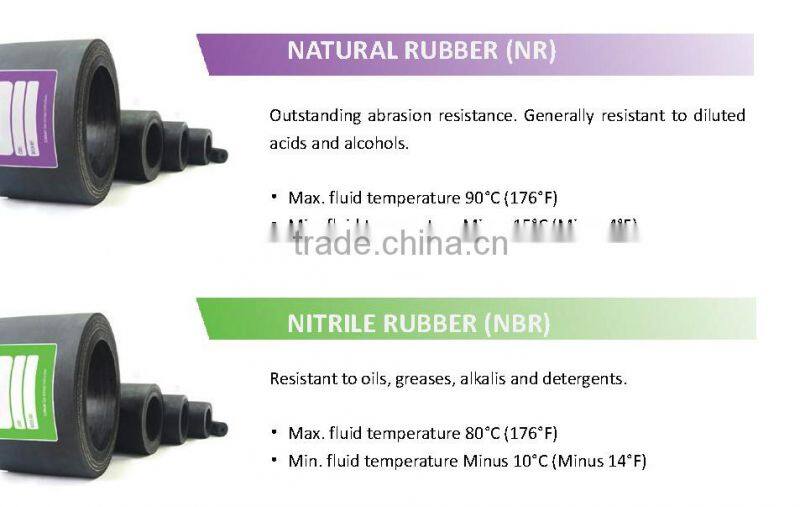

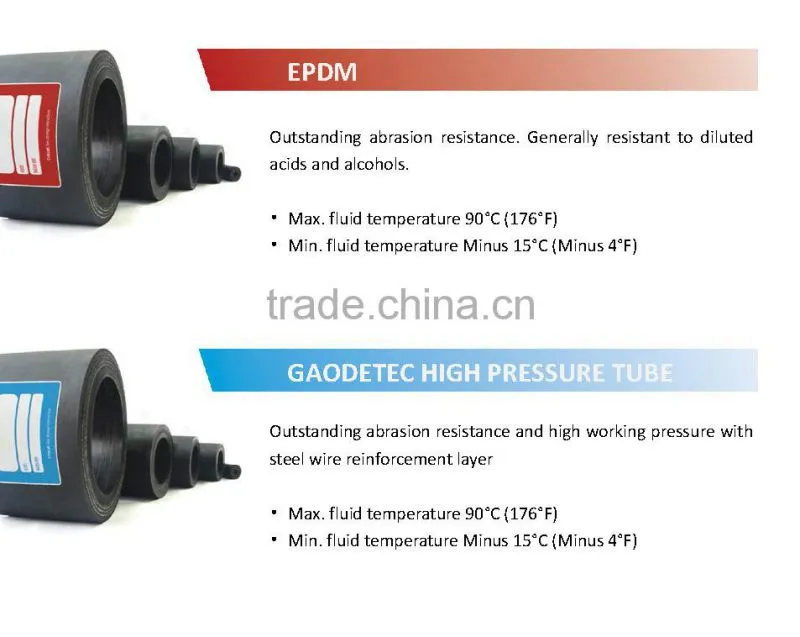

Hose Tube ID |
15mm |
Electric motor |
0.75Kw, 3 phase 380V |
Overall Dimension(length×width×height) |
0.86×0.76×0.85m |
Net Weight |
105kg |

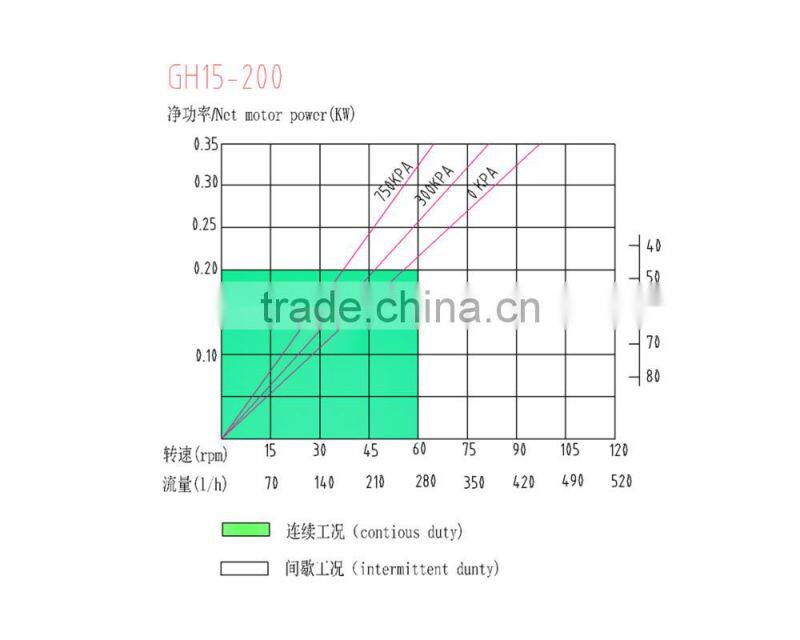

Performance Curve of Dosing Pump Peristaltic Pump

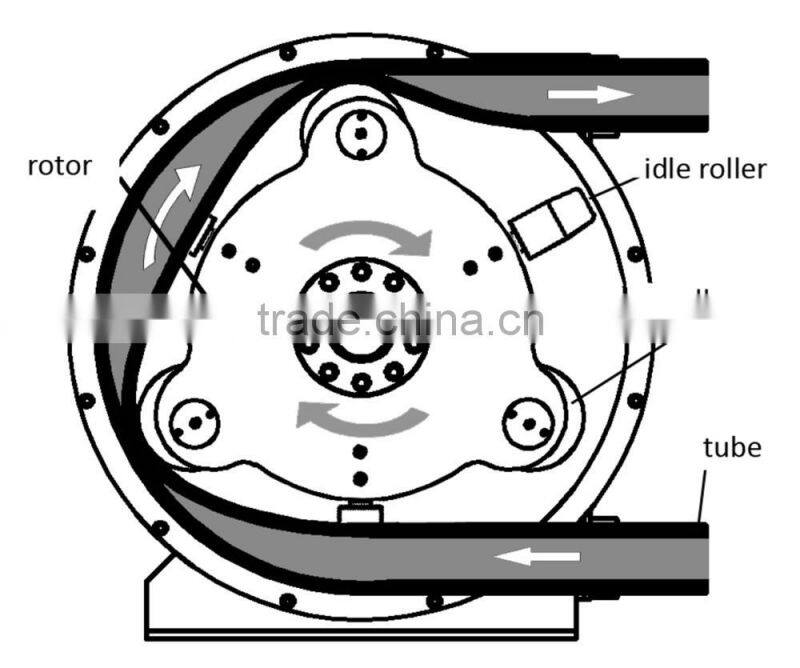

Structure of Dosing Pump Peristaltic Pump
Dosing Pump Peristaltic Pump Model Selecting
1. the transmission medium or liquid name ( water, drug name and so on)
2. the flow (L/H)
3. the systerm pressure (Mpa)
4. the medium temperature
5. the vicosity of the transmission medium(CP)
6. connectors ( screw or flange )
Cooperating Cases
Please tell me the details about the medium and the solenoid diaphragm small metering pump you need. Thanks!
For more questions, please feel free to contact me!
