Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Leak-free Hydraulic Diaphragm Dosing Pump

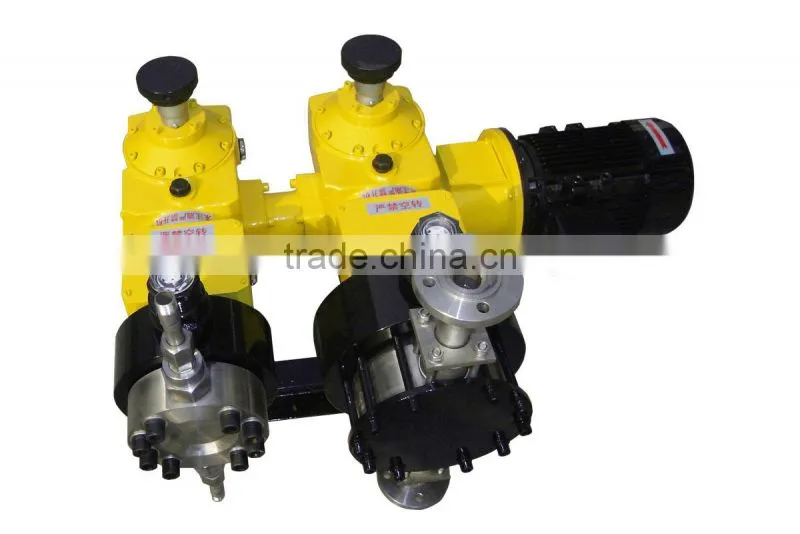

Leak-free Hydraulic Diaphragm Dosing Pump

Leak-free Hydraulic Diaphragm Dosing Pump thumbnail-3

Leak-free Hydraulic Diaphragm Dosing Pump thumbnail-4

Leak-free Hydraulic Diaphragm Dosing Pump thumbnail-5

Leak-free Hydraulic Diaphragm Dosing Pump thumbnail-6

Leak-free Hydraulic Diaphragm Dosing Pump photo-1

Leak-free Hydraulic Diaphragm Dosing Pump photo-2

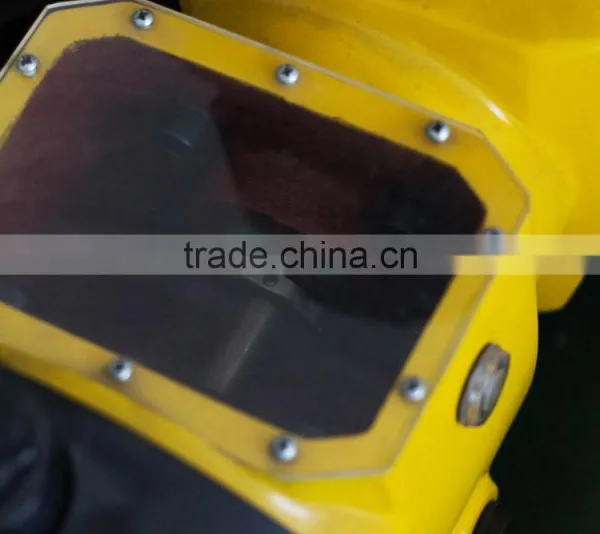

Leak-free Hydraulic Diaphragm Dosing Pump photo-3

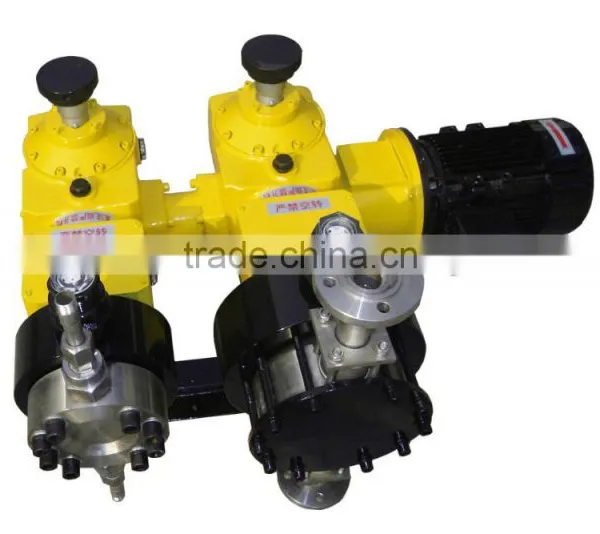

Leak-free Hydraulic Diaphragm Dosing Pump photo-4

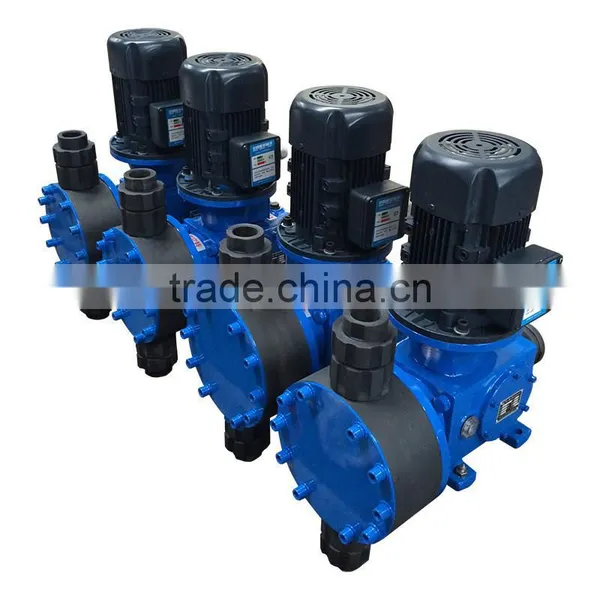

Leak-free Hydraulic Diaphragm Dosing Pump photo-5

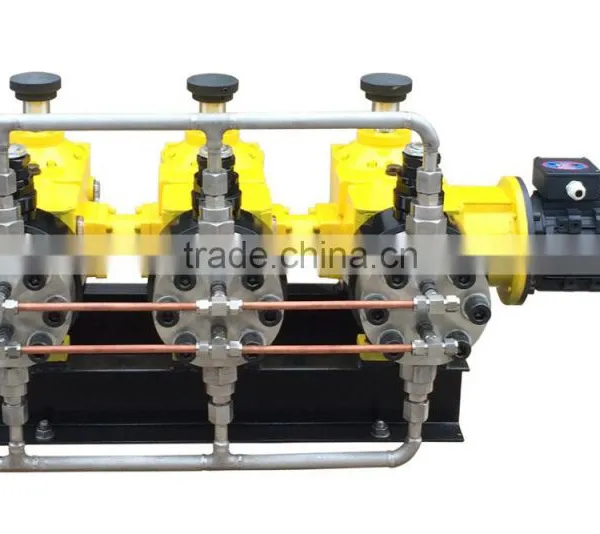

Leak-free Hydraulic Diaphragm Dosing Pump photo-6

US$ 3,570 - 8,650 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

GEC

Model Number:

JM4 series dosing pump

Contact Supplier Request Quote Chat Now

Zhengzhou Gaode Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or as the customers' request

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name GEC

Model Number JM4 series dosing pump

Theory Other, detergent dosing pump

Structure Diaphragm Pump

Usage Other, water, oir, air and so on

Power Hydraulic

Standard or Nonstandard Standard

Fuel Other, electricity

Pressure Other, low or high pressure

Application Other, petrochemical, chemistry industry, water, refinery processes and so on

Dosing Pump

Product Description

Dosing Pump in Dosing System

Hydraulic Dosing Pump Main Features:

1.Driving end

a. Eccentric mechanism driving, compact structure, small installing space.

b. Unique worm wheel structure or screw structure, promises the stable and successive work of the mechanic driving parts.

c. The roller bearing in the bottom of the screw promises the long time stable heavy-load running.

d. Oil bath lubrication systerm, long service life.

e. The flow is adjustable when running or stopping. The adjustment can be hand, electricity, air driving or frequency conversion.

2. Hydraulic end

a. Hydarulic driving diaphragm promises the long service life of the diaphragm.

b. High precision one-way check valve structure make dosing pumps precisely add.

c. Inner adjustable pressure relief valve can automatically protect the diaphragm and pump head from being damaged.

d. PVC, PVDF, 316SS, alloy 20 or 22, Hastelloy and other materials of pump heads are suitable for various fluids.

e. Optional pressure type double-diaphragm leaking hunting alarm ( on site or long range ).

Main Application:

Better dosing accuracy than Mechanical Diaphragm Dosing Pump,

Better sealing than Plunger Dosing Pump.

Suitable for strong corrosives, volatiles, easy-crystalizing, inflammable, explosive, highly toxic, high density, high viscosity, and valuable liquids. Also capable for turbid liquid.

Widely applied in Petrifaction, chemical industry, refinery processes, power plant boiler water treatment and so on.

Company Information

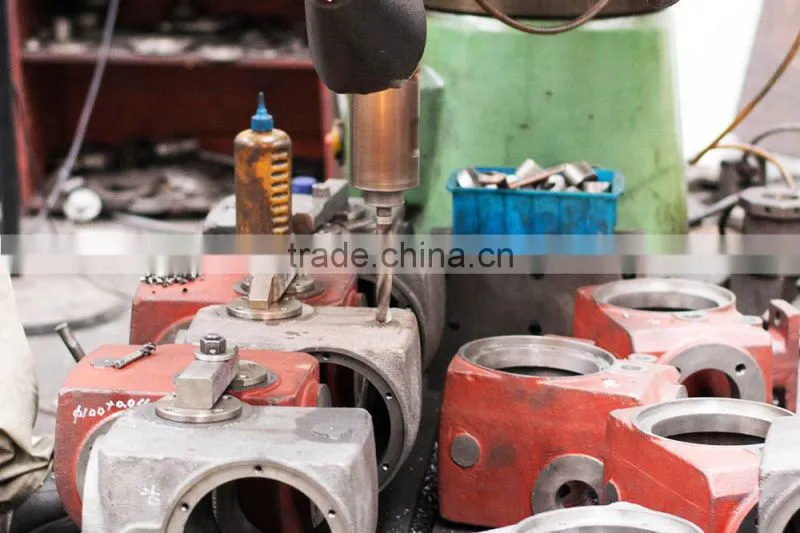

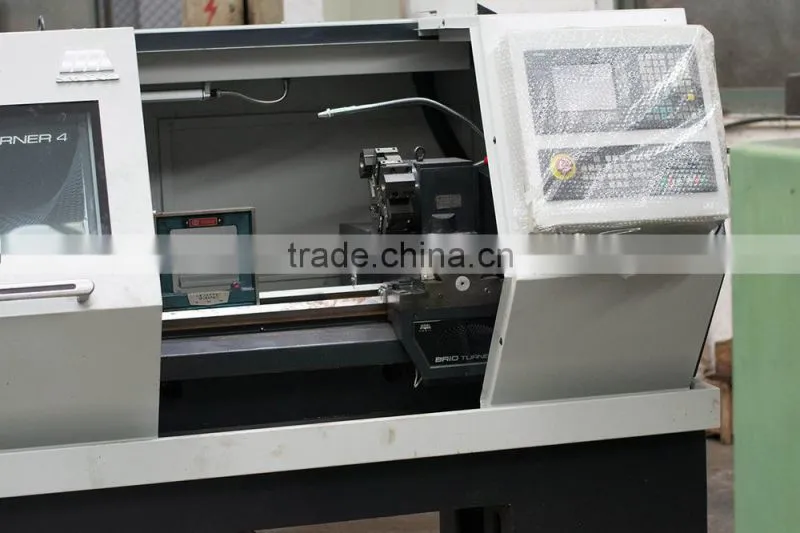

Processing of Dosing Pump

Worm of Hydraulic Dosing Pump

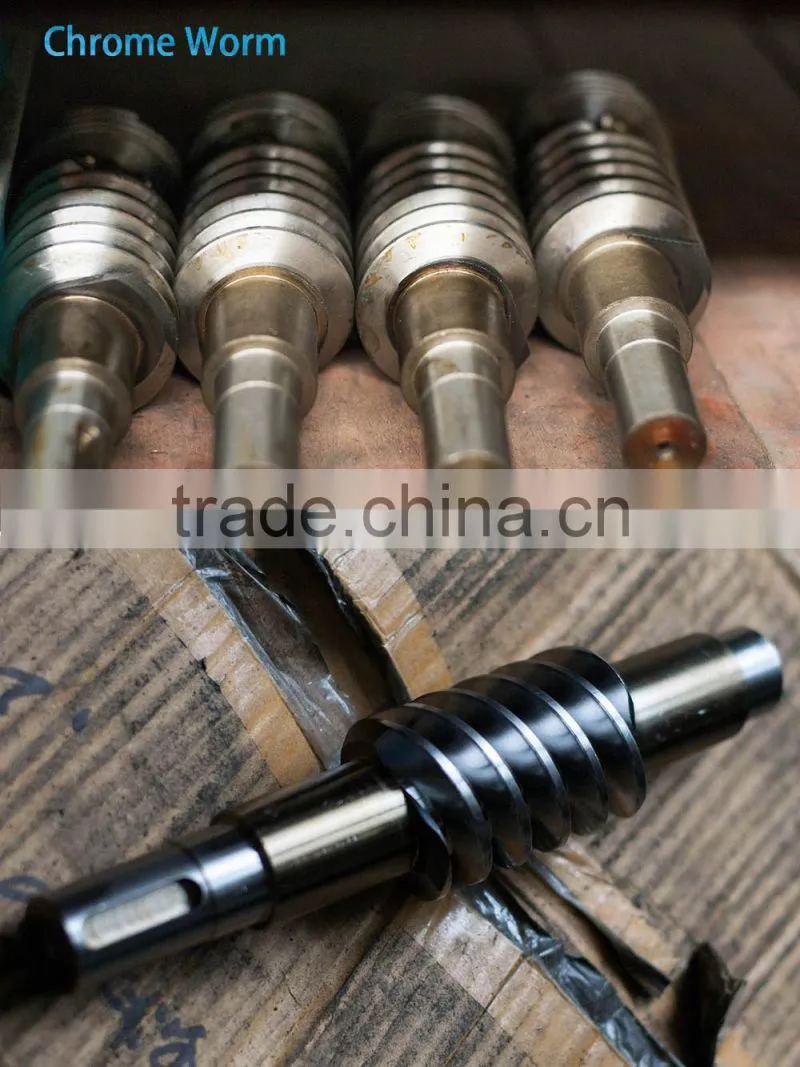

Chrome Worm

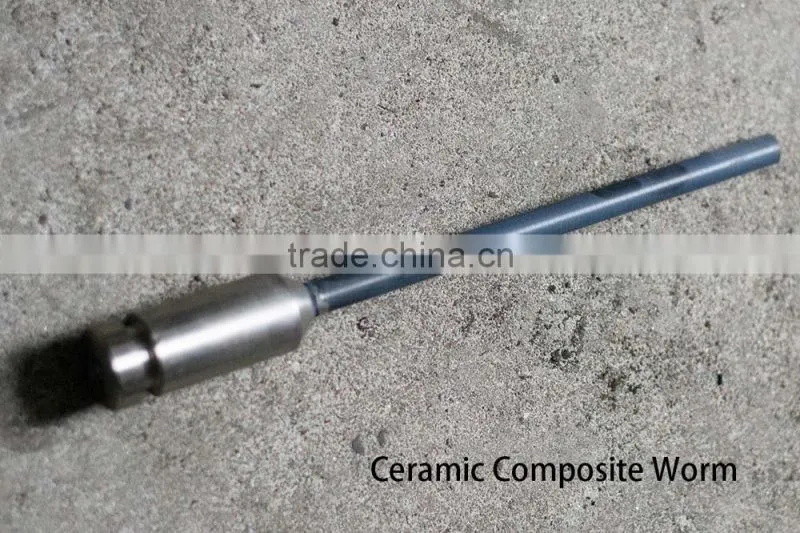

Ceramic Worm

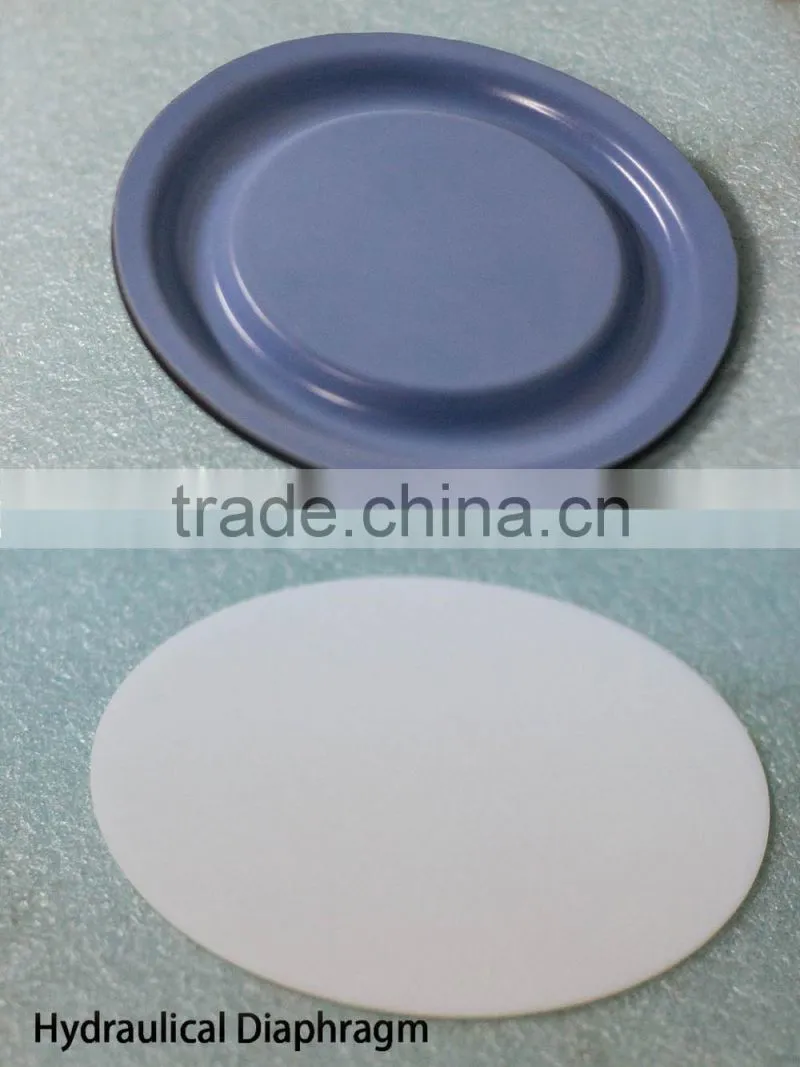

Diaphragm in Dosing Pump Stearic Acid

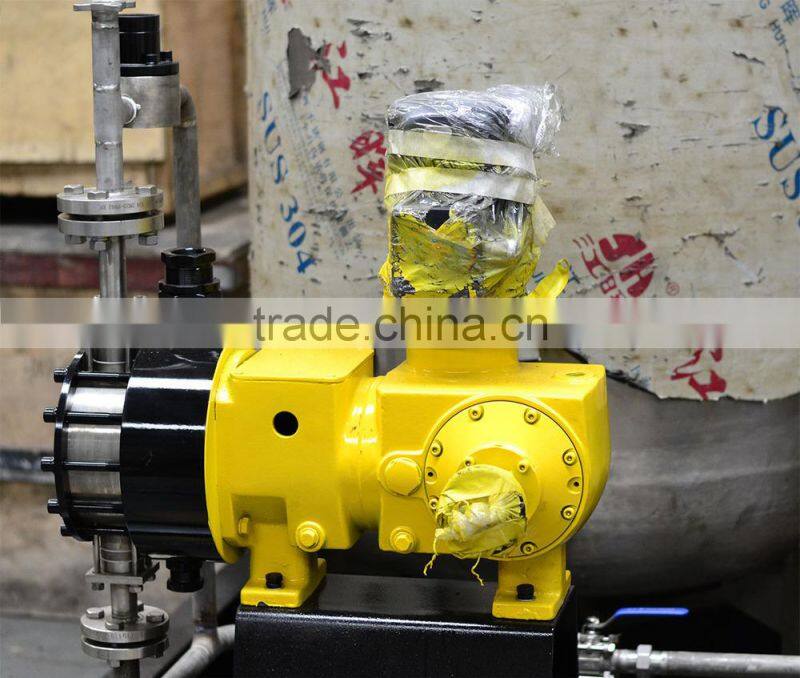

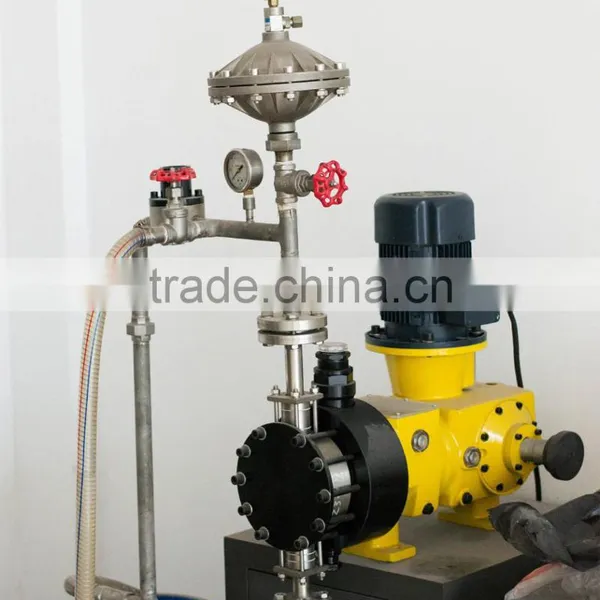

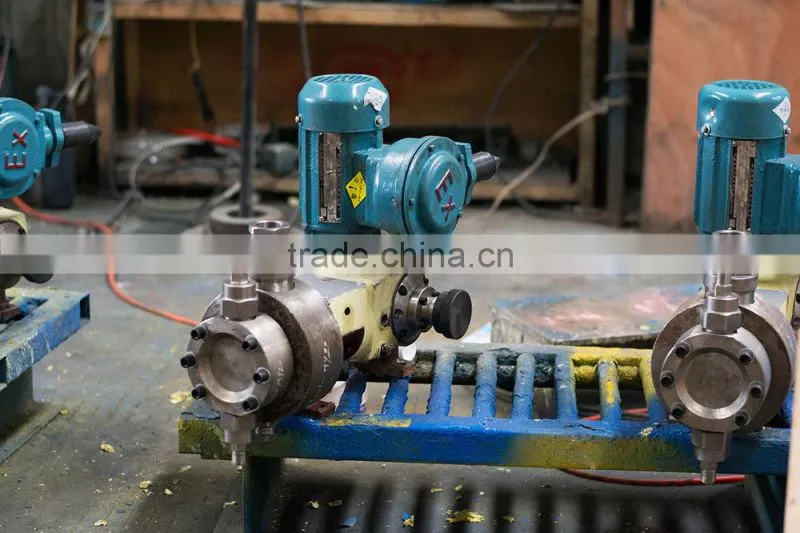

Dosing Pump Testing before delivery

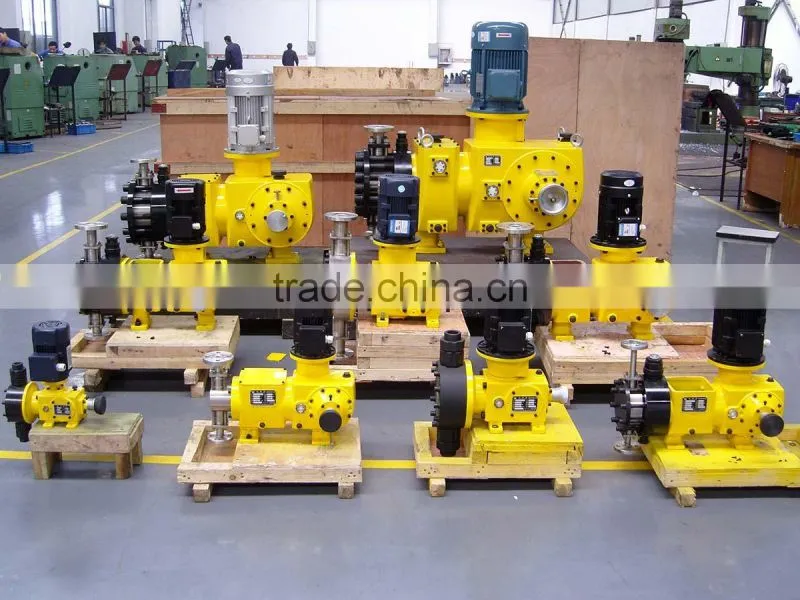

Various Hydraulic Dosing Pump from Gaode Equipment

Our Services

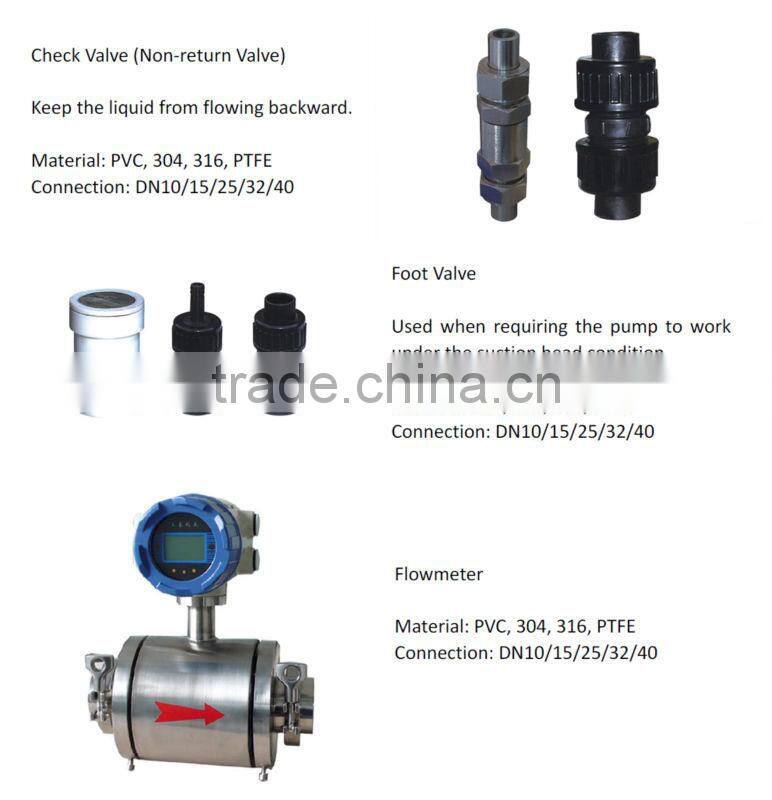

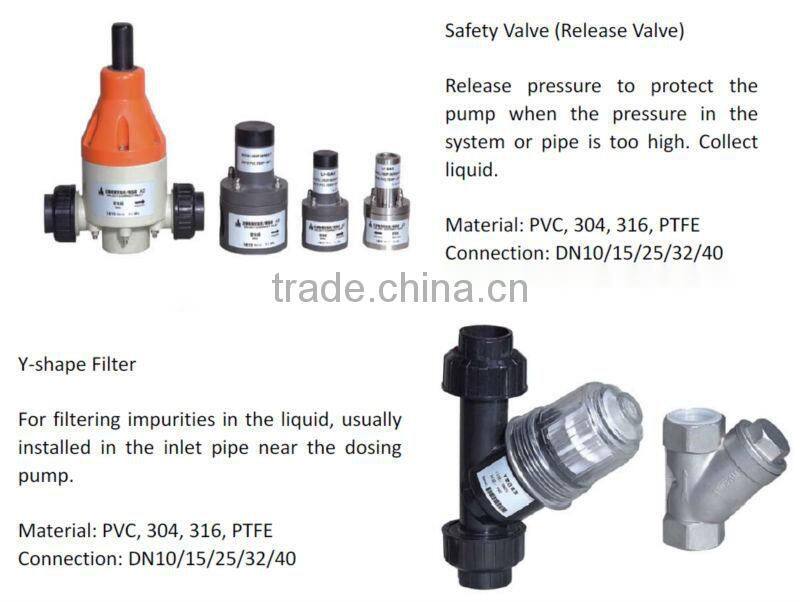

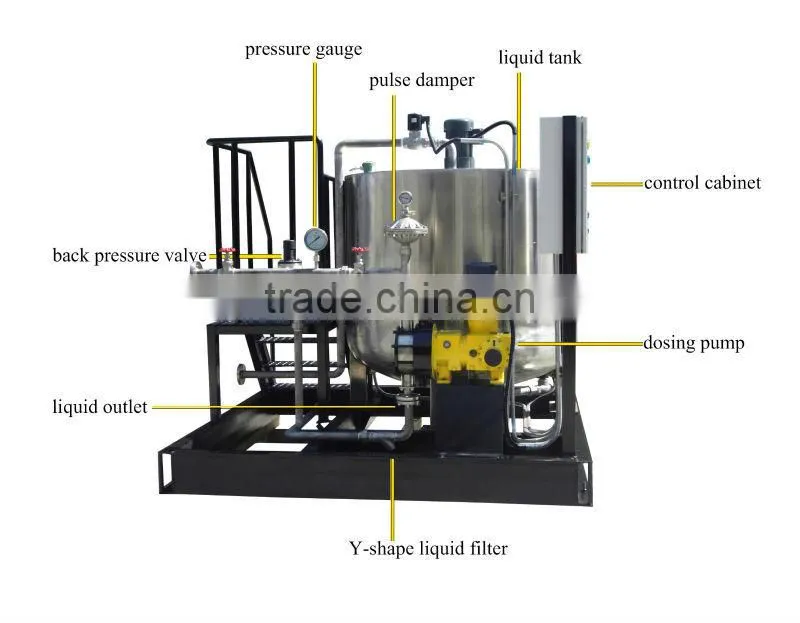

Main components or parts of Dosing Pumps System:

Technical Data

Dosing Pump Technical Data

J1-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 0.18 kW
J1-M-2/5	2	5
J1-M-3.2/3.2	3.2	3.2
J1-M-5/2.0	5	2
J1-M-8/1.3	8	1.3
J1-M-14/0.8	14	0.8
J1-M-10/5	10	5
J1-M-12.5	12.5	4
J1-M-16/3.2	16	3.2
J1-M-20/2.5	20	2.5
J1-M-25/2	25	2
J1-M-32/1.6	32	1.6
J1-M-40/1.3	40	1.3
J1-M-80/0.63	80	0.63
J1-M-125/0.4	125	0.4
J1-M-200/0.25	200	0.25

J2-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 0.37 kW	Motor 0.55 kW	Motor 0.75 kW
J2-M-5/16	5	16
J2-M-9/10	9	10
J2-M-18/6.3	18	6.3	16
J2-M-22/12.5	22	5		12.5
J2-M-25/4	25	4
J2-M-32/10	32	4	10
J2-M-50/6.3	50	2.5	6.3
J2-M-80/4	80	1.6	4
J2-M-100/3.2	100	1.3		3.2
J2-M-160/2	160	0.8		2
J2-M-250/1.3	250		1.3
J2-M-500/0.63	500		0.63
J2-M-800/0.4	800		0.4
J2-M-1000/0.32	1000		0.32

J3-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 1.1 kW	Motor 1.5 kW
J3-M-22/20	22	12.5	20
J3-M-28/20	28	10	20
J3-M-63/12	63	5	12.5
J3-M-80/10	80	4	10
J3-M-100/8	100	3.2	8
J3-M-125/6.3	125	2.5	6.3
J3-M-160/5	160	2	5
J3-M-200/4	200	1.6	4
J3-M-400/2	400	0.8	2
J3-M-500/1.6	500	0.63	1.6
J3-M-800/1	800	0.4	1
J3-M-1000/0.8	1000	0.32	0.8
J3-M-1600/0.5	1600	0.25	0.63
J3-M-2000/0.4	2000		0.4

J4-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 1.5 kW	Motor 2.2 kW
J4-M-70/20	70	10	20
J4-M-90/16	90	8	16
J4-M-120/10	120	6.3	12.5
J4-M-150/10	150	5	10
J4-M-200/8	200	4	8
J4-M-250/6.3	250	3.2	6.3
J4-M-320/5	320	2.5	5
J4-M-400/4	400	2	4
J4-M-500/3.2	500	1.6	3.2
J4-M-630/2.5	630	1.25	2.5
J4-M-800/2	800	1	2
J4-M-1000/1.6	1000	0.8	1.6
J4-M-1250/1.25	1250	0.63	1.25
J4-M-1600/1	1600	0.5	1
J4-M-2000/0.8	2000	0.4	0.8
J4-M-2500/0.63	2500	0.32	0.63
J4-M-3200/0.5			0.5
J4-M-4000/0.4			0.4

J5-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 5.5 kW	Motor 7.5 kW
J5-M-170/20	170	16	20
J5-M-220/20	220	12.5	20
J5-M-300/20	300	10	20
J5-M-380/20	380	8	20
J5-M-500/16	500	6.3	16
J5-M-630/12.5	630	5	12.5
J5-M-800/10	800	4	10
J5-M-1000/8	1000	3.2	8
J5-M-1250/6.3	1250	2.5	6.3
J5-M-1600/5	1600	2	5
J5-M-2000/4	2000	1.6	4
J5-M-2500	2500	1.25	3.2
J5-M-3200	3200	1	2.5
J5-M-4000/2	4000	0.8	2
J5-M-5000/1.6	5000	0.63	1.6
J5-M-6300/1.25	6300	0.5	1.25

J6-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 11 kW	Motor 18.5 kW
J6-M-620/20	620	16	25
J6-M-780/20	780	12.5	20
J6-M-1000/16	1000	10	16
J6-M-1250/12.5	1250	8	12.5
J6-M-1600/10	1600	6.3	10
J6-M-2000/8	2000	5	8
J6-M-2500/6.3	2500	4	6.3
J6-M-3200/5	3200	3.2	5
J6-M-4000/4	4000	2.5	4
J6-M-5000/3.2	5000	2	3.2
J6-M-6300/2.5	6300	1.6	2.5
J6-M-8000/2	8000	1.25	2
J6-M-10000/1.6	10000	1	1.6
J6-M-12500/1.25	12500	0.8	1.25
J6-M-16000/1	16000	0.6	1

J7-M Series

Model	Flow (L/h)	Max. Pressure (Mpa)
Model	Flow (L/h)	Motor 18.5 kW	Motor 30 kW
J7-M-1600/20	1600	16	20
J7-M-2000/20	2000	12.5	20
J7-M-2500/16	2500	10	16
J7-M-3200/12.5	3200	8	12.5
J7-M-4000/10	4000	6.3	10
J7-M-5000/8	5000	5	8
J7-M-8000/5	8000	3.2	5
J7-M-10000/4	10000	2.5	4
J7-M-12500/3.2	12500	2	3.2
J7-M-16000/2.5	16000	1.6	2.5
J7-M-20000/2	20000	1.25	2
J7-M-25000/1.6	25000	1	1.6
J7-M-32000/1.25	32000	0.8	1.25
J7-M-40000/1	40000	0.63	1

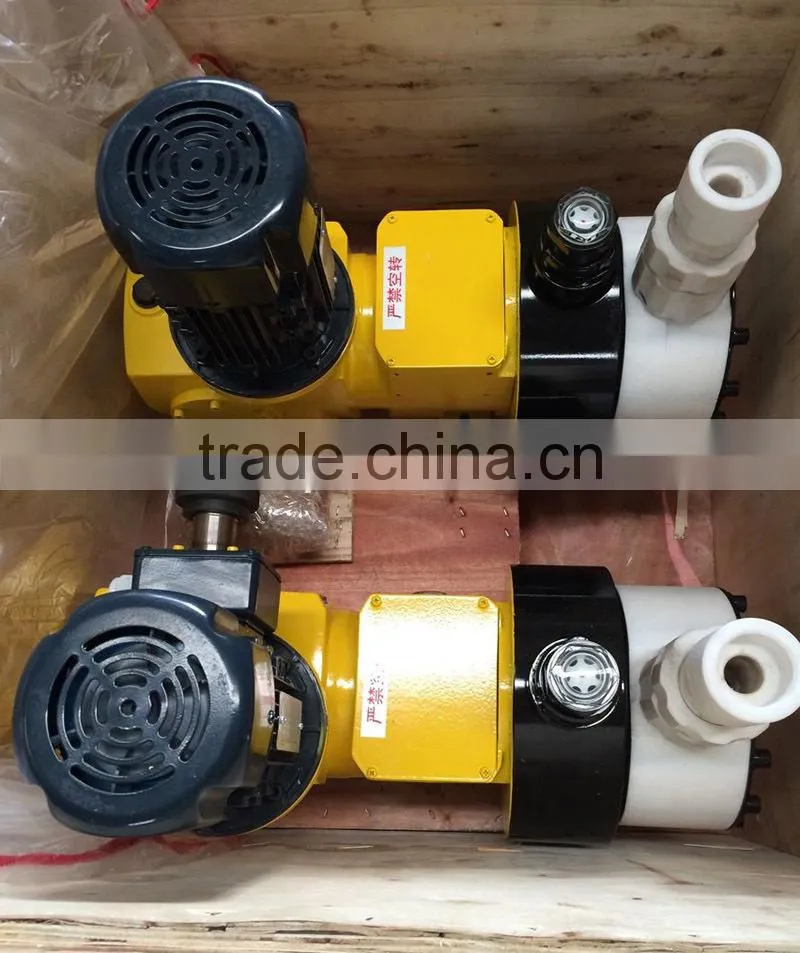

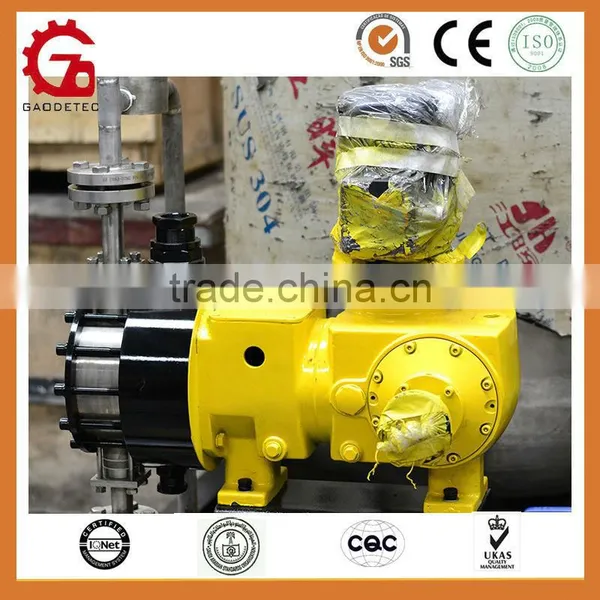

Packaging & Shipping

Dosing Pump and Delivery Sites

FAQ

What information is needed for suitable Dosing Pump?

1. The main chemical composition in the delivering liquid?
2. The flow (L/H) ?
3. The systerm back pressure (bar) ?
4. The tempurature ?
5. The viscosity ?
6. The concentration(mPass) ?
7.The controller ways, such as automatic control, external control signal(impulse type or analog type)?

Please feel free to contact us for other types of dosing pumps, such as plunger type, hydraulic diaphragm, mechanical diaphragm, pneumatic diaphragm....
